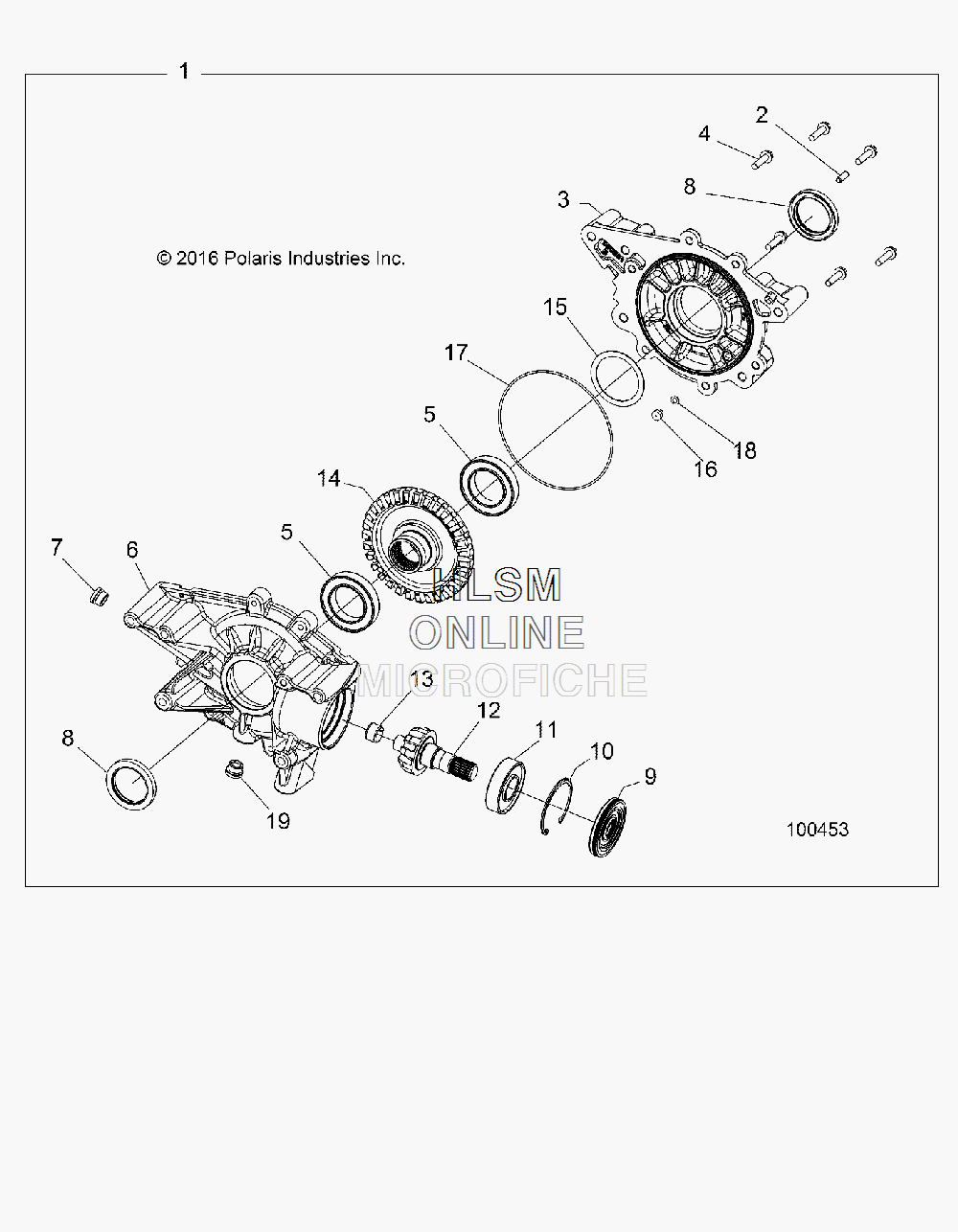

GEARCASE - REAR - INTERNAL COMPONENTS для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
11333620 ASM-GEARCASE,REAR [INCL. ALL]ASM-GEARCASE,REAR [INCL. ALL]
-
23233524 TUBE, VENTTUBE, VENT
-
33235952 COVER, LHCOVER, LH
-
43234114 BOLT, FLANGEBOLT, FLANGE
-
53233268 BEARING, BALLBEARING, BALL
-
63235951 GEARCASE, RIGHTGEARCASE, RIGHT
-
73233794 PLUGPLUG
-
83233878 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
93235658 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
103234158 RING, RETAININGRING, RETAINING
-
113233714 BEARING, BALLBEARING, BALL
-
123233881 SHAFT, PINION, 10TSHAFT, PINION, 10T
-
133233577 BEARING, PLAINBEARING, PLAIN
-
143235966 GEAR, 31TGEAR, 31T
-
153233581 SHIMSHIM
-
163233582 BUTTON, THRUSTBUTTON, THRUST
-
173235967 O-RINGO-RING
-
183233583 SHIMSHIM
-
193234529 PLUG, MAGNETICPLUG, MAGNETIC
