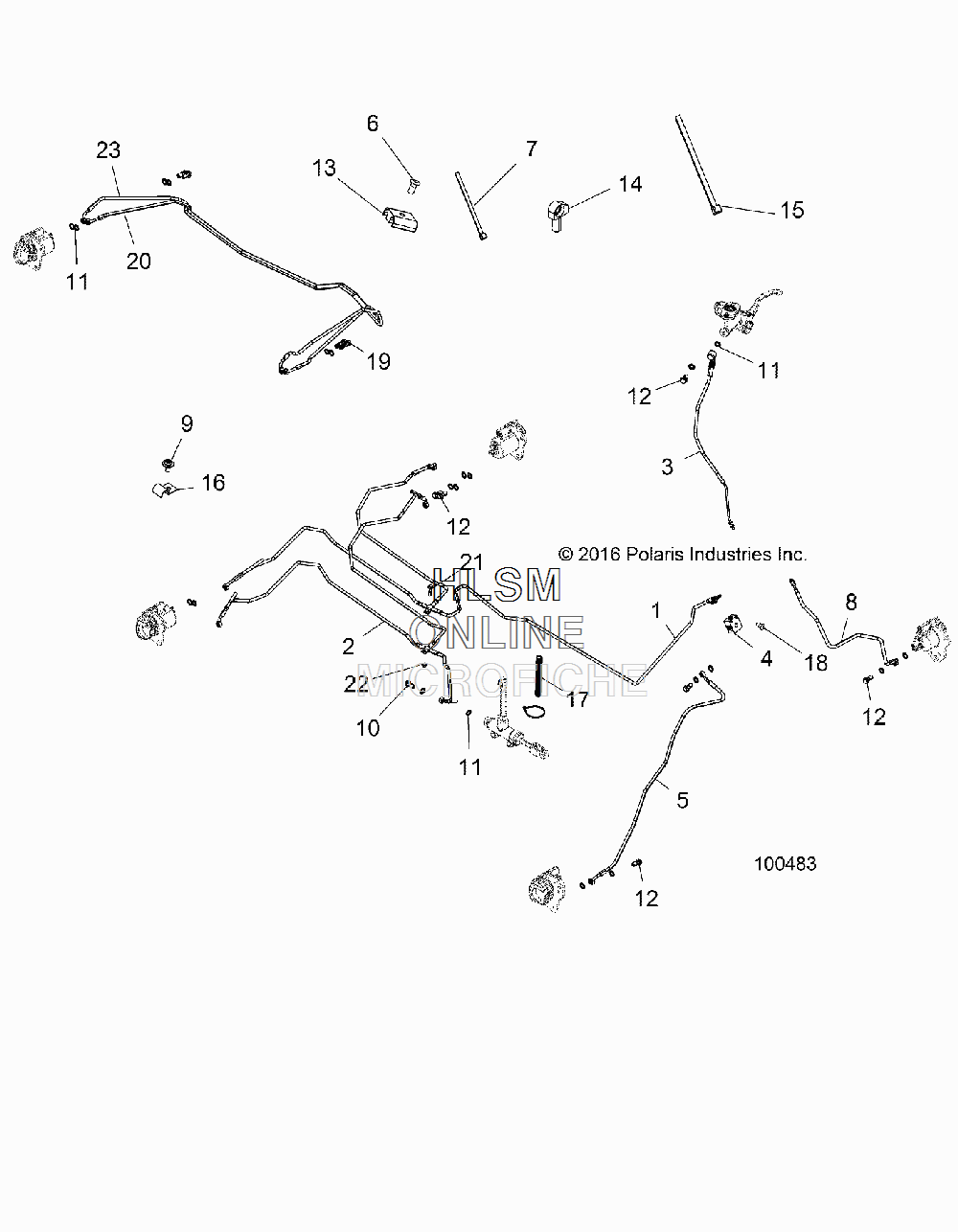

BRAKE LINES для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
11912400 LINE-BRAKE,AUX,T,90F,70B,70BLINE-BRAKE,AUX,T,90F,70B,70B
-
21912401 LINE-BRAKE,SV,T,20B,45B,45BLINE-BRAKE,SV,T,20B,45B,45B
-
31910913 LINE, BRAKE, PODLINE, BRAKE, POD
-
47052292 FITTING, CROSSFITTING, CROSS
-
51910839 LINE, BRAKE, RIGHT FRONTLINE, BRAKE, RIGHT FRONT
-
67517756 SCREWSCREW
-
77080138 CABLE TIECABLE TIE
-
81910838 LINE, BRAKE, LEFT FRONTLINE, BRAKE, LEFT FRONT
-
97512024 SCREWSCREW
-
101910958 BOLT, BANJOBOLT, BANJO
-
115413212 SEALSEAL
-
121910499 BOLT, BANJOBOLT, BANJO
-
137670126 CLIP, RETAININGCLIP, RETAINING
-
147670102 CLIPCLIP
-
157080492 CABLECABLE
-
167081940 CLIP, HALFCLIP, HALF
-
178360052-25 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
187512084 SCREWSCREW
-
191911009 BOLT-BANJO,M10X1.0,30GRIPBOLT-BANJO,M10X1.0,30GRIP
-
201912638 LINE-BRK,RR,HMC,58,70B,70B,330LINE-BRK,RR,HMC,58,70B,70B,330
-
217515153 SCR-HXFL-1/4-20X1.125 GR5 ZY3SCR-HXFL-1/4-20X1.125 GR5 ZY3
-
227542105 NUT-1/4-20 HEX-YNUT-1/4-20 HEX-Y
-
231912638 LINE-BRK,RR,HMC,58,70B,70B,345LINE-BRK,RR,HMC,58,70B,70B,345
