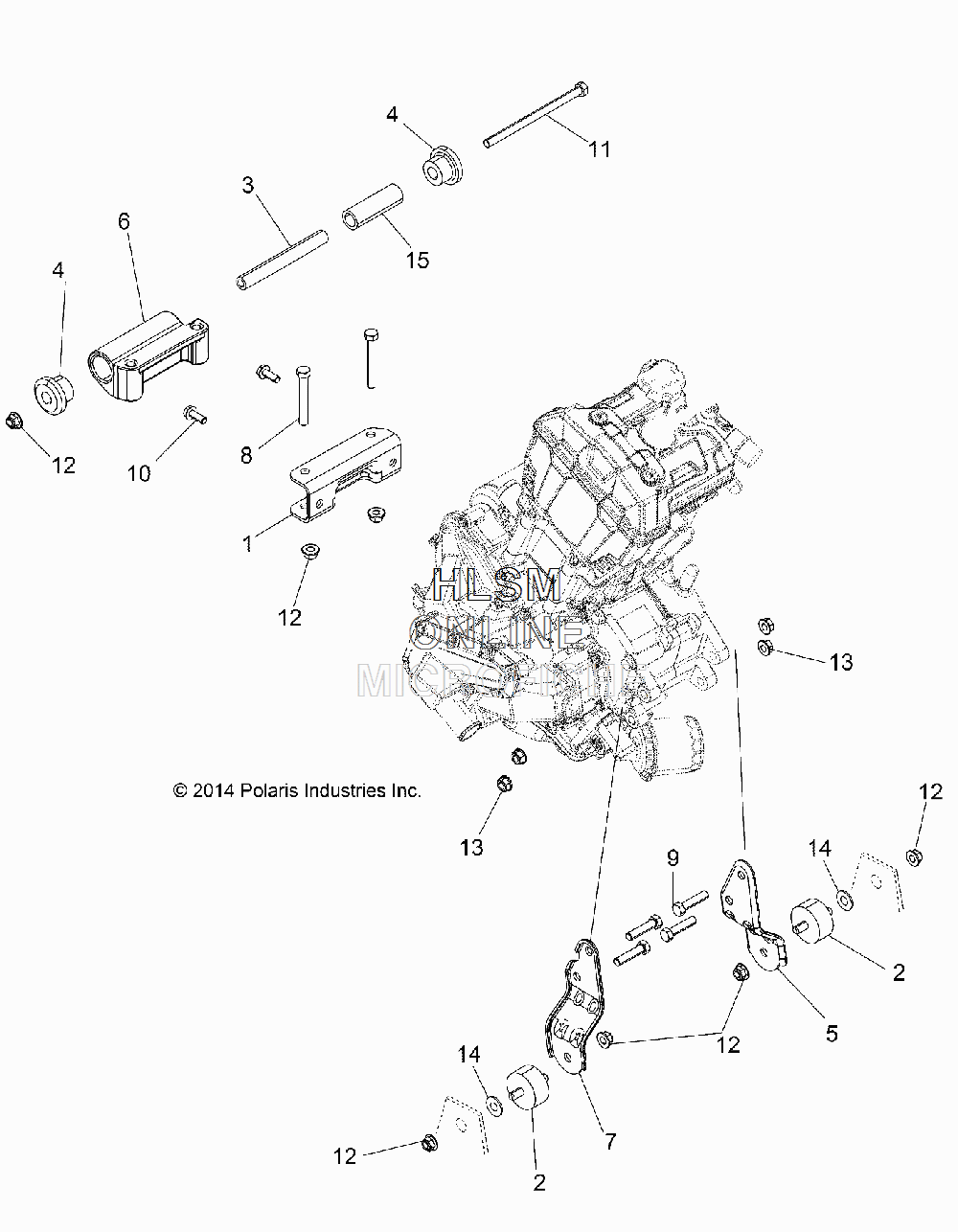

ENGINE - MOUNTING для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
15256926 MOUNT, ENGINE, REARMOUNT, ENGINE, REAR
-
23022071 ISOLATORISOLATOR
-
35337887 TUBE, ISOLATOR, REARTUBE, ISOLATOR, REAR
-
45415404 ISOLATOR, RUBBERISOLATOR, RUBBER
-
55259038 MOUNT, ENGINE, FRONT, LEFTMOUNT, ENGINE, FRONT, LEFT
-
65633144 MOUNT, ENGINE, REAR, CASTMOUNT, ENGINE, REAR, CAST
-
75259039 MOUNT, ENGINE, FRONT, RIGHTMOUNT, ENGINE, FRONT, RIGHT
-
87515417 SCREWSCREW
-
97515528 SCREWSCREW
-
107518364 BOLTBOLT
-
117518481 SCREWSCREW
-
127547263 NUT, FLANGE, LOCKNUT, FLANGE, LOCK
-
137547108 NUT, FLANGE, LOCKNUT, FLANGE, LOCK
-
147555761 WASHERWASHER
-
155415442 HOSE, ENGINE MOUNTHOSE, ENGINE MOUNT
