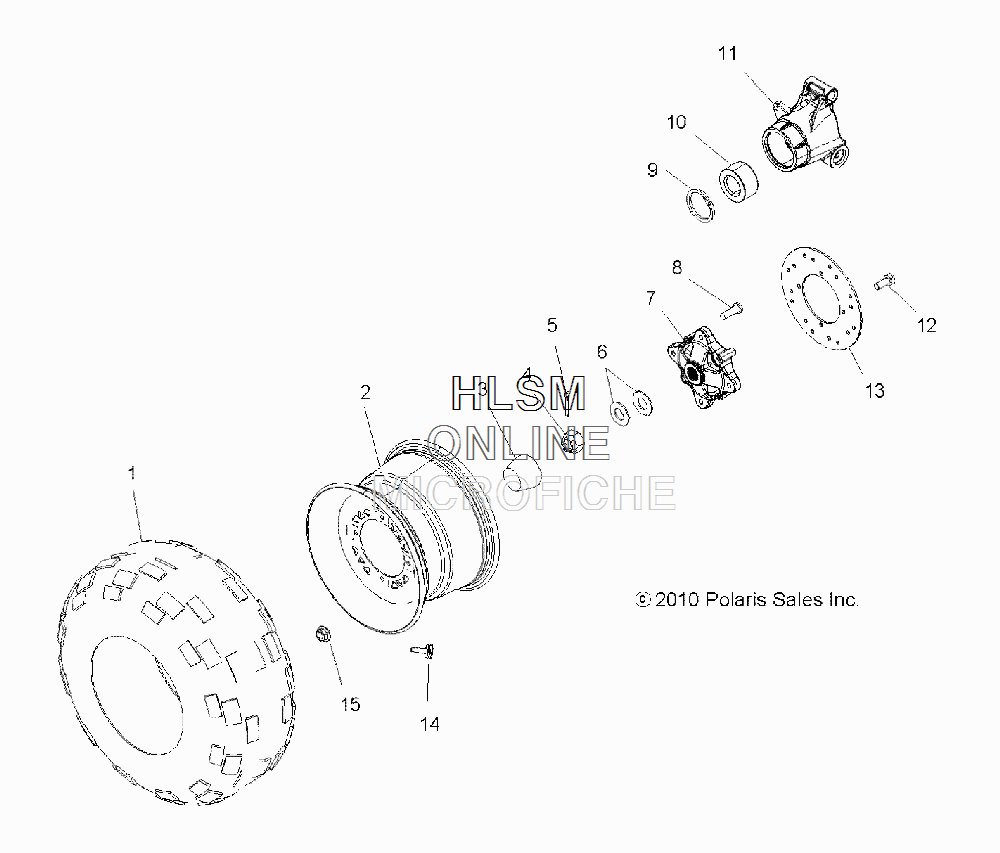

WHEEL - REAR W/BRAKE DISK для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
15415851 TIRE-RR,26X11R12,CARLISLE,E-MKTIRE-RR,26X11R12,CARLISLE,E-MK
-
21520992-067 WELD-RIM,REAR,12X8,10GA,BLKWELD-RIM,REAR,12X8,10GA,BLK
-
35413427 COVER, DUST, HUBCOVER, DUST, HUB
-
47547337 NUT, CASTLENUT, CASTLE
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75135113 HUB, REAR WHEELHUB, REAR WHEEL
-
87518378 STUDSTUD
-
97710440 RING, RETAININGRING, RETAINING
-
103514635 BEARING, WHEELBEARING, WHEEL
-
115139363 CARRIER, BEARING, WHEEL LEFTCARRIER, BEARING, WHEEL LEFT
-
115137436 CARRIER-BEARING,WHEEL RIGHTCARRIER-BEARING,WHEEL RIGHT
-
127518903 BOLTBOLT
-
135248250 DISC, BRAKE, REARDISC, BRAKE, REAR
-
141525017 VALVE, RIMVALVE, RIM
-
157547237 NUT, FLANGENUT, FLANGE
