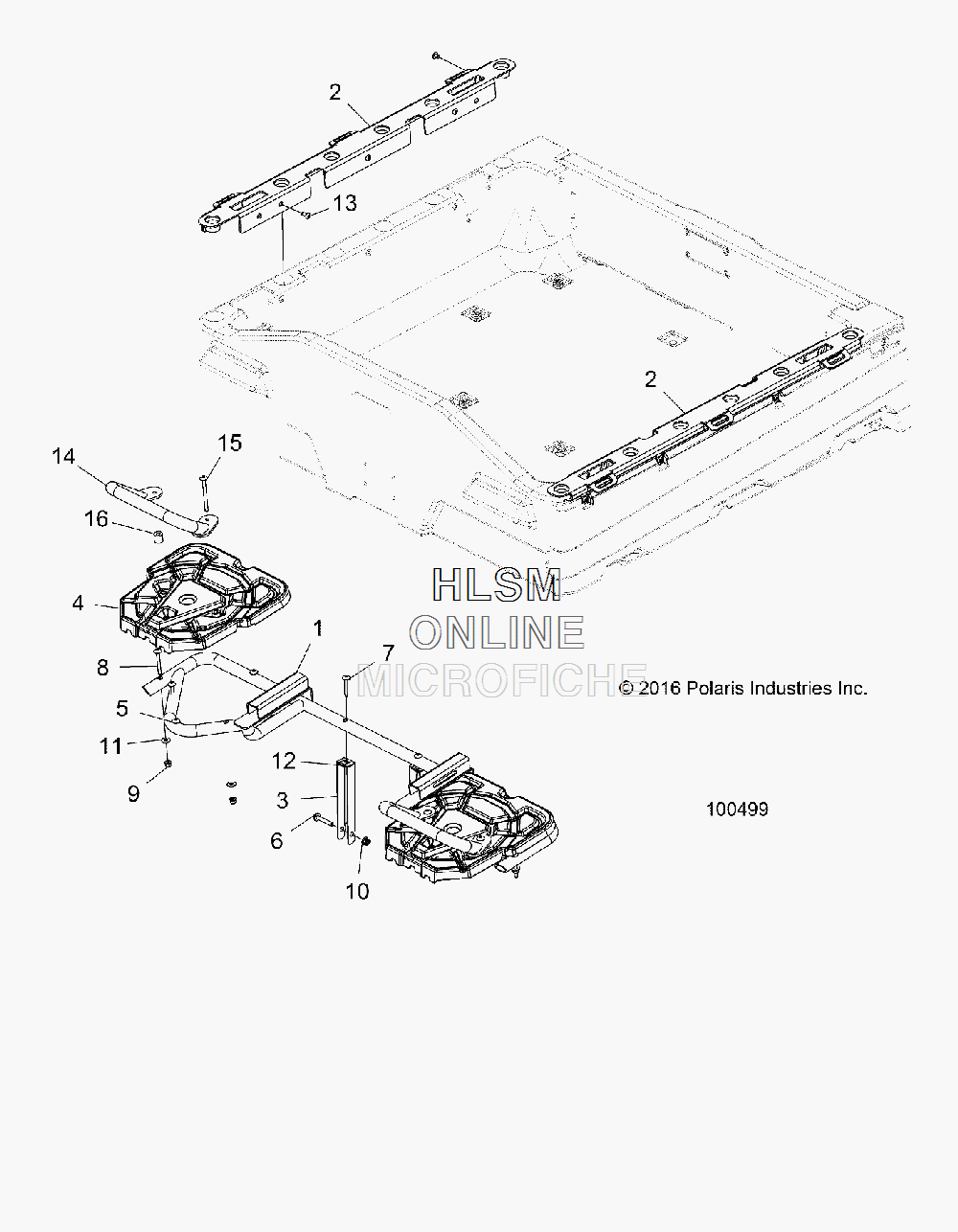

REAR BOX W/ SIDE RAILS для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
11022375-458 WELD-RACK,REAR,6X6,TRC,M.BLKWELD-RACK,REAR,6X6,TRC,M.BLK
-
21022329-458 WELD-BOX SIDE RAIL,L & R,6X6,BLKWELD-BOX SIDE RAIL,L & R,6X6,BLK
-
35259548-458 BRKT-SUPPORT,REAR RACK,M.BLKBRKT-SUPPORT,REAR RACK,M.BLK
-
45452618-070 COVER-RACK,REAR,6X6,BLKCOVER-RACK,REAR,6X6,BLK
-
57518280 SCR-1/4-20X.75,TR/TX-MSCR-1/4-20X.75,TR/TX-M
-
67518341 SCR-HXFL-5/16-18X0.75 GR5 ZY3SCR-HXFL-5/16-18X0.75 GR5 ZY3
-
77518504 SCR-1/4-20X1.75 TR/TX-MSCR-1/4-20X1.75 TR/TX-M
-
87520042 SCR-1/4-20 X 2.375,TR/TX-MSCR-1/4-20 X 2.375,TR/TX-M
-
97542153 NUT-1/4-20 NYLOC FLANGED-YNUT-1/4-20 NYLOC FLANGED-Y
-
107542343 NUT-5/16-18 HX FLG NL-YNUT-5/16-18 HX FLG NL-Y
-
117558302 WASHER-.312 X .734 X .065-ZWASHER-.312 X .734 X .065-Z
-
127547494 NUT-1/4-20 NYLOC FLANGED-BNUT-1/4-20 NYLOC FLANGED-B
-
137518905 SCR-1/4-20X5/8,TORX,TRUSSSCR-1/4-20X5/8,TORX,TRUSS
-
141022372-458 WELD-HANDGRIP,PASS,6X6,M.BLKWELD-HANDGRIP,PASS,6X6,M.BLK
-
157520475 SCR-PHTH-1/4-20X3.25,ZBSCR-PHTH-1/4-20X3.25,ZB
-
165339706 SPACER-D18XD8,0XH19,ZNC,BLKSPACER-D18XD8,0XH19,ZNC,BLK
