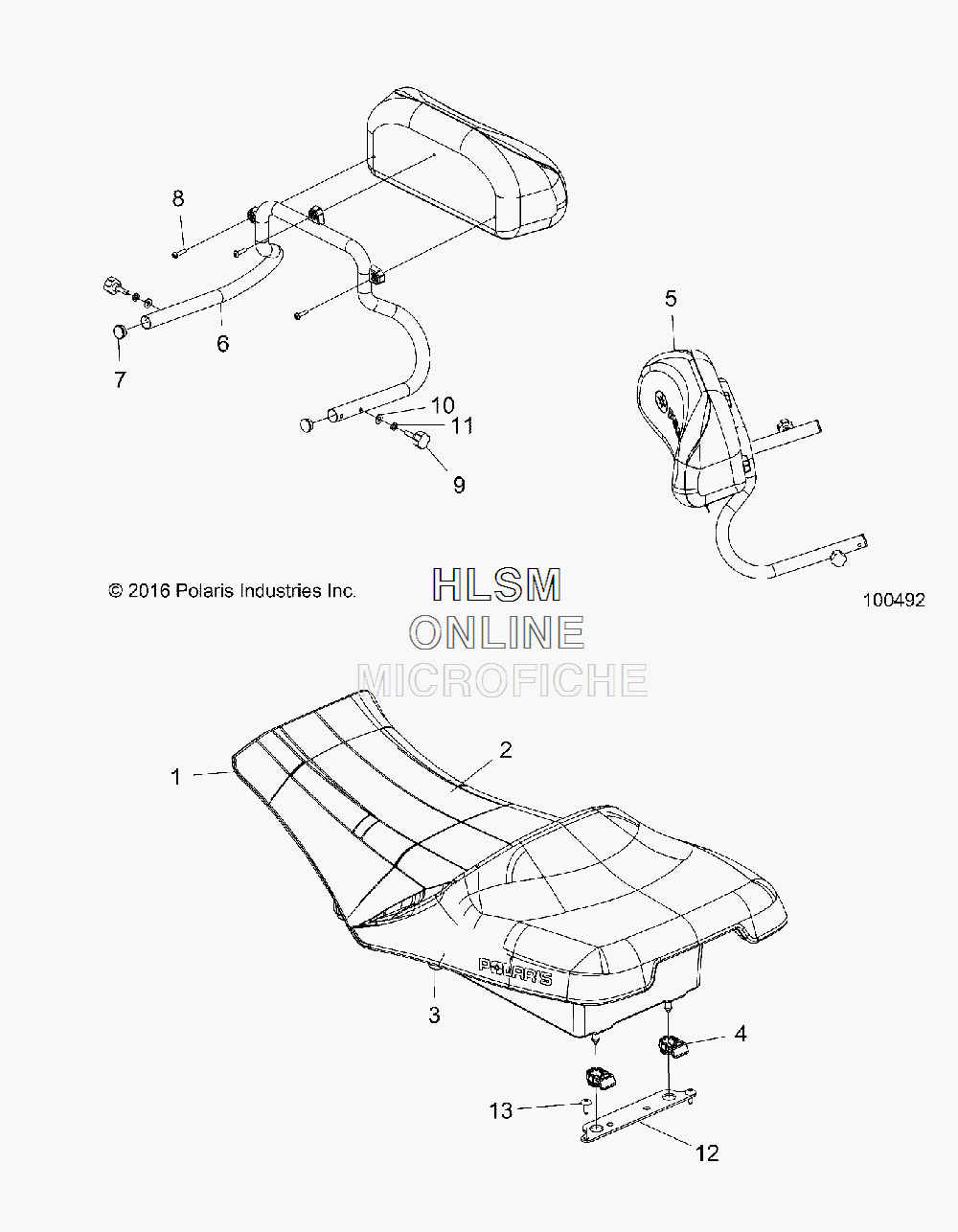

SEAT ASM. для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
12685589 ASM-SEAT,OPERATOR,TOURING [INCL. 1-3]ASM-SEAT,OPERATOR,TOURING [INCL. 1-3]
-
22685590 ASM-COVER,SEAT,TRG,WHITE DECALASM-COVER,SEAT,TRG,WHITE DECAL
-
35412067 BUMPER-RUBBERBUMPER-RUBBER
-
45415539 GROMMET-SEAT LATCHGROMMET-SEAT LATCH
-
52881795 K-BACKREST,DRV,6X6,TRACTOR [INCL. 5-11]K-BACKREST,DRV,6X6,TRACTOR [INCL. 5-11]
-
52687155 ASM-CUSHION,BACKREST,UTE,TRCASM-CUSHION,BACKREST,UTE,TRC
-
61022448-458 WELD-TUBE,BKRST,6X6,TRC,M.BLKWELD-TUBE,BKRST,6X6,TRC,M.BLK
-
75453098 CAP-PLUG,OD 25.4X1.57MMCAP-PLUG,OD 25.4X1.57MM
-
87518535 SCR-TXPHM6X1.0X25 8.8 RIESCR-TXPHM6X1.0X25 8.8 RIE
-
97520474 KNOB-MAX DIA 31MM,M8,1.25X25KNOB-MAX DIA 31MM,M8,1.25X25
-
107556970 WSHR-8.4X16X1.6 ZBWSHR-8.4X16X1.6 ZB
-
117556971 WSHR-LOCK-M8X14.8X2 ZBWSHR-LOCK-M8X14.8X2 ZB
-
125261865 BRKT-SEAT GROMMETBRKT-SEAT GROMMET
-
137518280 SCR-1/4-20X.75,TR/TX-MSCR-1/4-20X.75,TR/TX-M
