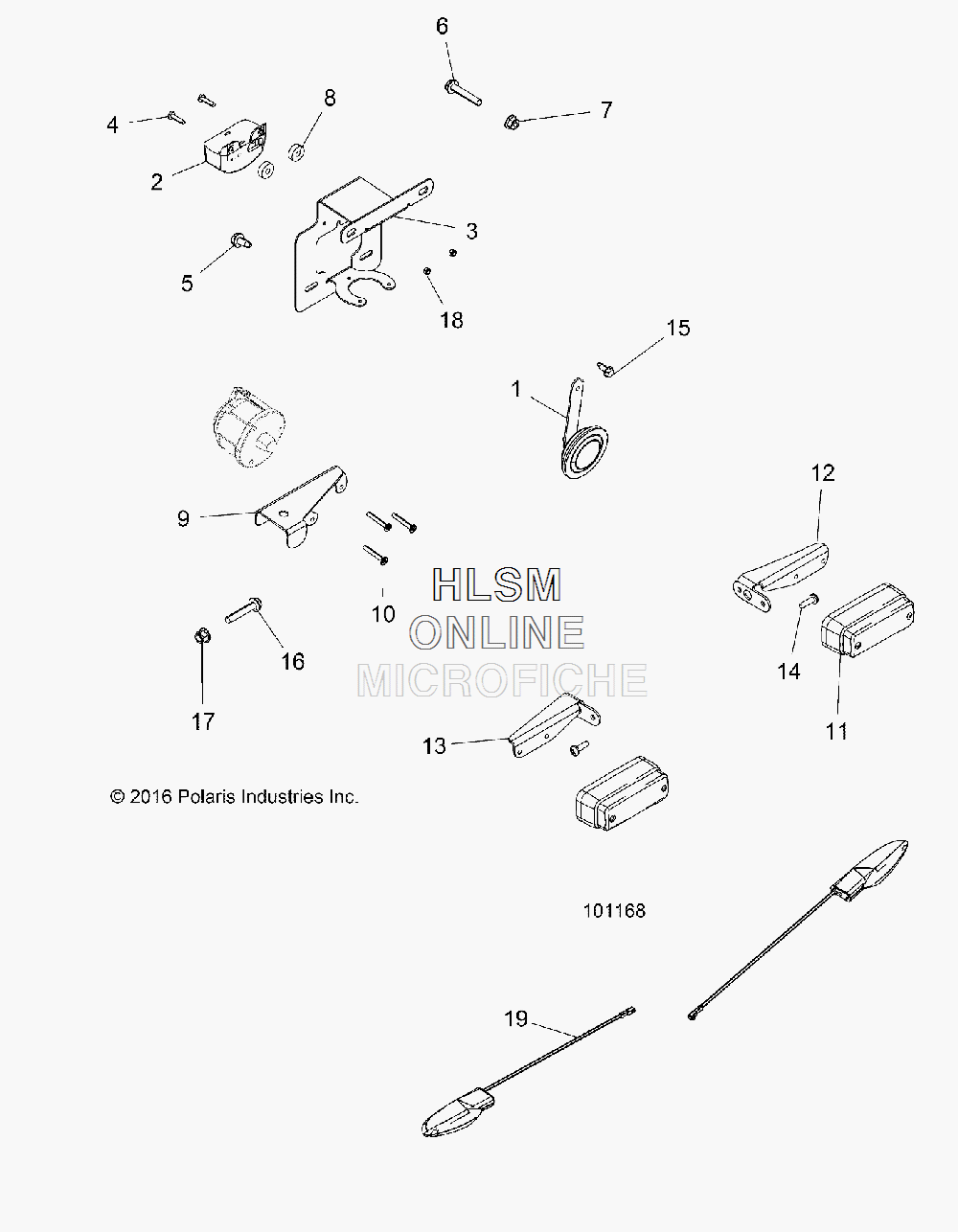

TURN SIGNALS AND HORN для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
14011579 HORN-DISCHORN-DISC
-
22411278 LIGHT-LICENSE PLATE,TRACTR,BLKLIGHT-LICENSE PLATE,TRACTR,BLK
-
35262516-458 BRKT-LIC.PLATE,RR,6X6,TR,M.BLK [TO 7/4/2016]BRKT-LIC.PLATE,RR,6X6,TR,M.BLK [TO 7/4/2016]
-
35263775-458 BRK-LIC PLT,RR,6X6,TRL-SKT,M.B [FROM 7/4/2016]BRK-LIC PLT,RR,6X6,TRL-SKT,M.B [FROM 7/4/2016]
-
47512018 SCR-#10-24X3/4,PN/TR RD-TORX-YSCR-#10-24X3/4,PN/TR RD-TORX-Y
-
57515399 SCR-5/16-18X3/4 TFM HW T/R-YSCR-5/16-18X3/4 TFM HW T/R-Y
-
67518341 SCR-HXFL-5/16-18X0.75 GR5 ZY3SCR-HXFL-5/16-18X0.75 GR5 ZY3
-
77542343 NUT-5/16-18 HX FLG NL-YNUT-5/16-18 HX FLG NL-Y
-
87555932 WASHER-.28 X.75 X.25-NYLON-BWASHER-.28 X.75 X.25-NYLON-B
-
95262672-458 BRKT-TRAIL.SOCK,SPM,6X6,TR,BLK [TO 7/4/2016]BRKT-TRAIL.SOCK,SPM,6X6,TR,BLK [TO 7/4/2016]
-
107512025 SCR-10-24X1.25TFM PN TRX TRI-YSCR-10-24X1.25TFM PN TRX TRI-Y
-
112411271 SIGNAL-TURN,FRONT,TRACTOR [TO 7/4/2016]SIGNAL-TURN,FRONT,TRACTOR [TO 7/4/2016]
-
125260171-458 BRKT-SIGNAL LIGHT,LH,M.BLK [TO 7/4/2016]BRKT-SIGNAL LIGHT,LH,M.BLK [TO 7/4/2016]
-
135260172-458 BRKT-SIGNAL LIGHT,RH,M.BLK [TO 7/4/2016]BRKT-SIGNAL LIGHT,RH,M.BLK [TO 7/4/2016]
-
147518546 SCR-M6X1.0X20MM,TX,PH,8.8-BSCR-M6X1.0X20MM,TX,PH,8.8-B
-
157517386 SCREWSCREW
-
167517696 SCR-HXFL-M8X1.25X30 10.9 ZPBSCR-HXFL-M8X1.25X30 10.9 ZPB
-
177547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
187546601 NUTNUT
-
192413531 SIGNAL-TURN,FRONT,TR [FROM 7/4/2016]SIGNAL-TURN,FRONT,TR [FROM 7/4/2016]
