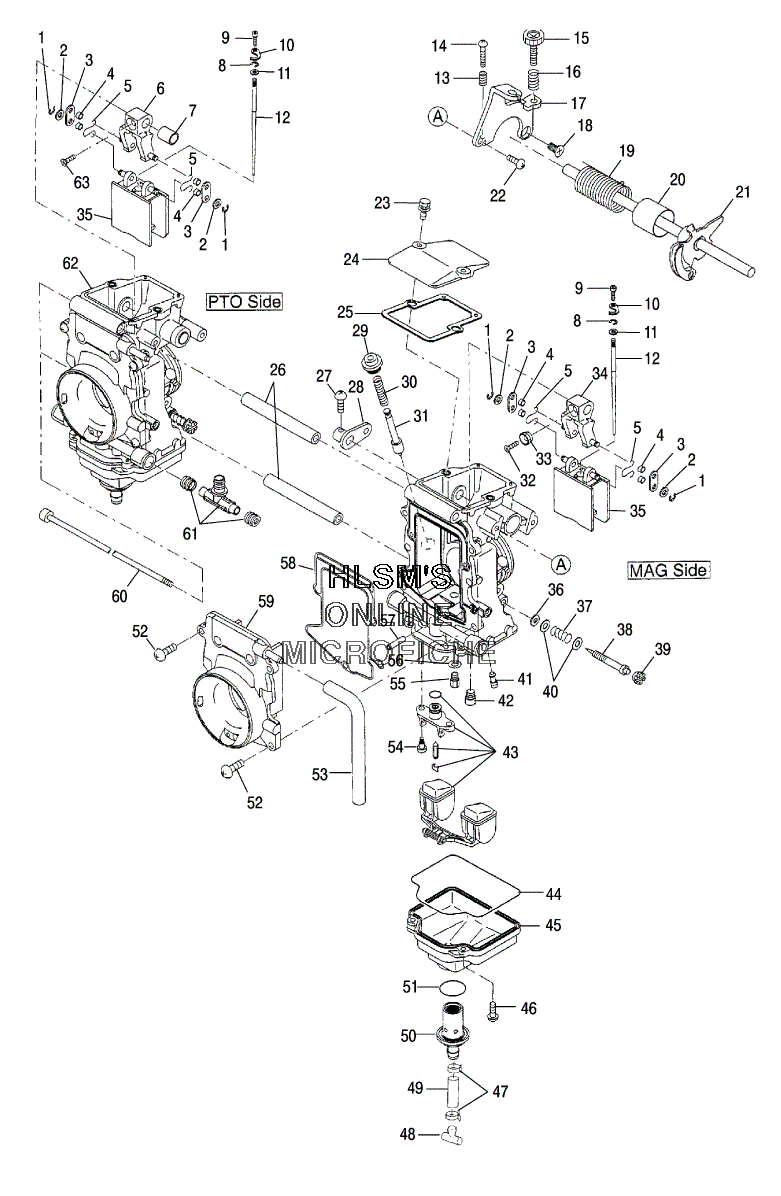

CARBURETOR ASSEMBLY для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13130847 E-RINGE-RING
-
23130846 WASHER,PACKINGWASHER,PACKING
-
33130857 PLATEPLATE
-
43130845 RINGRING
-
53130856 CLIPCLIP
-
63130855 LEVER ASM.LEVER ASM.
-
73140032 RINGRING
-
83130868 E-RINGE-RING
-
93130844 SCREWSCREW
-
103130843 PLATEPLATE
-
113130867 PACKINGPACKING
-
123131273 NEEDLE-JET,54 (J8-9DFY01-54)NEEDLE-JET,54 (J8-9DFY01-54)
-
133130817 SPRINGSPRING
-
143130816 SCREWSCREW
-
153130812 ADJUSTERADJUSTER
-
163130811 SPRINGSPRING
-
173131380 BRACKETBRACKET
-
183130810 SCREWSCREW
-
193130950 SPRINGSPRING
-
203130853 RINGRING
-
213131281 ASM-SHAFTASM-SHAFT
-
223130809 SCREWSCREW
-
233130951 SCREWSCREW
-
243130976 CAP-TOPCAP-TOP
-
253130871 GASKETGASKET
-
263131274 SPACERSPACER
-
273130991 SCREWSCREW
-
283131282 ASM-LEVERASM-LEVER
-
293131276 HOLDER-GUIDEHOLDER-GUIDE
-
303131277 SPRINGSPRING
-
313131278 ASM-PLUNGERASM-PLUNGER
-
323130850 SCREWSCREW
-
333130848 RINGRING
-
343130849 LEVER ASM.LEVER ASM.
-
353131252 PISTON,VALVE 2.0 (2.0)PISTON,VALVE 2.0 (2.0)
-
363130835 PACKINGPACKING
-
373130836 SPRINGSPRING
-
383130987 ADJUSTERADJUSTER
-
393130986 CAPCAP
-
403130837 WASHERWASHER
-
413130067 JET,PILOT,#40(10)JET,PILOT,#40(10)
-
423130769 JET,STARTER,#VM11/22-145JET,STARTER,#VM11/22-145
-
433130859 FLOAT ASM.FLOAT ASM.
-
443130861 O-RINGO-RING
-
453130858 FLOAT,BODYFLOAT,BODY
-
463130824 SCREWSCREW
-
477080003 CLAMP,HOSE(10)CLAMP,HOSE(10)
-
485431893 PLUG,TRAPPLUG,TRAP
-
495411708 HOSE,WATERTRAP,5/16,45ШHOSE,WATERTRAP,5/16,45Ш
-
503130862 NIPPLE,DRAIN SCREWNIPPLE,DRAIN SCREW
-
513130863 O-RINGO-RING
-
523130825 SCREWSCREW
-
533131280 HOSEHOSE
-
543130860 SCREWSCREW
-
553130139 JET,MAIN,HX.HD#360(10)JET,MAIN,HX.HD#360(10)
-
563130949 WASHER (10)WASHER (10)
-
573131203 AIR JET-PILOT,0.9AIR JET-PILOT,0.9
-
583130870 O-RING,AIR FUNNELO-RING,AIR FUNNEL
-
593130975 ASM.,FUNNELASM.,FUNNEL
-
603131275 BOLTBOLT
-
613131279 ASM-NIPPLEASM-NIPPLE
-
623131560 ASM-CABURETOR (INCL. ALL)ASM-CABURETOR (INCL. ALL)
-
633130854 SCREWSCREW
