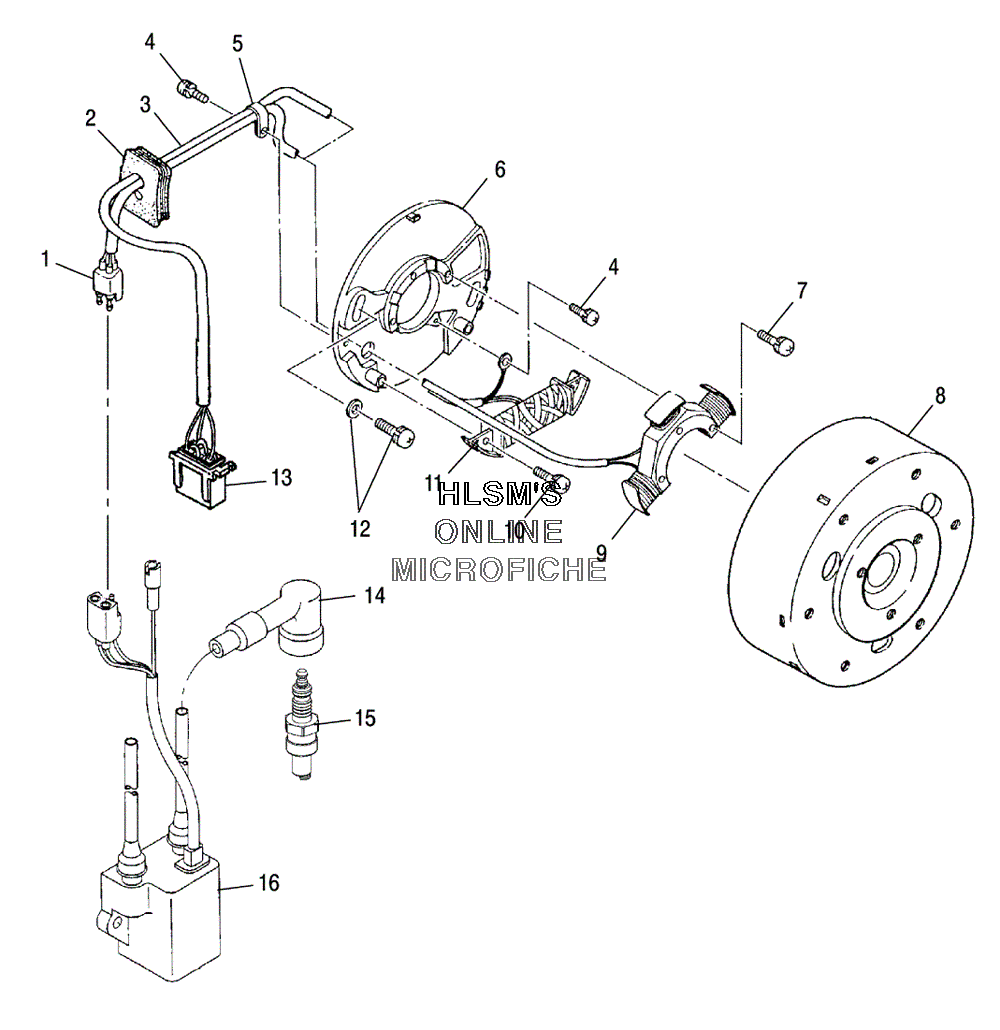

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13083909 COUPLERCOUPLER
-
23082969 GROMMETGROMMET
-
33087007 HARNESS-WIRE (INCL. 2)HARNESS-WIRE (INCL. 2)
-
43081260 ASM.,SCREW & WASHER(10)ASM.,SCREW & WASHER(10)
-
53081296 CLAMPCLAMP
-
63087004 ASM-PLATE (INCL. 1-7,9-11,13)ASM-PLATE (INCL. 1-7,9-11,13)
-
63083987 PLATE, COILPLATE, COIL
-
73082365 ASM.,SCREW AND WASHER(10)ASM.,SCREW AND WASHER(10)
-
83087005 ASM-FLYWHEELASM-FLYWHEEL
-
93083991 STATOR 1STATOR 1
-
103083423 ASM.,SCREW & WASHERASM.,SCREW & WASHER
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 ASM.,SCREW & WASHER(10)ASM.,SCREW & WASHER(10)
-
133081513 COUPLER,MALECOUPLER,MALE
-
144020129 RESISTOR PLUG CAPRESISTOR PLUG CAP
-
153070166 SPARKPLUG, RN3C(4)SPARKPLUG, RN3C(4)
-
163087006 COIL-IGNITIONCOIL-IGNITION
