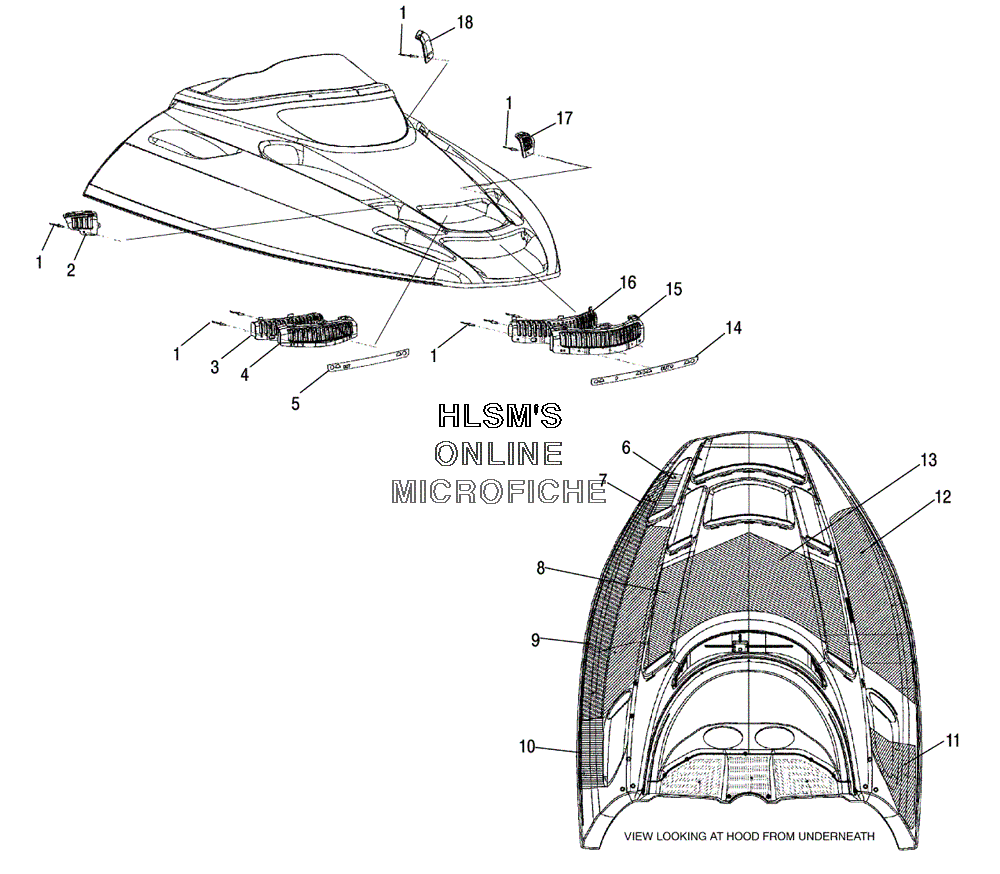

HOOD - FOAM/FOIL для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
17661142 RIVET-3/16(.44-.75)-LF-AL-Y-MG(RIVET-3/16(.44-.75)-LF-AL-Y-MG(
-
25434196-070 CLOSURE-HOOD,SIDE (BLACK/RIGHT)CLOSURE-HOOD,SIDE (BLACK/RIGHT)
-
35434197-070 BACKER-HOOD CLOSURE,UPPER (BLACK)BACKER-HOOD CLOSURE,UPPER (BLACK)
-
45434198-070 CLOSURE-HOOD,UPPER (BLACK)CLOSURE-HOOD,UPPER (BLACK)
-
55246028 REATAINER-CLOSURE,UPPERREATAINER-CLOSURE,UPPER
-
65812424 FOIL,LOUVER (RIGHT)FOIL,LOUVER (RIGHT)
-
75812061 FOIL,TAPE,4X4FOIL,TAPE,4X4
-
85812107 FOIL (RIGHT)FOIL (RIGHT)
-
95812106 FOIL (RIGHT)FOIL (RIGHT)
-
105810345 FOIL,TAPEFOIL,TAPE
-
115812270 FOAM,REAR (LEFT)FOAM,REAR (LEFT)
-
125812286 FOAM,FRONT (LEFT)FOAM,FRONT (LEFT)
-
135812007 FOAM,CENTERFOAM,CENTER
-
145246029 RETAINER-CLOSURE,LOWERRETAINER-CLOSURE,LOWER
-
155434199-070 CLOSURE-HOOD,LOWER (BLACK)CLOSURE-HOOD,LOWER (BLACK)
-
165434201-070 BACKER-HOOD CLOSURE,LOWER (BLACK)BACKER-HOOD CLOSURE,LOWER (BLACK)
-
175434195-070 CLOSURE-HOOD,SIDE (BLACK/LEFT)CLOSURE-HOOD,SIDE (BLACK/LEFT)
-
185434223-070 CLOSURE-HOOD,UPPER (BLACK/LEFT)CLOSURE-HOOD,UPPER (BLACK/LEFT)
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- • HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN #1
- NOSEPAN #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- WATER PUMP
- WINDSHIELD/GUAGES/HOOD RETAINER
