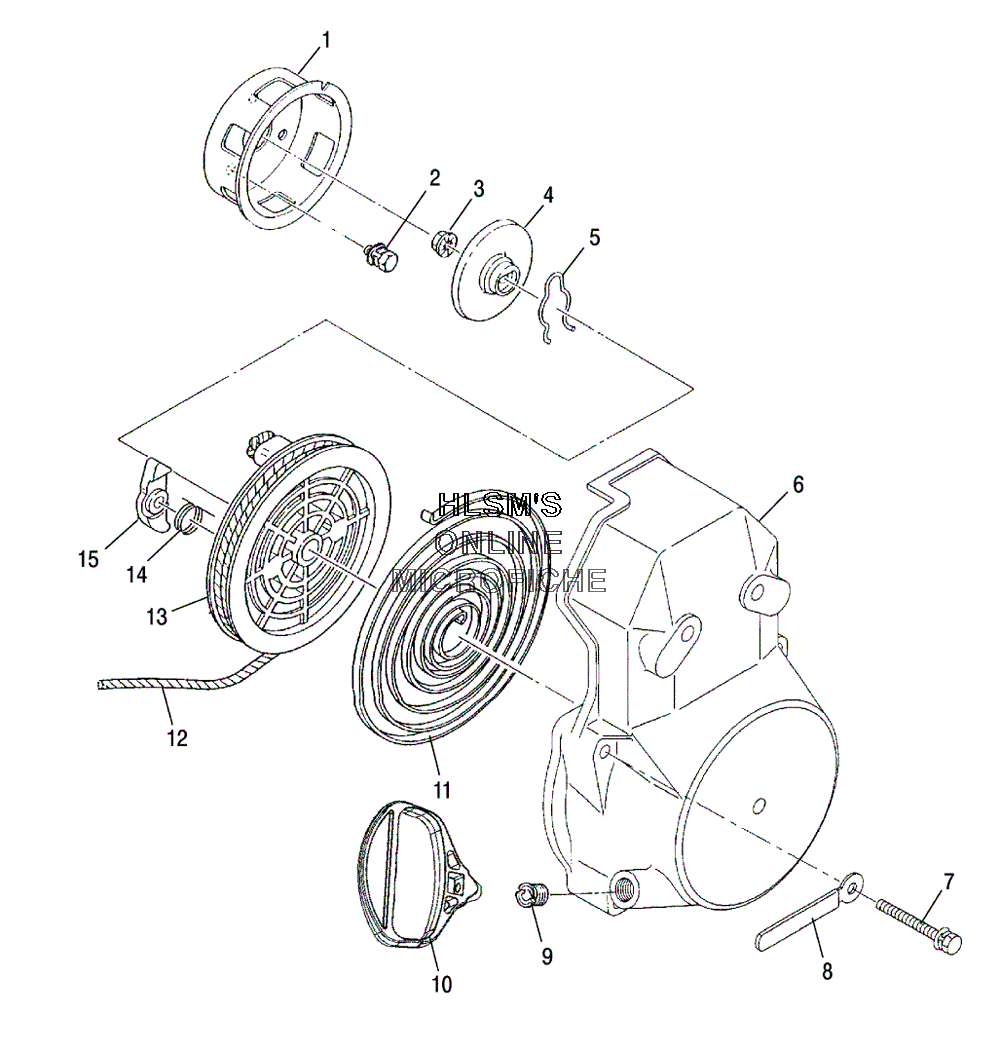

STARTER - RECOIL ASSEMBLY для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13083312 PULLEY, STARTINGPULLEY, STARTING
-
23084224 BOLT & WASHER ASM.BOLT & WASHER ASM.
-
33083381 NUT, FLANGE(10)NUT, FLANGE(10)
-
43083464 PLATE, FRICTIONPLATE, FRICTION
-
53083379 SPRING, FRICTIONSPRING, FRICTION
-
63087009 STARTER-RECOIL (INCL. 3-6,9-15)STARTER-RECOIL (INCL. 3-6,9-15)
-
63087010 CASE-STARTERCASE-STARTER
-
73083382 BOLT & WASHER ASM.BOLT & WASHER ASM.
-
83083384 CLAMPCLAMP
-
93083107 GUIDE-ROPEGUIDE-ROPE
-
105431499-070 HANDLE-RECOIL (BLACK)HANDLE-RECOIL (BLACK)
-
113083376 SPRING, SPIRALSPRING, SPIRAL
-
122870621 ROPE,100 FT,NYL.STARTERROPE,100 FT,NYL.STARTER
-
133083377 ASM.,REELASM.,REEL
-
143083463 SPRING, RETURNSPRING, RETURN
-
153083378 RATCHETRATCHET
