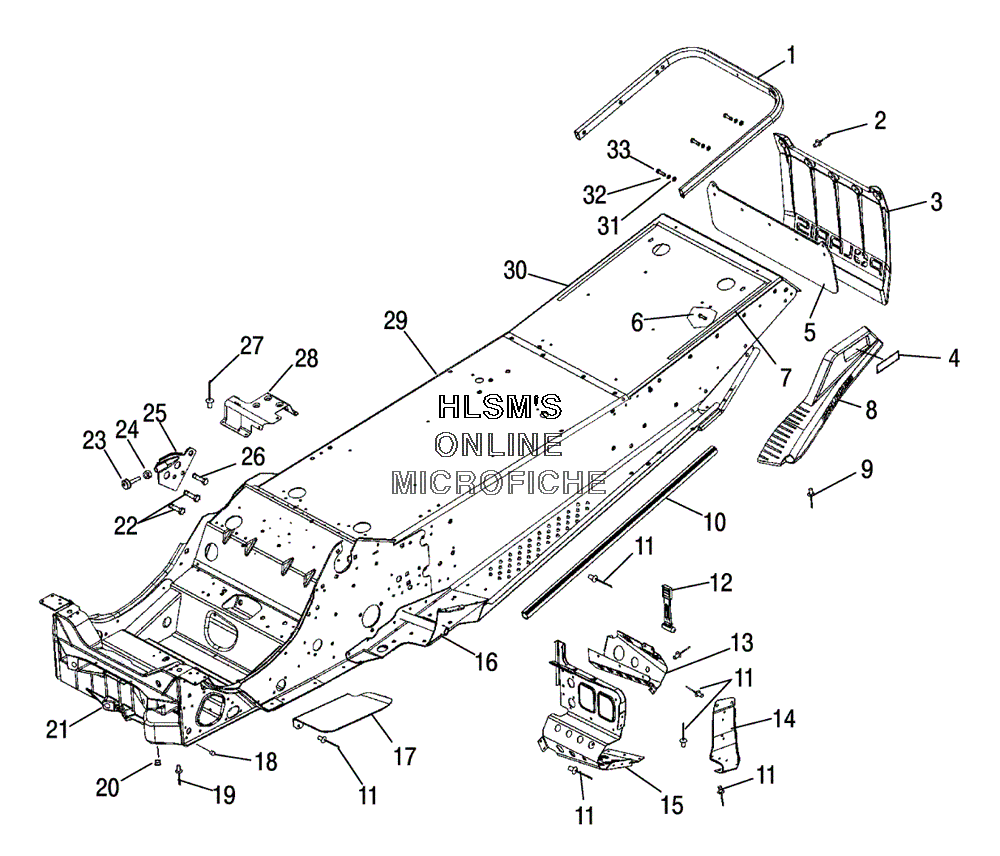

FRAME - CHASSIS для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
12632165-309 ASM.,BUMPER,REARASM.,BUMPER,REAR
-
27621418 RIVET,POP(50)RIVET,POP(50)
-
35434847-1038 FLAP-SNO,EDGE,LONG (BLACK)/WHTFLAP-SNO,EDGE,LONG (BLACK)/WHT
-
42670133 REFLECTOR ASM,REDREFLECTOR ASM,RED
-
55812430 BACKER-SNOW FLAPBACKER-SNOW FLAP
-
67517441 SCREW, .75SCREW, .75
-
75812360 GASKET-SEAT BASE 1/4"GASKET-SEAT BASE 1/4"
-
82632443-293 ASM-SNOWSKIRT/REFLECTOR,INDY RE (INCL. 4)ASM-SNOWSKIRT/REFLECTOR,INDY RE (INCL. 4)
-
82632444-293 ASM-SNOWSKIRT/REFLECTOR,INDY RE (INCL. 4)ASM-SNOWSKIRT/REFLECTOR,INDY RE (INCL. 4)
-
97621472 RIVET(50)RIVET(50)
-
105245118-067 BRACE-TUNNEL ROLL (BLACK)BRACE-TUNNEL ROLL (BLACK)
-
117661637 RIVET,INTERLOCK,Z(50)RIVET,INTERLOCK,Z(50)
-
125433150 STRAPSTRAP
-
135245457-067 MOUNT-CONSOLE,TOE CLIP (BLACK/LEFT)MOUNT-CONSOLE,TOE CLIP (BLACK/LEFT)
-
135245458-067 MOUNT-CONSOLE,TOE CLIP (BLACK/RIGHT)MOUNT-CONSOLE,TOE CLIP (BLACK/RIGHT)
-
145246310-067 SUPPORT-FOOTREST (BLACK/LEFT)SUPPORT-FOOTREST (BLACK/LEFT)
-
145246311-067 SUPPORT-FOOTREST (BLACK/RIGHT)SUPPORT-FOOTREST (BLACK/RIGHT)
-
155245288-067 FOOTREST (BLACK/LEFT)FOOTREST (BLACK/LEFT)
-
155247205-067 FOOTREST (BLACK/RIGHT)FOOTREST (BLACK/RIGHT)
-
162202059 KIT-MOUNT,TRAILING ARM (LEFT)KIT-MOUNT,TRAILING ARM (LEFT)
-
162202598 KIT-MOUNT,TRAILING ARM (RIGHT)KIT-MOUNT,TRAILING ARM (RIGHT)
-
175246066 GUARD-BELTGUARD-BELT
-
187080416 PLUG, HOLEPLUG, HOLE
-
197661130 RIVET-3/16-.214-.420 (50)RIVET-3/16-.214-.420 (50)
-
207081076 PLUG-HOLE,1.25PLUG-HOLE,1.25
-
215132292 BULKHEAD-FRONT,MACHBULKHEAD-FRONT,MACH
-
227517854 SCR-3/8-16X1-P30-SPEC-YSCR-3/8-16X1-P30-SPEC-Y
-
233021104 STOP,TORQUE COURSE 3/8-16STOP,TORQUE COURSE 3/8-16
-
247542404 NUTNUT
-
251013399 WELD-TORQUE STOPWELD-TORQUE STOP
-
267517632 SCREWSCREW
-
277621432 RIVET,3/16X.402(50)RIVET,3/16X.402(50)
-
285246330 BRKT-OIL TANK/HOSE SUPPORTBRKT-OIL TANK/HOSE SUPPORT
-
291014204-067 CHASSIS,EDGE,STD,LC (BLACK) (INCL. 13-16,21)CHASSIS,EDGE,STD,LC (BLACK) (INCL. 13-16,21)
-
305812290 GASKET-SEAT BASEGASKET-SEAT BASE
-
317558301 WASHER, FLAT(10)WASHER, FLAT(10)
-
327552801 WASHER, SPRING LOCK(10)WASHER, SPRING LOCK(10)
-
337512232 BOLT(10)BOLT(10)
