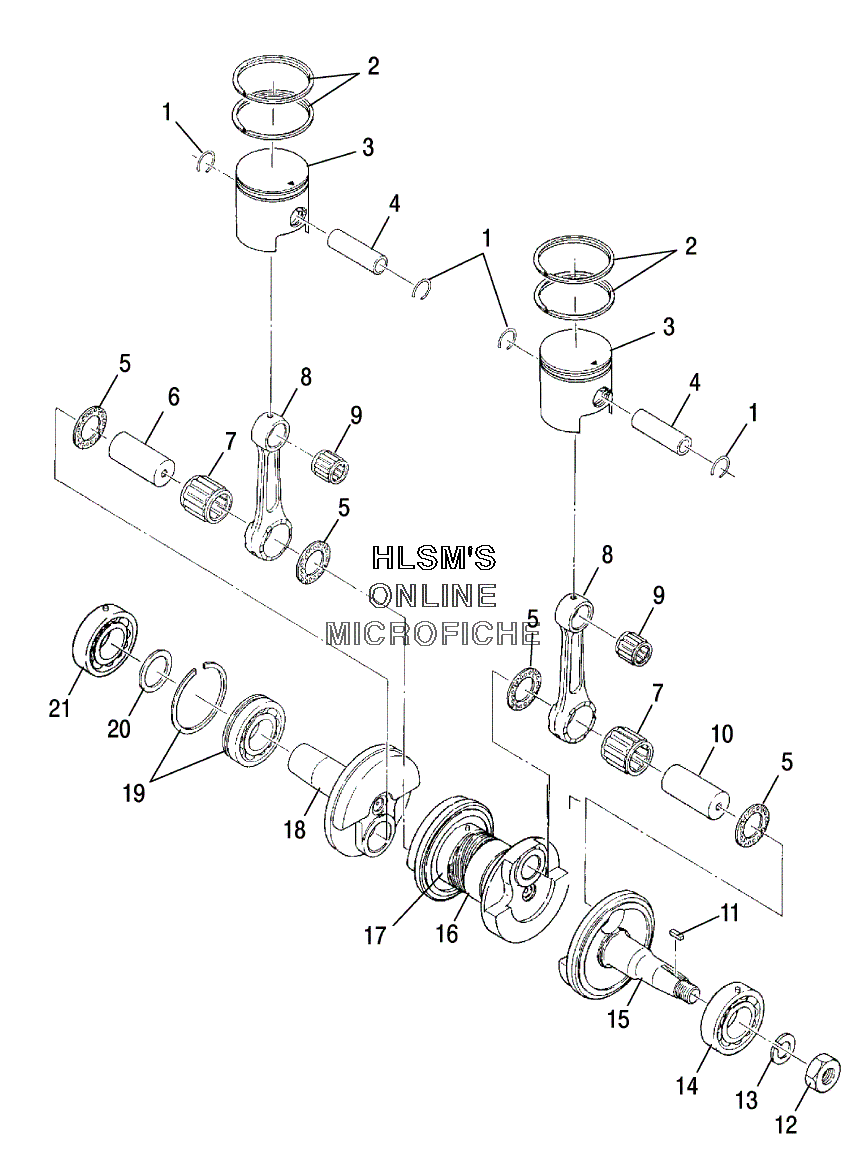

PISTON AND CRANKSHAFT для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13083839 CLIP,PISTON PIN,(10)CLIP,PISTON PIN,(10)
-
23084342 PISTON,RING,STANDARD(2)PISTON,RING,STANDARD(2)
-
23084343 SET,PISTON,RING,.010"/.25MM(2)SET,PISTON,RING,.010"/.25MM(2)
-
23084344 SET,PISTON,RING,.020"/.50 MM O/SET,PISTON,RING,.020"/.50 MM O/
-
33084339 SET,PISTON,STANDARDSET,PISTON,STANDARD
-
33084340 SET,PISTON,.010"/.25MM O/SSET,PISTON,.010"/.25MM O/S
-
33084341 SET,PISTON,.020"/.50MM O/SSET,PISTON,.020"/.50MM O/S
-
43083858 PIN, PISTONPIN, PISTON
-
53083277 SPACER,CRANKPINSPACER,CRANKPIN
-
63083456 PIN, CRANK, 2 (57MM)PIN, CRANK, 2 (57MM)
-
73085628 BEARING,LARGE ENDBEARING,LARGE END
-
83083252 ROD-CONNECTINGROD-CONNECTING
-
93085595 BEARING,SMALL ENDBEARING,SMALL END
-
103083233 PIN,CRANK 1 (56MM)PIN,CRANK 1 (56MM)
-
113081543 KEY WOODRUFFKEY WOODRUFF
-
123083093 NUTNUT
-
133083094 WASHER-SPRING(10)WASHER-SPRING(10)
-
143086878 BEARING,BALLBEARING,BALL
-
153087260 CRANKSHAFT AY.CRANKSHAFT AY.
-
153086835 CRANKSHAFT 1(MAG SIDE)CRANKSHAFT 1(MAG SIDE)
-
163083713 CRANKSHAFT 2 (INCL. 6,10)CRANKSHAFT 2 (INCL. 6,10)
-
173084601 BEARING,BALLBEARING,BALL
-
183087261 CRANKSHAFT-3(PTO SIDE)CRANKSHAFT-3(PTO SIDE)
-
193085204 BALL BEARINGBALL BEARING
-
203085203 SPACERSPACER
-
213085205 BALL BEARINGBALL BEARING
