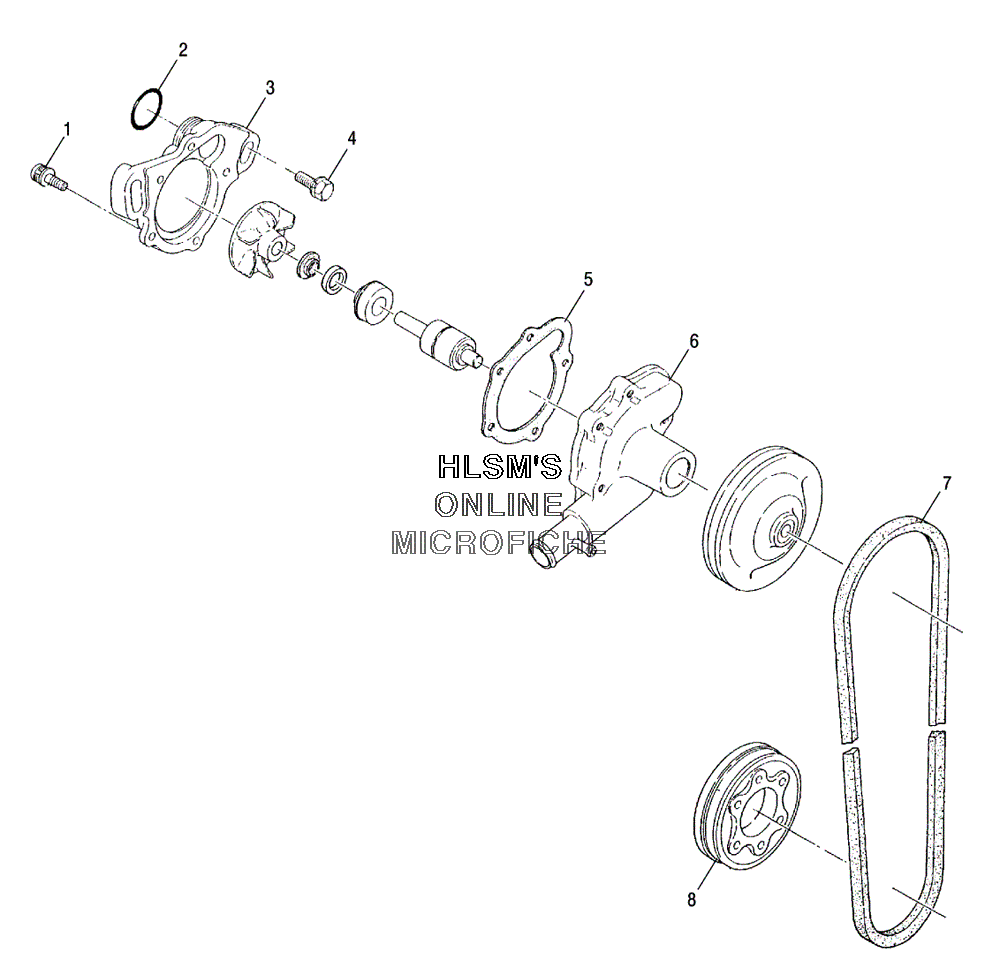

WATER PUMP для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13084221 SCREW & WASHER ASM.(10)SCREW & WASHER ASM.(10)
-
23082746 O RINGO RING
-
33083683 CASING,PUMP 2CASING,PUMP 2
-
43083370 BOLT & WASHER ASM.BOLT & WASHER ASM.
-
53083367 GASKET,WATER PUMPGASKET,WATER PUMP
-
63087011 WATER PUMP ASM (INCL. 1-3,5)WATER PUMP ASM (INCL. 1-3,5)
-
73082747 BELTBELT
-
83083371 PULLEY,(DRIVE)PULLEY,(DRIVE)
