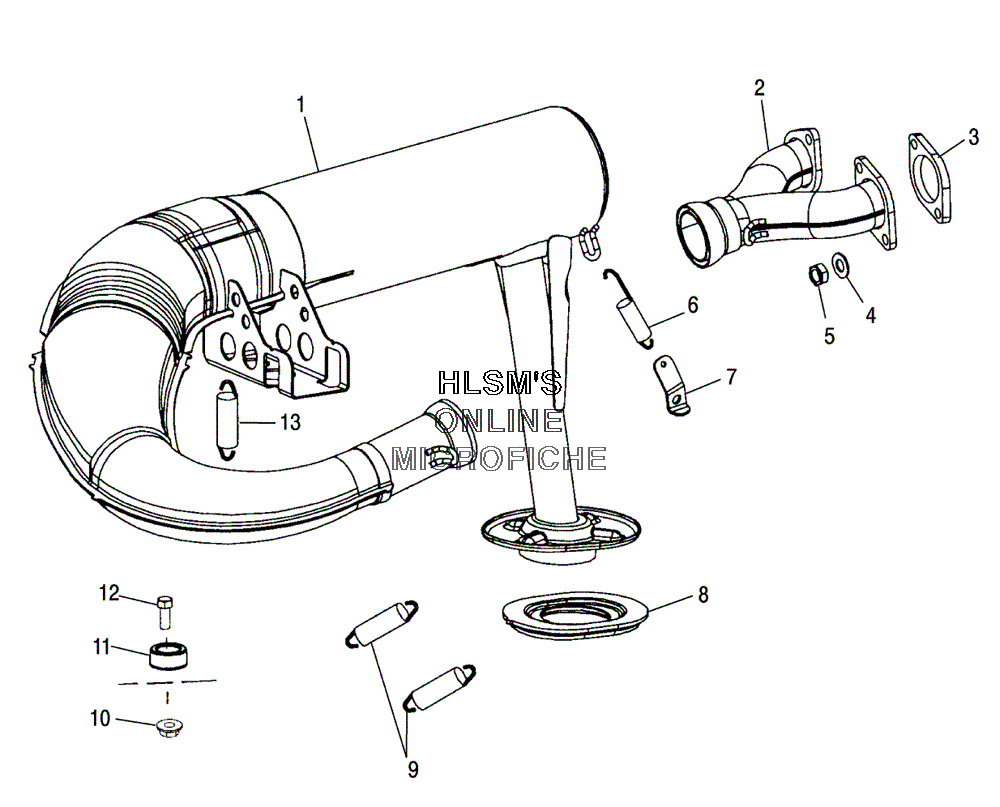

EXHAUST SYSTEM для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска
-
№АртикулНазвание
-
11261070-029 TUNED PIPE (BLACK)TUNED PIPE (BLACK)
-
21261074-029 MAINFOLD (BLACK)MAINFOLD (BLACK)
-
47552901 WASHER,SPRING LOCK(10)WASHER,SPRING LOCK(10)
-
57547210 NUT-5/16-18 LINC,28 THREADNUT-5/16-18 LINC,28 THREAD
-
67042029 SPRING(10)SPRING(10)
-
75246202 BRKT-RETAINERBRKT-RETAINER
-
85411902 BOOT,OUTLETBOOT,OUTLET
-
97042332 SPRING,S.S.SPRING,S.S.
-
107547180 NUT-FLANGED,3/8-16 NYLON-Z (10)NUT-FLANGED,3/8-16 NYLON-Z (10)
-
115433576 DAMPENER-VIBRATIONSDAMPENER-VIBRATIONS
-
127517935 SCR-3/8,16X1 1/4 HXSOC CS ZY3SCR-3/8,16X1 1/4 HXSOC CS ZY3
-
137041687 SPRINGSPRING
