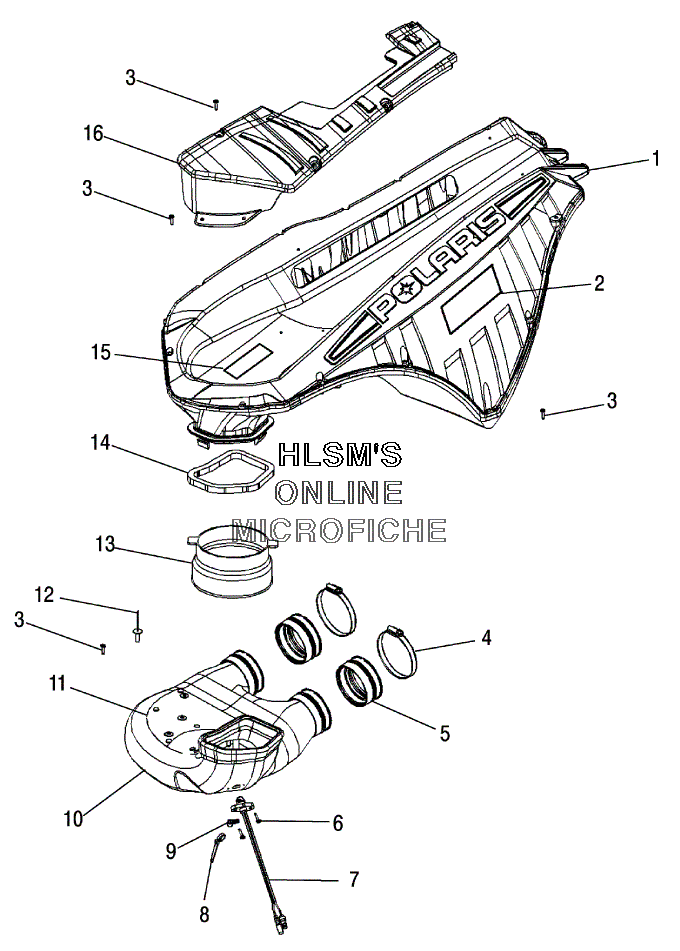

AIR INTAKE SYSTEM для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
11253513 AIR SILENCER ASSYAIR SILENCER ASSY
-
15434926 AIR SILENCER ASSYAIR SILENCER ASSY
-
15435060 AIR SILENCER ASSYAIR SILENCER ASSY
-
15812618 FOIL PLENUM (LOWER)FOIL PLENUM (LOWER)
-
15812639 PLATE BAFFLE, SIDEPLATE BAFFLE, SIDE
-
15812647 FOAM PLENUM, INTERNAL (.5X2)FOAM PLENUM, INTERNAL (.5X2)
-
15812648 FOAM PLENUM, INTERNAL (1" X7.5")FOAM PLENUM, INTERNAL (1" X7.5")
-
15812649 FOAM PLENUM, INTERNAL (1" X9")FOAM PLENUM, INTERNAL (1" X9")
-
15812650 FOAM PLENUM, INTERNAL (1" X13.5")FOAM PLENUM, INTERNAL (1" X13.5")
-
27171037 DECAL BELT REMOVAL E/RDECAL BELT REMOVAL E/R
-
37512026 SCREWSCREW
-
47080909 CLAMP, NARROW BAND (1.77/2.75)CLAMP, NARROW BAND (1.77/2.75)
-
55412359 BOOTBOOT
-
67511881 SCREWSCREW
-
74011113 SENSOR AIR TEMPSENSOR AIR TEMP
-
87080138 CABLE TIECABLE TIE
-
97080539 CLAMP, NYLON CABLECLAMP, NYLON CABLE
-
101202972 BOOST BOX ASSY (INCL. 11)BOOST BOX ASSY (INCL. 11)
-
105812620 FOILFOIL
-
105812622 FOILFOIL
-
115248258 PLATE REINFORCEMENTPLATE REINFORCEMENT
-
127621457 RIVETRIVET
-
135411489 BOOT, DUCT HI-FLOWBOOT, DUCT HI-FLOW
-
145812568 SEAL BOOST BOX/PLENUMSEAL BOOST BOX/PLENUM
-
157172672 DECAL ENGINE AND CLUTCHDECAL ENGINE AND CLUTCH
-
165435774 COVER PLENUMCOVER PLENUM
