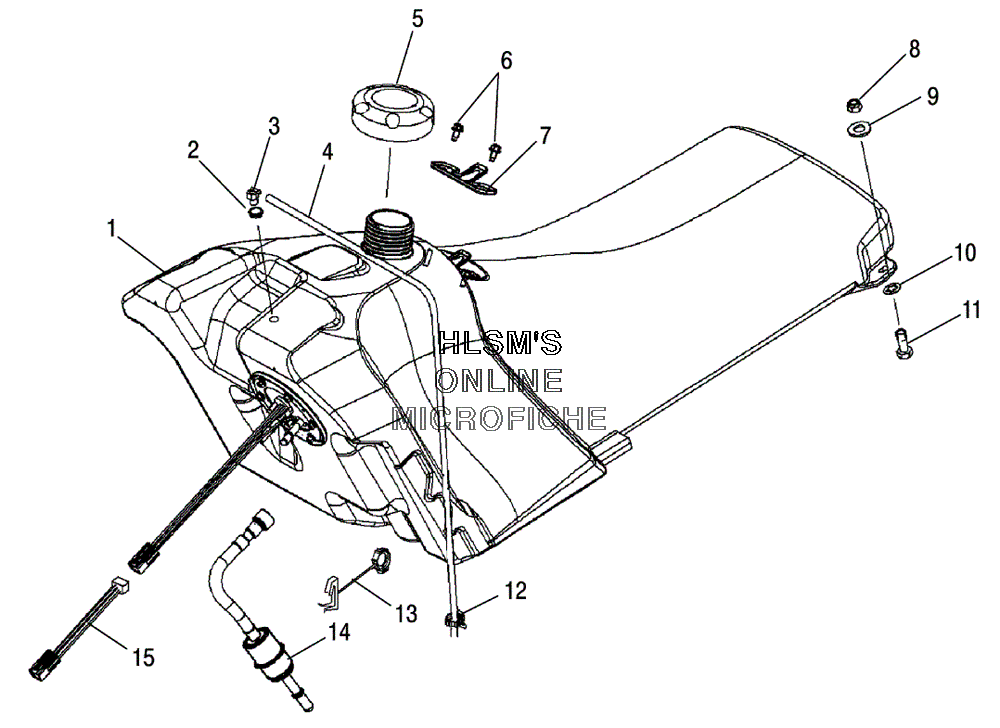

FUEL TANK для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
12520434 FUEL TANK, ASSY STANDARD CAPFUEL TANK, ASSY STANDARD CAP
-
27052362 GROMMET FLANGEDGROMMET FLANGED
-
37052385 FITTING BARBEDFITTING BARBED
-
48450061-600 LINE, FUELLINE, FUEL
-
55435534 CAP FUEL TANK, "PREMIUM"CAP FUEL TANK, "PREMIUM"
-
67512208 SCREWSCREW
-
75247431 BRACKET SEAT MOUNTBRACKET SEAT MOUNT
-
87542122 NUT NYLOKNUT NYLOK
-
97555859 WASHER, FLATWASHER, FLAT
-
107670154 RETAINER BOLTRETAINER BOLT
-
117515203 BOLTBOLT
-
124020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
137081256 SECONDARY CLIP, ASSYSECONDARY CLIP, ASSY
-
142520377 FUEL FILTER/HOSE ASSYFUEL FILTER/HOSE ASSY
-
152410612 HARNESS JUMPER, FUEL SENDERHARNESS JUMPER, FUEL SENDER
