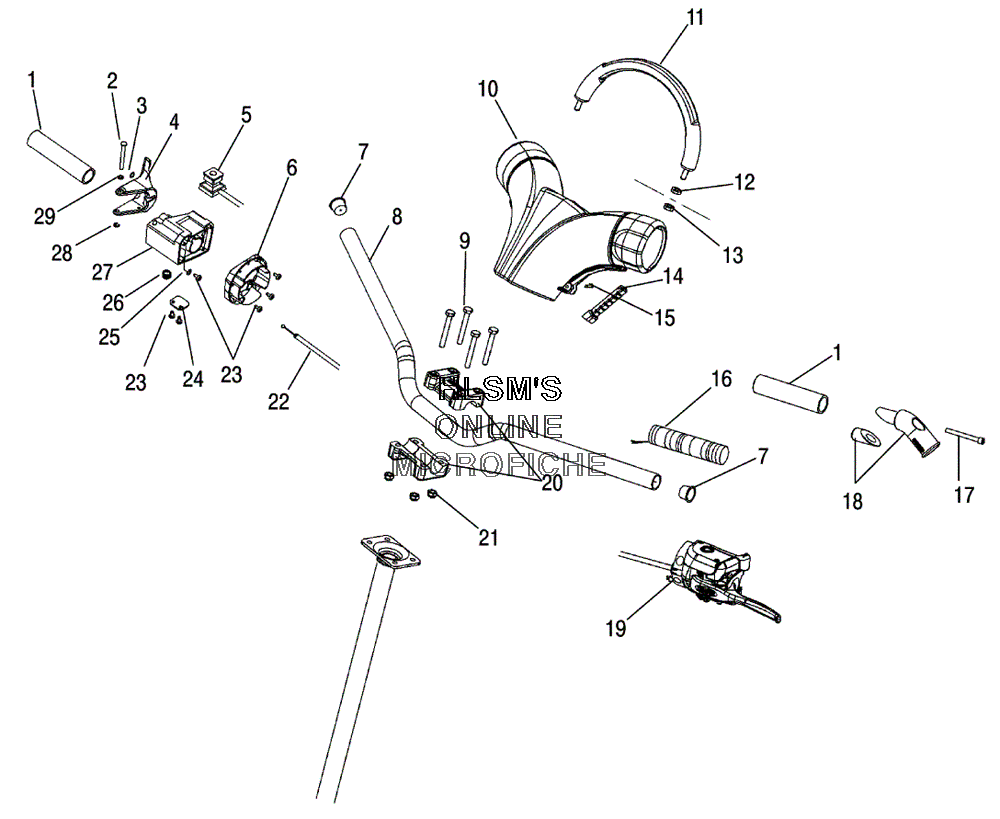

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
15435394-070 GRIP HANDLEBAR (BLACK)GRIP HANDLEBAR (BLACK)
-
27661624 PIN-RETAININGPIN-RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45432970 THROTTLE, LEVER (35.5MM)THROTTLE, LEVER (35.5MM)
-
42010171 LEVER HEATER HI/LO ASSY (35.5MM)LEVER HEATER HI/LO ASSY (35.5MM)
-
54110106 SWITCH, AUXILIARY SHUT-OFFSWITCH, AUXILIARY SHUT-OFF
-
65433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
75431096 PLUGPLUG
-
81821463-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
97517238 SCREWSCREW
-
105434990-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
117517672 STUD, CAP W/THRU HOLESTUD, CAP W/THRU HOLE
-
127547107 NUT, HEXAGON JAMNUT, HEXAGON JAM
-
137542344 NUT, NYLOKNUT, NYLOK
-
145434959-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
154010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
162461239 HEATER GRIP, LO/MED/HI SHORTHEATER GRIP, LO/MED/HI SHORT
-
177517834 SCREW SOCKET HEADSCREW SOCKET HEAD
-
181253274-070 HANDLEBAR, HOOK 45 DEG (BLACK)HANDLEBAR, HOOK 45 DEG (BLACK)
-
205630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
217542122 NUT NYLOKNUT NYLOK
-
227081154 CABLE THROTTLECABLE THROTTLE
-
237511848 SCREWSCREW
-
245432261 HOLDER WIREHOLDER WIRE
-
257555727 WASHERWASHER
-
267512465 SCREW, SETSCREW, SET
-
275431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
287710401 RING, RETAININGRING, RETAINING
-
297555730 WASHERWASHER
