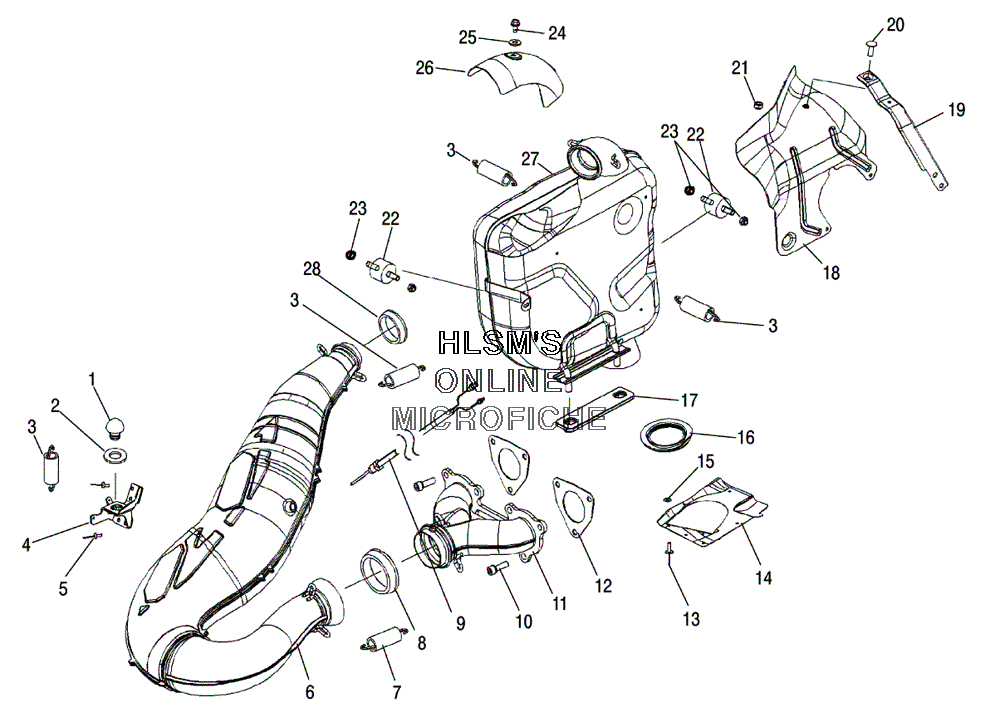

EXHAUST SYSTEM для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
15411576 DAMPENER VIBRATION, W/RIBSDAMPENER VIBRATION, W/RIBS
-
27556004 WASHERWASHER
-
37041687 SPRINGSPRING
-
41261403 BRKT CHASSIS TUNED PIPEBRKT CHASSIS TUNED PIPE
-
57661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
61261470 TUNED PIPE ASSYTUNED PIPE ASSY
-
67080808 CLAMP WORM DRIVE (.44WX5.5 DIA)CLAMP WORM DRIVE (.44WX5.5 DIA)
-
67080811 CLAMP WORM DRIVE (.44WX6.5 DIA)CLAMP WORM DRIVE (.44WX6.5 DIA)
-
67080812 CLAMP, WORM DRIVE (.44 X 3.75)CLAMP, WORM DRIVE (.44 X 3.75)
-
67081197 CLAMP WORM DRIVE (.44WX7.0 DIA)CLAMP WORM DRIVE (.44WX7.0 DIA)
-
65812651 MATTE TUNED PIPE TOPMATTE TUNED PIPE TOP
-
65812652 MATTE TUNED PIPE BOTTOMMATTE TUNED PIPE BOTTOM
-
65247250 COVER TUNED PIPE BOTTOMCOVER TUNED PIPE BOTTOM
-
65247251 COVER TUNED PIPE TOPCOVER TUNED PIPE TOP
-
77042332 SPRINGSPRING
-
83610113 SEAL EXHAUST SOCKETSEAL EXHAUST SOCKET
-
94010528 SENSOR EXHAUST TEMPSENSOR EXHAUST TEMP
-
107517322 SCREWSCREW
-
111261384-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
125812436 GASKET EXHAUSTGASKET EXHAUST
-
137621467 RIVET, BLINDRIVET, BLIND
-
145248422 DEFLECTOR EXHAUSTDEFLECTOR EXHAUST
-
157555792 WASHERWASHER
-
165412736 BOOT OUTLET, RESONATORBOOT OUTLET, RESONATOR
-
175412425 GROMMET RESONATOR SUPPORTGROMMET RESONATOR SUPPORT
-
185248737 DUCT HEATDUCT HEAT
-
195248460 BRACKET RECOIL HOUSINGBRACKET RECOIL HOUSING
-
207515199 SCREWSCREW
-
217542103 NUT, FLEXLOCNUT, FLEXLOC
-
223021398 MOUNT RUBBER, ISOLATORMOUNT RUBBER, ISOLATOR
-
237542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
247512208 SCREWSCREW
-
257558301 WASHER, FLATWASHER, FLAT
-
265248371-029 SHIELD RESONATOR INLET (BLACK)SHIELD RESONATOR INLET (BLACK)
-
271261472 RESONATOR, ASSYRESONATOR, ASSY
-
275248302 COVER RESONATOR (LEFT)COVER RESONATOR (LEFT)
-
275248303 COVER RESONATOR (RIGHT)COVER RESONATOR (RIGHT)
-
275248371-029 SHIELD RESONATOR INLET (BLACK)SHIELD RESONATOR INLET (BLACK)
-
275812665 MATTE RESONATOR (LEFT)MATTE RESONATOR (LEFT)
-
275812666 MATTE RESONATOR (RIGHT)MATTE RESONATOR (RIGHT)
-
275812667 MATTE RESONATOR INLETMATTE RESONATOR INLET
-
277512208 SCREWSCREW
-
277558301 WASHER, FLATWASHER, FLAT
-
277512017 SCREWSCREW
-
283610114 SEAL EXHAUSTSEAL EXHAUST
