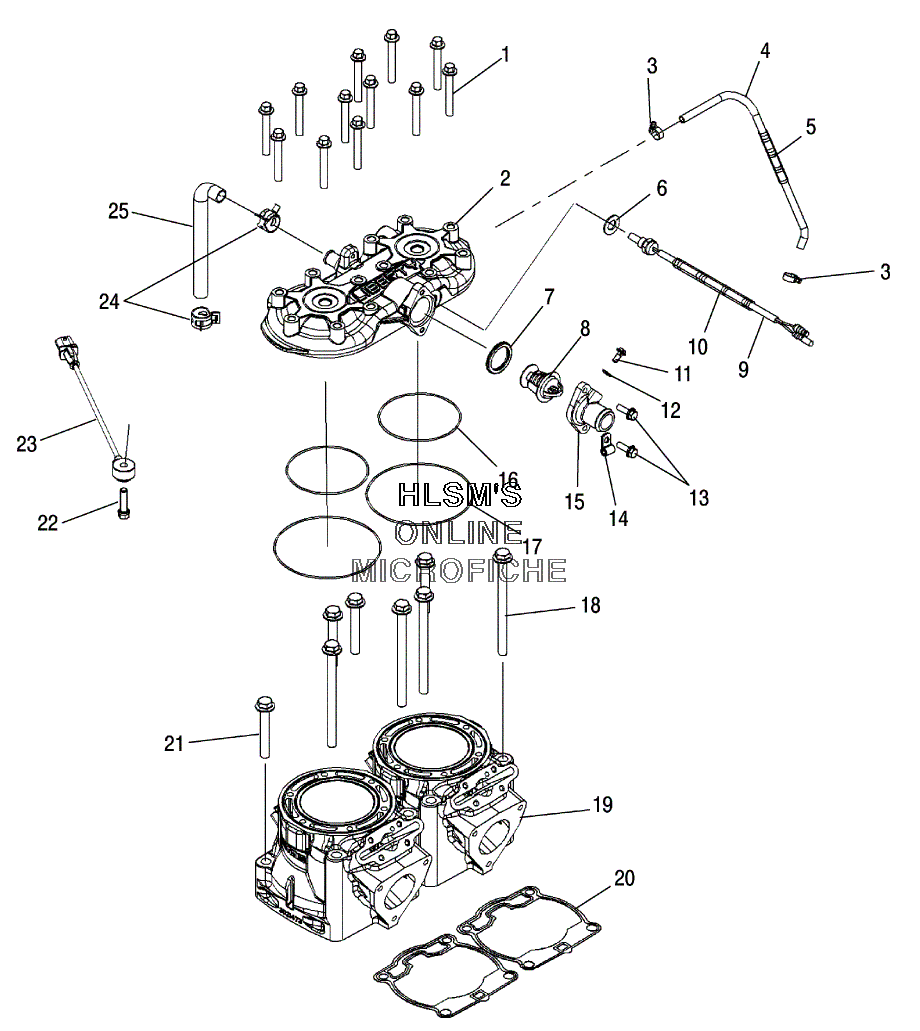

CYLINDER ASSEMBLY для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
17517533 SCREWSCREW
-
21202664-093 HEAD ASSY CYLINDER (RED)HEAD ASSY CYLINDER (RED)
-
21202664-462 HEAD CYLINDER (GOLD)HEAD CYLINDER (GOLD)
-
37080476 CLAMP, HOSECLAMP, HOSE
-
45412682 HOSE COOLANTHOSE COOLANT
-
58360062-15 CONDUIT FLEX, SLIT 1/2" HT-15CMCONDUIT FLEX, SLIT 1/2" HT-15CM
-
67518242 WASHER GASKET, WATER TEMP KOKWASHER GASKET, WATER TEMP KOK
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052376 THERMOSTAT 50C, TBYS ADHTHERMOSTAT 50C, TBYS ADH
-
94010868 SENSOR WATER TEMPSENSOR WATER TEMP
-
108360062-15 CONDUIT FLEX SLIT 1/2"HT-15CMCONDUIT FLEX SLIT 1/2"HT-15CM
-
117517679 SCREW, SL/HEXAGON/FLANGE-ZSCREW, SL/HEXAGON/FLANGE-Z
-
127555998 WASHER, FLATWASHER, FLAT
-
137516822 SCREWSCREW
-
147081246 CLAMP WIRE/TUBE (.25 DIA)CLAMP WIRE/TUBE (.25 DIA)
-
155631394 COVER THERMOSTAT STRCOVER THERMOSTAT STR
-
165411675 O-RING HI-TEMPO-RING HI-TEMP
-
175411359 O-RINGO-RING
-
187518292 SCREW HEXAGON/FLANGE -YSCREW HEXAGON/FLANGE -Y
-
193021615 CYLINDERCYLINDER
-
205812531 GASKET CYLINDER BASEGASKET CYLINDER BASE
-
217518091 SCREW HEXAGON/FLANGE-Y/DSCREW HEXAGON/FLANGE-Y/D
-
227517262 SCREW HEXAGON/FLANGE-YDSCREW HEXAGON/FLANGE-YD
-
232410369 SENSOR DETONATION BOSCHSENSOR DETONATION BOSCH
-
247081030 CLAMP BYPASS NORMA #24-15CLAMP BYPASS NORMA #24-15
-
255412362 HOSE BYPASSHOSE BYPASS
