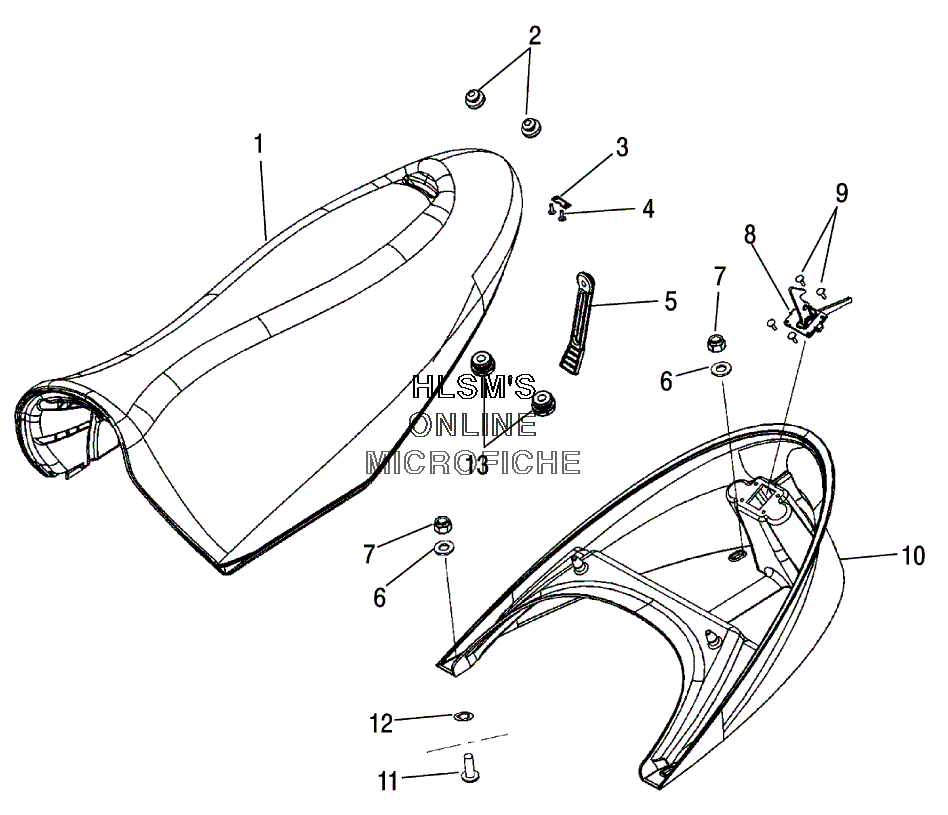

SEAT W/ TAILLIGHT для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
12680000 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
12683336 SEAT ASSY (50TH)SEAT ASSY (50TH)
-
12680001 SEAT COVERSEAT COVER
-
12683337 SEAT COVER (50TH)SEAT COVER (50TH)
-
25412067 BUMPER-RUBBERBUMPER-RUBBER
-
35247617 PLATE STRIKERPLATE STRIKER
-
47661184 RIVET ALUMINUM STEELRIVET ALUMINUM STEEL
-
55431501 STRAPSTRAP
-
67555859 WASHER, FLATWASHER, FLAT
-
77542122 NUT NYLOKNUT NYLOK
-
81014527 SEAT, LATCH ASSYSEAT, LATCH ASSY
-
97661184 RIVET, ALUMINUM STEELRIVET, ALUMINUM STEEL
-
102632845-070 SEAT WEDGE ASSY (BLACK)SEAT WEDGE ASSY (BLACK)
-
117515203 BOLTBOLT
-
127670154 RETAINER BOLTRETAINER BOLT
-
135412507 GROMMETGROMMET
