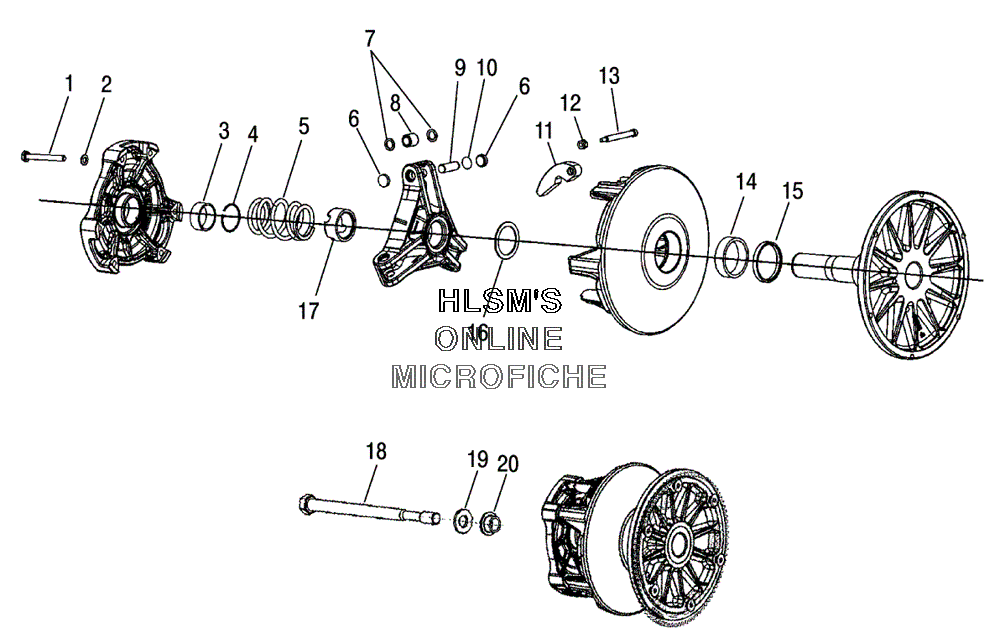

CLUTCH - DRIVE для Polaris 900 RMK (S05PL8) - 2005 года выпуска

-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33514347 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING COVERRING, RETAINING COVER
-
57042083 SPRING CLUTCH (BLACK/GREEN)SPRING CLUTCH (BLACK/GREEN)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133054 PIN-ROLLER, 1-1/8PIN-ROLLER, 1-1/8
-
102200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
111322414 WEIGHT/BUSHING, ASSY (10-70)WEIGHT/BUSHING, ASSY (10-70)
-
127541906 NUT FLEXLOCNUT FLEXLOC
-
137515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165210754 SPACER (.050)SPACER (.050)
-
165210753 SPACER (.032)SPACER (.032)
-
165242981 SPACER (.025)SPACER (.025)
-
165210752 SPACER (.020)SPACER (.020)
-
165134018 SPACER (.130)SPACER (.130)
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREW HEXAGONSCREW HEXAGON
-
197556336 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
201322535 DRIVE CLUTCH, ASSY BASIC 223 (LESS 5, 11)DRIVE CLUTCH, ASSY BASIC 223 (LESS 5, 11)
