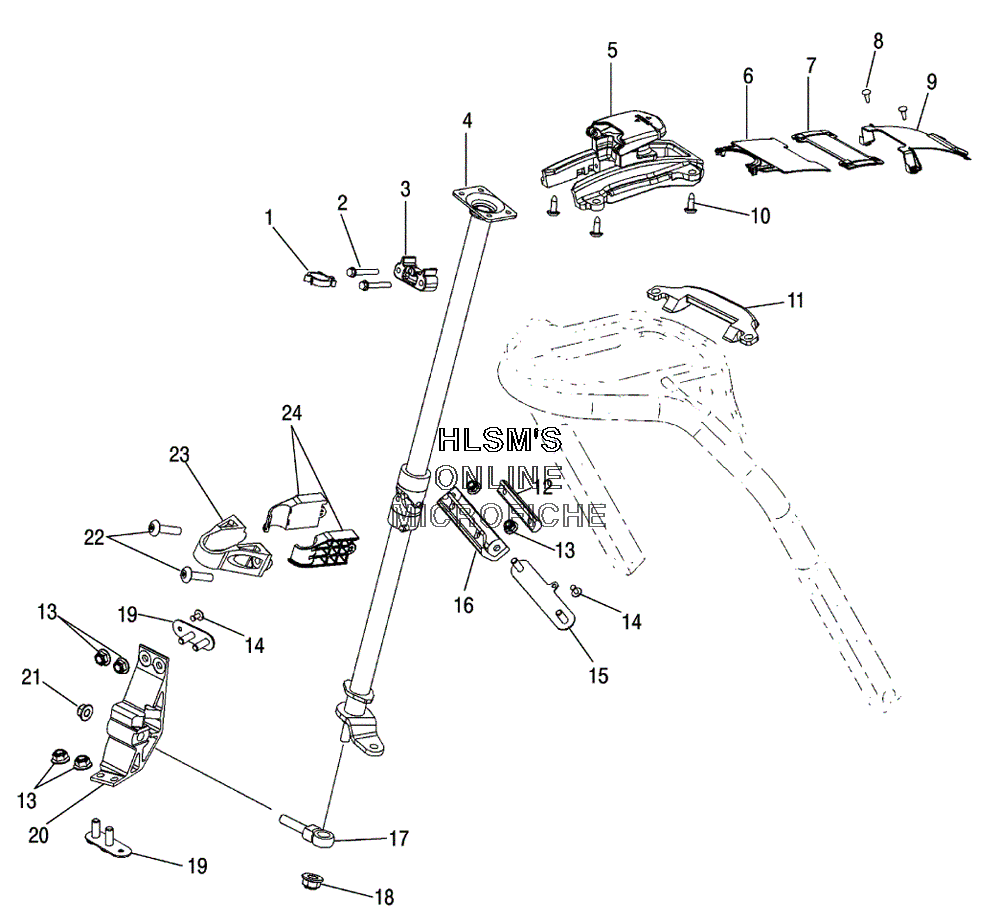

STEERING POST - ADJUSTABLE для Polaris 900 RMK (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
17670164 CLIP CABLE CONSTRAINTCLIP CABLE CONSTRAINT
-
27512093 SCREWSCREW
-
35436167 BLOCK STEERING POST FRONT HALFBLOCK STEERING POST FRONT HALF
-
41821529-067 STEERING POST (BLACK)STEERING POST (BLACK)
-
51822780 BLOCK, STEERING ADJUST ASSYBLOCK, STEERING ADJUST ASSY
-
65435537 COVER ADJUST STEERING (UPPER)COVER ADJUST STEERING (UPPER)
-
75435536 COVER ADJUST STEERING (CENTER)COVER ADJUST STEERING (CENTER)
-
87661864 RIVET NYLON PUSH .201X.413RIVET NYLON PUSH .201X.413
-
95435538 COVER ADJUST STEERING (LOWER)COVER ADJUST STEERING (LOWER)
-
107518352 SCREW TR/TORX NYLONSCREW TR/TORX NYLON
-
115412694 WEDGE ADJUST COVERWEDGE ADJUST COVER
-
125134447 STRAP BEARING MOUNT, MACHSTRAP BEARING MOUNT, MACH
-
137542343 NUT, FLANGENUT, FLANGE
-
147661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
151014646 PLATE, MIDPLATE, MID
-
165134446 MOUNT STEERING MACH (UPPER)MOUNT STEERING MACH (UPPER)
-
177061122 BALL JOINT, STEERINGBALL JOINT, STEERING
-
187547263 NUT 3/8-24 NYLOKNUT 3/8-24 NYLOK
-
191014645 PLATE BRACKET (LOWER)PLATE BRACKET (LOWER)
-
205134443 STEERING BALL MOUNT, MACHSTEERING BALL MOUNT, MACH
-
217542522 NUT, FLANGENUT, FLANGE
-
227516317 SCREW, TORX NYLONSCREW, TORX NYLON
-
235134445 STEERING BUSHING MOUNT MACHINESTEERING BUSHING MOUNT MACHINE
-
245435511 BUSHING STEERING POST (LEFT)BUSHING STEERING POST (LEFT)
-
245435512 BUSHING STEERING POST (RIGHT)BUSHING STEERING POST (RIGHT)
