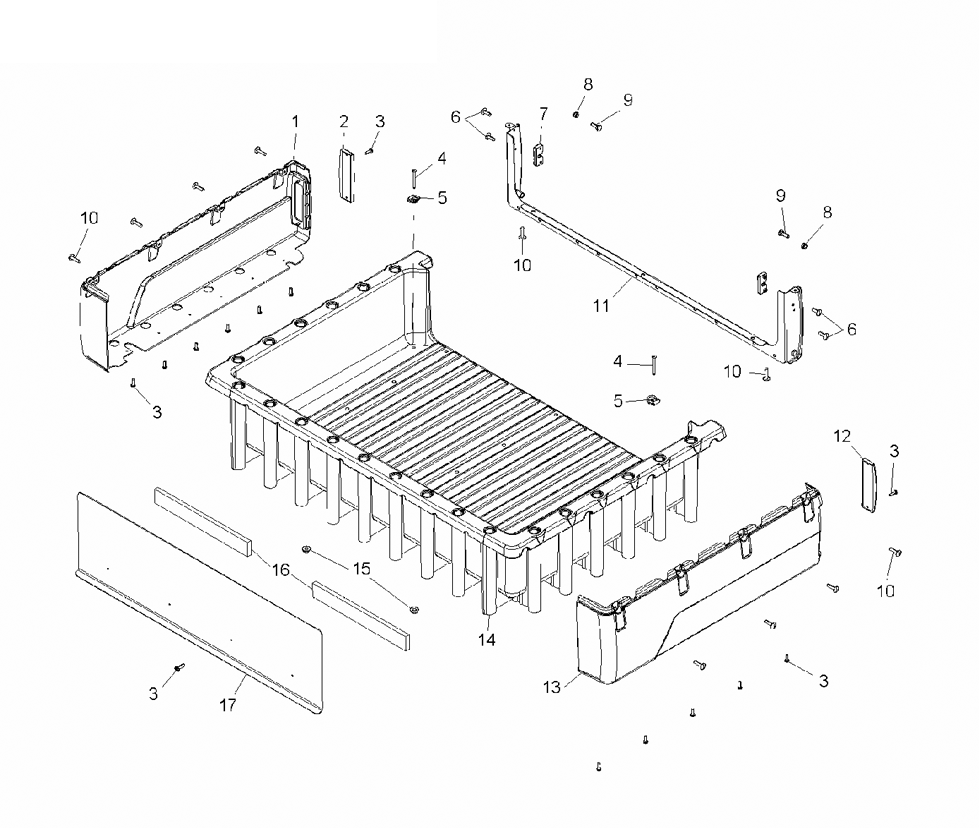

BOX ASSY. для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
15435552-515 PANEL-BOX, SHORT, RIGHT HAND, CRIMSON REDPANEL-BOX, SHORT, RIGHT HAND, CRIMSON RED
-
22410667 ASM-TAILLIGHT, RHASM-TAILLIGHT, RH
-
24030040 BULB, TAILLIGHTBULB, TAILLIGHT
-
37517790 SCR, #10X3/4 HI/LOSCR, #10X3/4 HI/LO
-
47517983 SCR-5/16-18X3.00 TR/TX-MSCR-5/16-18X3.00 TR/TX-M
-
57081195 RING-TIEDOWNRING-TIEDOWN
-
67512276 BOLTBOLT
-
77081099 LATCH-SLAM, TAILGATELATCH-SLAM, TAILGATE
-
87542122 NUT-NYLOKNUT-NYLOK
-
97518376 BOLTBOLT
-
107518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
111014678-067 TAILGATE SUPPORT, BLACKTAILGATE SUPPORT, BLACK
-
122410668 ASM-TAILLIGHT, LHASM-TAILLIGHT, LH
-
124030040 BULB, TAILLIGHTBULB, TAILLIGHT
-
135435551-515 PANEL-BOX, SHORT, LEFT HAND, CRIMSON REDPANEL-BOX, SHORT, LEFT HAND, CRIMSON RED
-
145436001-070 BOX-SHORT, TM, BLACKBOX-SHORT, TM, BLACK
-
157542321 NUT, FLANGENUT, FLANGE
-
165811310 SEAL-FOAM, 21 INSEAL-FOAM, 21 IN
-
175435996 PANEL-BOX, FRONTPANEL-BOX, FRONT
-
-1203004-515 NLANLA
