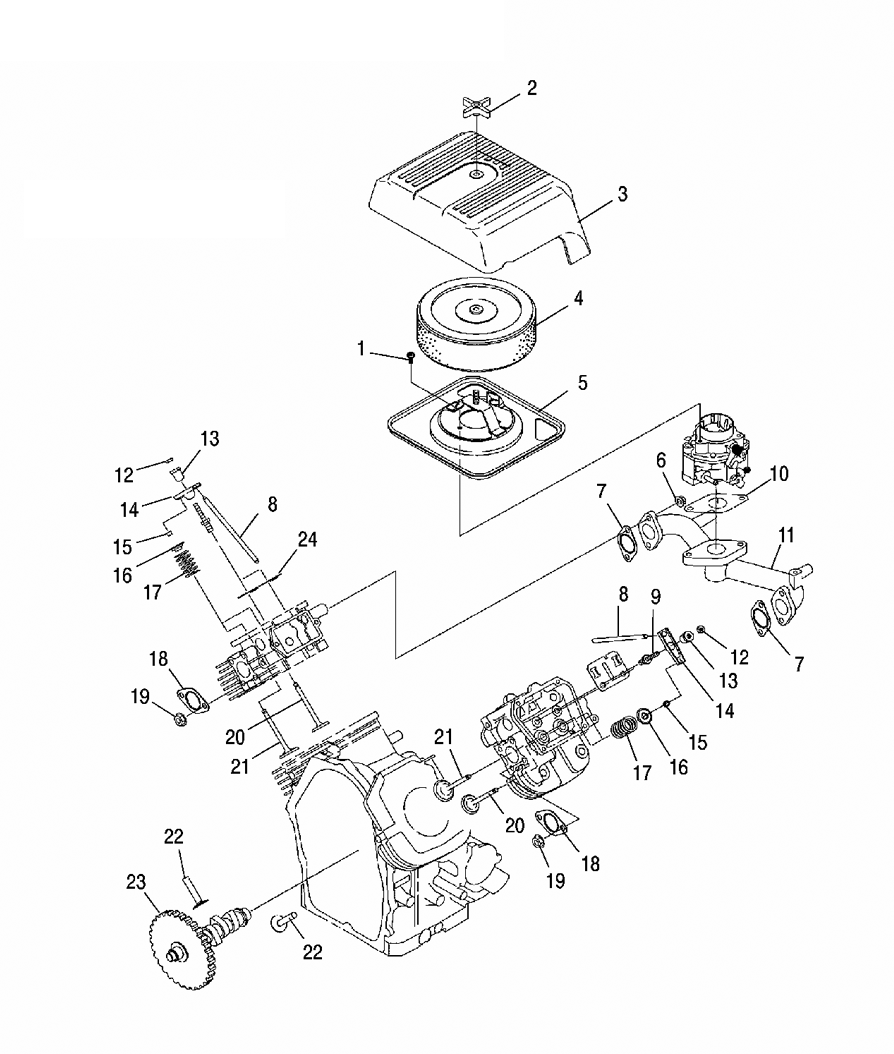

CAMSHAFT W/ VALVE ASSY. для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
-3088776 ASM, AIR CLEANER [INCL. 2, 3-5]ASM, AIR CLEANER [INCL. 2, 3-5]
-
13087256 BOLT, FLANGEBOLT, FLANGE
-
23088390 NUT-WINGNUT-WING
-
33088389 CLEANER-COVERCLEANER-COVER
-
43088387 CLEANER-ELEMENT, COMPL.CLEANER-ELEMENT, COMPL.
-
53088777 ASM, CLEANER BASEASM, CLEANER BASE
-
63082910 NUT-FLANGENUT-FLANGE
-
73088397 GASKET-INTAKE MANIFOLDGASKET-INTAKE MANIFOLD
-
83089501 ROD, PUSHROD, PUSH
-
93088342 BOLT-PIVOTBOLT-PIVOT
-
113088773 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
123088239 NUTNUT
-
133088728 PIVOTPIVOT
-
143088727 ARM, ROCKERARM, ROCKER
-
153087578 COLLET-VALVECOLLET-VALVE
-
163088726 RETAINER, SPRINGRETAINER, SPRING
-
173087575 VALVE-SPRINGVALVE-SPRING
-
183089755 GASKETGASKET
-
193088778 NUT, FLANGENUT, FLANGE
-
203088393 INTAKE-VALVEINTAKE-VALVE
-
213089500 VALVE, EXHAUSTVALVE, EXHAUST
-
223088392 TAPPETTAPPET
-
233088730 CAMSHAFTCAMSHAFT
-
243088775 PLATE, GUIDEPLATE, GUIDE
