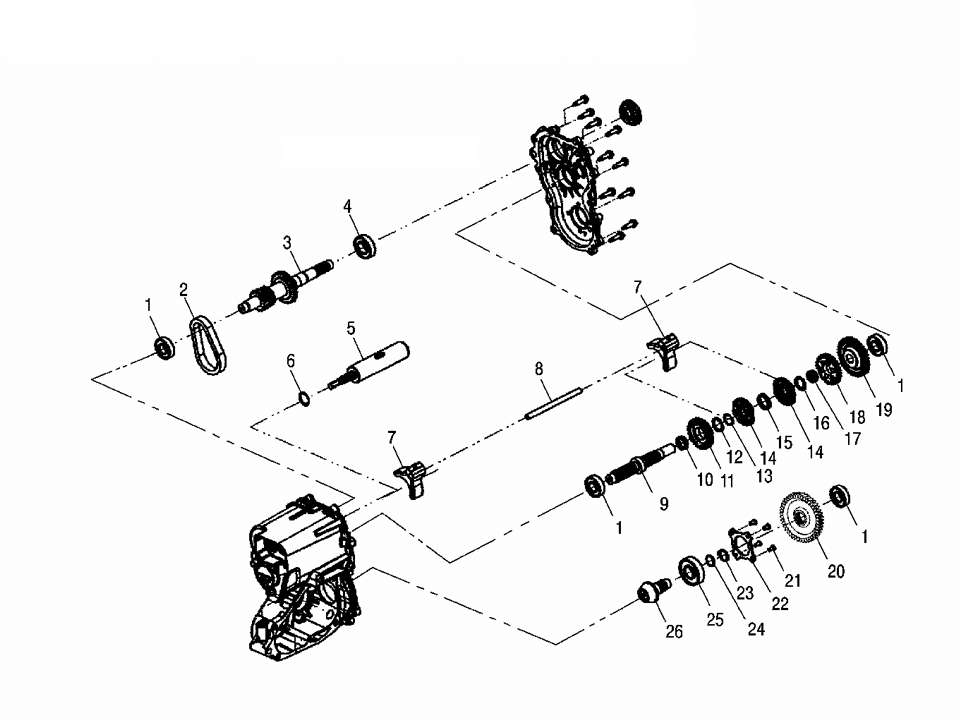

GEARCASE - INTERNAL COMPONENTS для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
-1332352 ASM-GEARCASE, GEN 2, 4.71 H, 2X4ASM-GEARCASE, GEN 2, 4.71 H, 2X4
-
13233018 BEARINGBEARING
-
23233036 CHAIN, SILENT, 34PCHAIN, SILENT, 34P
-
33234145 SUBASM-INPUT SHAFTSUBASM-INPUT SHAFT
-
43233019 BEARINGBEARING
-
53234214 SHAFTSHAFT
-
63233840 O-RINGO-RING
-
73234220 SUBASSY-SHIFT FOR W/PARKSUBASSY-SHIFT FOR W/PARK
-
83233860 RAIL-SHIFT SHAFT, C VERSIONRAIL-SHIFT SHAFT, C VERSION
-
93233892 SHAFT-REVERSESHAFT-REVERSE
-
103233103 BEARING, NEEDLEBEARING, NEEDLE
-
113233893 SPROCKET-24T, 6 FACESPROCKET-24T, 6 FACE
-
123233850 RING-RETAININGRING-RETAINING
-
133233894 WASHERWASHER
-
143233875 DOG-ENGAGEMENT, 6 FACEDOG-ENGAGEMENT, 6 FACE
-
153234144 SPRING-WAVE 1.35 ID X .353SPRING-WAVE 1.35 ID X .353
-
163233855 WASHERWASHER
-
173233718 BEARING, NDL, SPLIT CAGEBEARING, NDL, SPLIT CAGE
-
183234135 GEAR-HELICAL, 23T 6-FACEGEAR-HELICAL, 23T 6-FACE
-
193234138 GEAR-HELICAL, MID OUTPUT, 47TGEAR-HELICAL, MID OUTPUT, 47T
-
203234139 GEAR-HELICAL, MID OUTPUT, 60TGEAR-HELICAL, MID OUTPUT, 60T
-
213234086 SCREW-TORX TRUSS HDSCREW-TORX TRUSS HD
-
223234122 COVER-BEARINGCOVER-BEARING
-
233233106 RING, SNAPRING, SNAP
-
243233357 SPACERSPACER
-
253233607 BEARING, BALLBEARING, BALL
-
263230000 SUBASM-LAPPED BEVEL, GEAR SET [INCL. REF. 4 FROM GEARCASE - OUTPUT SHAFT.)SUBASM-LAPPED BEVEL, GEAR SET [INCL. REF. 4 FROM GEARCASE - OUTPUT SHAFT.)
