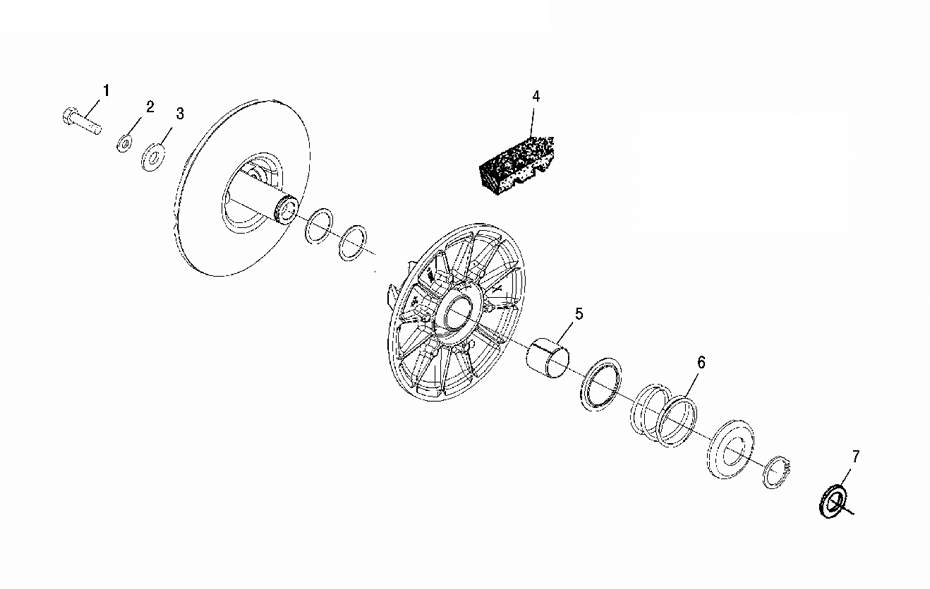

CLUTCH - DRIVEN для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
-1322387 ASM-CLUTCH, DRIVENASM-CLUTCH, DRIVEN
-
17515382 BOLTBOLT
-
27552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
35220646 WASHER, DOMEDWASHER, DOMED
-
43211101 BELT-DRIVEBELT-DRIVE
-
53234185 BRNG-PLAIN 1.500X1.6563X1.500BRNG-PLAIN 1.500X1.6563X1.500
-
63234186 SPRING, COMPRESSION 2.70 ODSPRING, COMPRESSION 2.70 OD
-
77556120 BUSHING-7/8 X 3/8 X 16 GA-Y [3 MAX]BUSHING-7/8 X 3/8 X 16 GA-Y [3 MAX]
