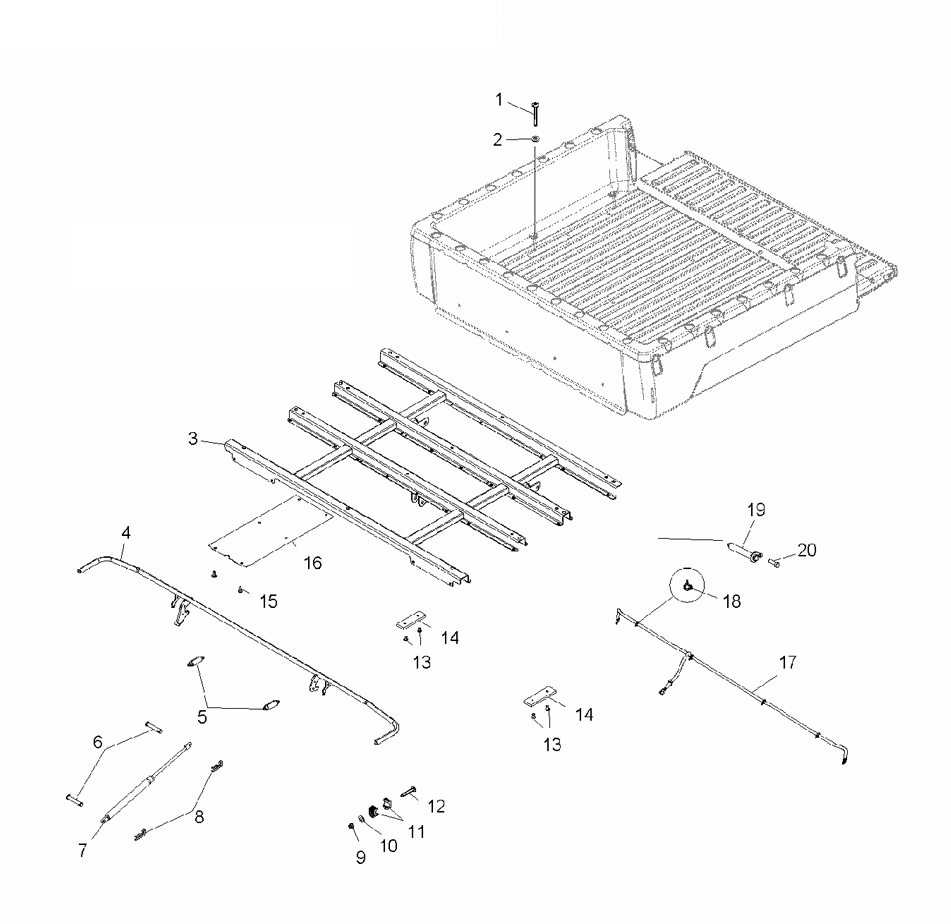

BOX MOUNTING для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
17518375 SCR-1/4-20X1.50 TR/TX-MSCR-1/4-20X1.50 TR/TX-M
-
27556329 WASHER-.281X1.00X.051WASHER-.281X1.00X.051
-
31014964-067 WELD-BOX SUPPORT, BLACKWELD-BOX SUPPORT, BLACK
-
41014963-067 WELD-BOX LATCH, BLKWELD-BOX LATCH, BLK
-
57041687 SPRINGSPRING
-
67661037 PIN, CLEVISPIN, CLEVIS
-
77041996 SHOCK-DUMP BOX 19.50SHOCK-DUMP BOX 19.50
-
87661644 PIN, HITCHPIN, HITCH
-
97542343 NUT, FLANGENUT, FLANGE
-
107558402 WASHER, FLATWASHER, FLAT
-
115434226 BUSHING-BOX, LATCHBUSHING-BOX, LATCH
-
127515319 BOLTBOLT
-
137621418 RIVET, POPRIVET, POP
-
145412321 BUMPER-BOX BASEBUMPER-BOX BASE
-
157517386 SCREWSCREW
-
165249127 SHIELD-HEAT, EXHAUSTSHIELD-HEAT, EXHAUST
-
172410695 HARNESS-CARGO BOXHARNESS-CARGO BOX
-
187670116 CLIP, ROUTING, .472 B.D., HINGEDCLIP, ROUTING, .472 B.D., HINGED
-
191013511-067 PIN, BOX HINGE, BLACKPIN, BOX HINGE, BLACK
-
207517386 SCREWSCREW
