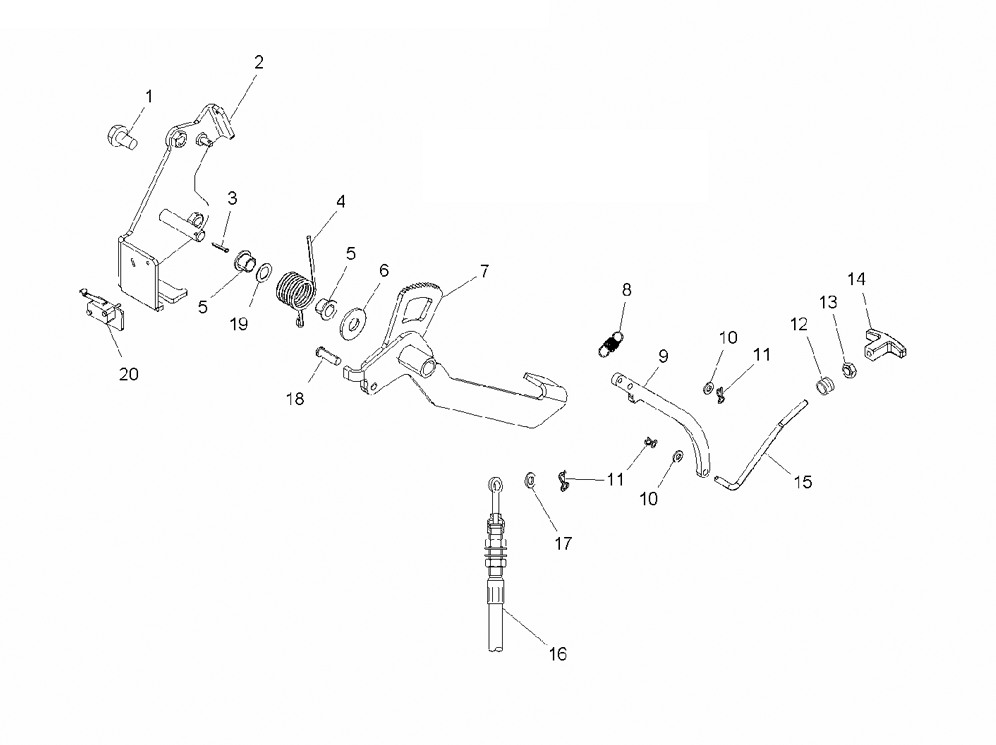

PARK BRAKE PEDAL для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
-1910816 PARK BRAKE ASM (INCL. 2-11, 15, 18-20)PARK BRAKE ASM (INCL. 2-11, 15, 18-20)
-
17515547 SCREWSCREW
-
21014724 BRACKETBRACKET
-
37661203 PIN, COTTERPIN, COTTER
-
47043073 SPRING-LEVER RETURNSPRING-LEVER RETURN
-
55431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
67555804 WASHERWASHER
-
71014723 LEVERLEVER
-
87042057 SPRING-CATCH, PARKING BRAKESPRING-CATCH, PARKING BRAKE
-
95248150 PARK BRAKE ASMPARK BRAKE ASM
-
107555827 WASHERWASHER
-
117661140 PIN-CLIP, 14MMPIN-CLIP, 14MM
-
125410437 GROMMETGROMMET
-
137546701 NUTNUT
-
147081013 HANDLE-PARKING BRAKE [SEE PARK BRAKE LOCK CABLES)HANDLE-PARKING BRAKE [SEE PARK BRAKE LOCK CABLES)
-
155248157 ROD-HANDLE, PARK RELEASEROD-HANDLE, PARK RELEASE
-
177558302 WASHER, WROUGHTWASHER, WROUGHT
-
187661106 PIN-5/16X1 CLEVISPIN-5/16X1 CLEVIS
-
197555919 WASHERWASHER
-
204011093 SWITCH-PARK BRAKE SENSORSWITCH-PARK BRAKE SENSOR
