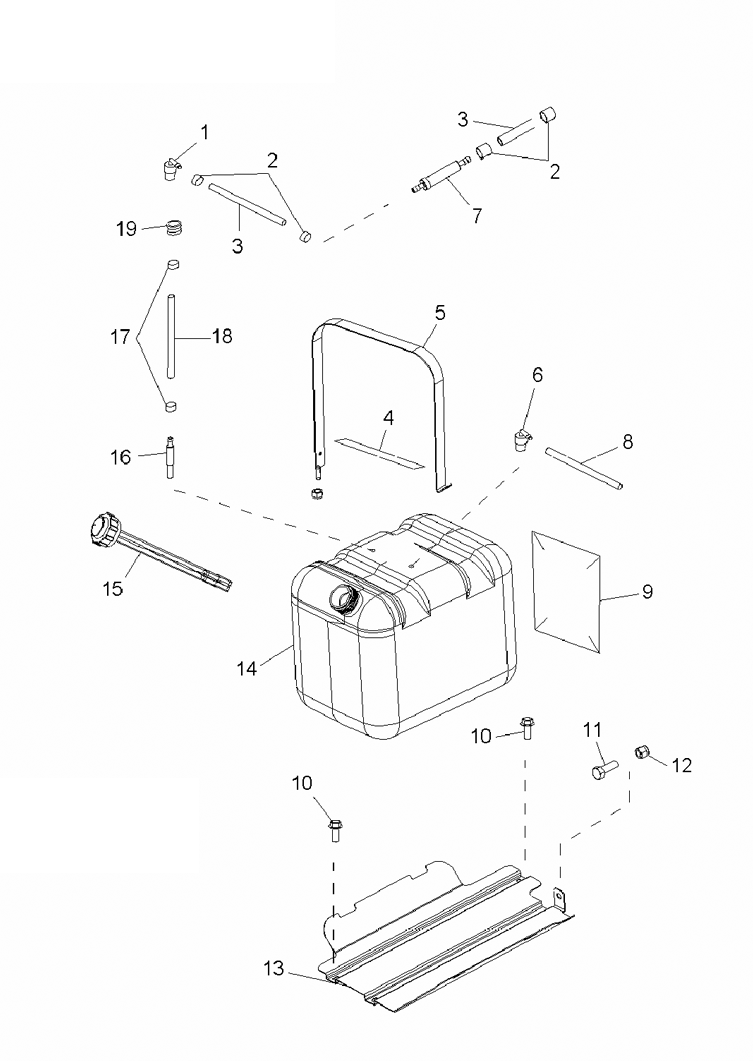

FUEL TANK для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
17052259 FITTING, 1/4'' 90° DEXFITTING, 1/4'' 90° DEX
-
27080003 CLAMP, HOSECLAMP, HOSE
-
38450103 FUEL HOSE-250 CMFUEL HOSE-250 CM
-
45812231 PAD-FUEL TANK, TOPPAD-FUEL TANK, TOP
-
51013471-067 TANK STRAP, BLACK.TANK STRAP, BLACK.
-
67052095 FITTING, 90 DEG, 1/8FITTING, 90 DEG, 1/8
-
72530009 FILTER, SMALL, IN-LINE,FILTER, SMALL, IN-LINE,
-
88360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
95812252 FOIL-TANKFOIL-TANK
-
107515399 SCREWSCREW
-
117515398 SCREWSCREW
-
127542324 NUT, NYLOKNUT, NYLOK
-
135247174-067 BRKT-FUEL TANK MNT, BLACKBRKT-FUEL TANK MNT, BLACK
-
145433861 ASM, TANK-FUEL, RANGERASM, TANK-FUEL, RANGER
-
151240119 CAP-GAS W/GAUGECAP-GAS W/GAUGE
-
167052301 PICK-UP-FUEL, W/FILTER, 105MICRNPICK-UP-FUEL, W/FILTER, 105MICRN
-
177080402 RING, COMPRESSIONRING, COMPRESSION
-
188350019-600 FUEL LINE-ESTERFUEL LINE-ESTER
-
197052362 GROMMET-FLANGED, .36X.56X1.06GROMMET-FLANGED, .36X.56X1.06
