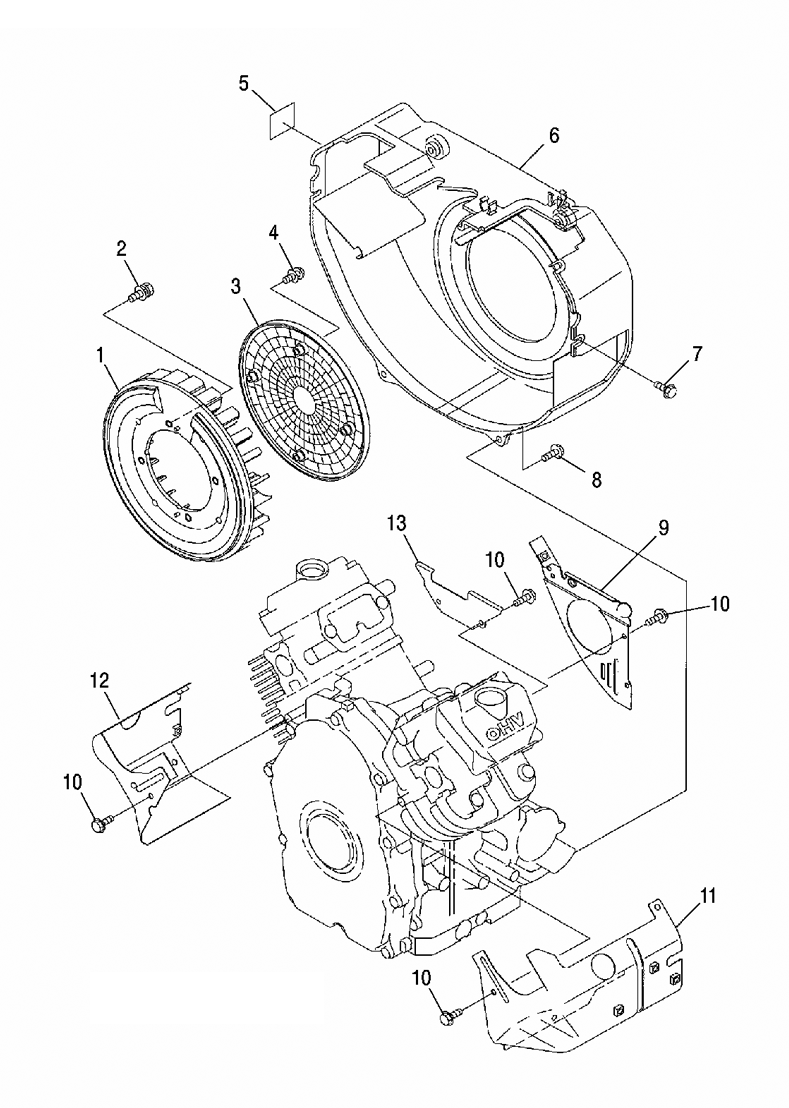

COOLING для Polaris RANGER TM 2X4 RED [R06RB63AA] - 2006 года выпуска
-
№АртикулНазвание
-
13089757 BLOWER-COOLINGBLOWER-COOLING
-
23083361 BOLT, FLANGEBOLT, FLANGE
-
33088789 SCREEN, ROTARINGSCREEN, ROTARING
-
43088738 SCREW AND WASHERSCREW AND WASHER
-
53088737 DECALDECAL
-
63089554 HOUSING, BLOWER, UNITHOUSING, BLOWER, UNIT
-
73088791 BOLT, FLANGEBOLT, FLANGE
-
83088767 BOLT, FLANGEBOLT, FLANGE
-
93089556 CYLINDER BAFFLE UNIT 4CYLINDER BAFFLE UNIT 4
-
103087256 BOLT, FLANGEBOLT, FLANGE
-
113088419 CYLINDER-BAFFLE, 2 COMPL.CYLINDER-BAFFLE, 2 COMPL.
-
123088790 ASM, CYLINDER BAFFLE 1ASM, CYLINDER BAFFLE 1
-
133088420 CYLINDER-BAFFLE 3CYLINDER-BAFFLE 3
