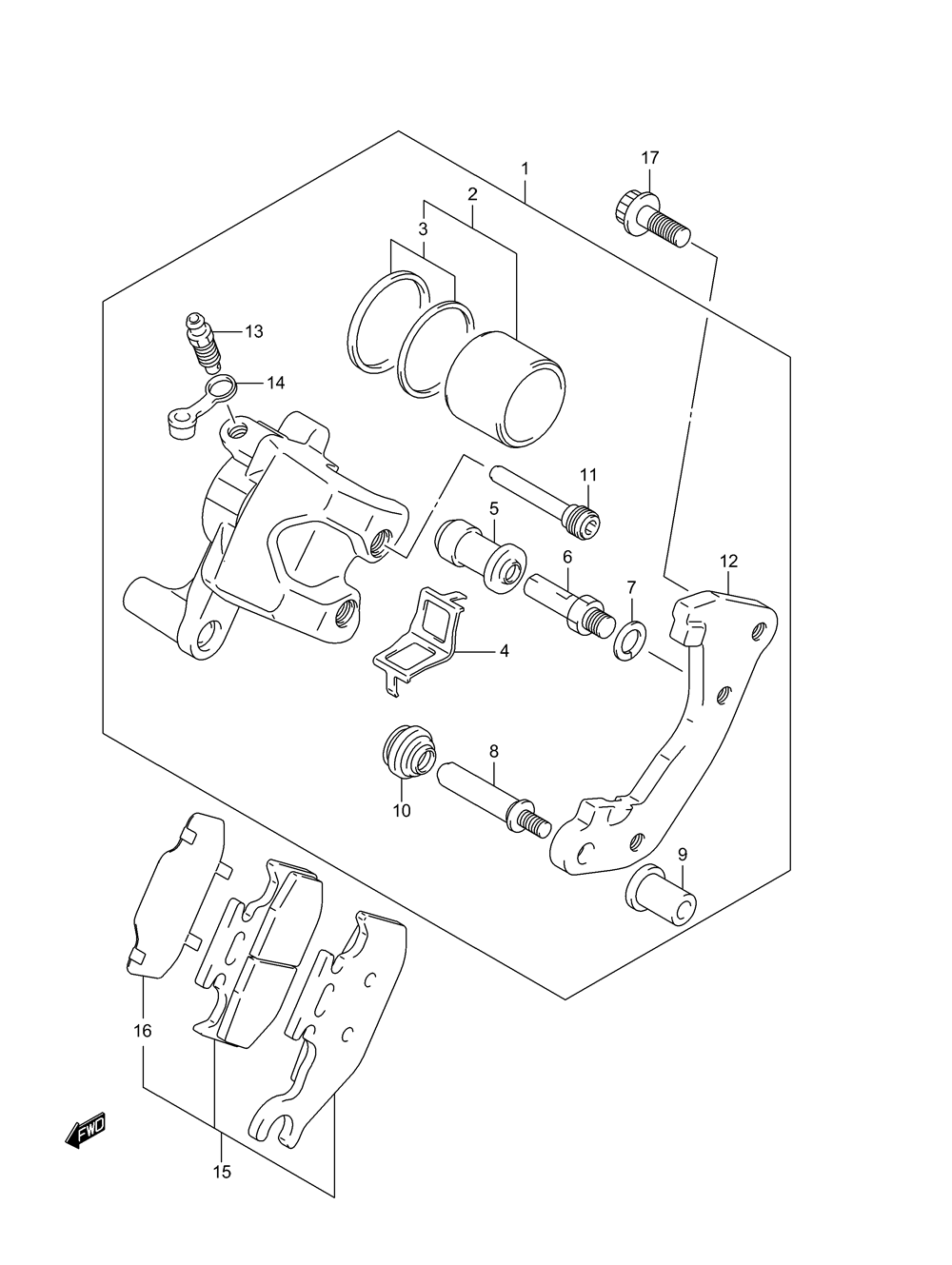

BRAKE - FRONT CALIPER для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
159100-31G00-999 CALIPER ASSY, FRONT RIGHT HANDCALIPER ASSY, FRONT RIGHT HAND
-
159300-31G00-999 CALIPER ASSY, FRONT LEFT HANDCALIPER ASSY, FRONT LEFT HAND
-
259300-13810 PISTON SETPISTON SET
-
369100-13820 SEAL SET, PISTONSEAL SET, PISTON
-
459315-27C00 SPRING, PADSPRING, PAD
-
559386-13A00 BOOTBOOT
-
659382-13A00 PINPIN
-
759314-13A00 WASHERWASHER
-
859387-00B20 PINPIN
-
959388-00B20 NUTNUT
-
1059303-14500 BOOTBOOT
-
1159145-39D00 PIN, HANGERPIN, HANGER
-
1259151-31G00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1259351-31G00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
1359121-01A00 BLEEDERBLEEDER
-
1459122-01A00 CAPCAP
-
1559100-31850 PAD AND SHIM SET RIGHT HANDPAD AND SHIM SET RIGHT HAND
-
1559100-31860 PAD AND SHIM SET LEFT HANDPAD AND SHIM SET LEFT HAND
-
1669132-28C00 SHIMSHIM
-
1709106-08176 BOLT (8X20)BOLT (8X20)
