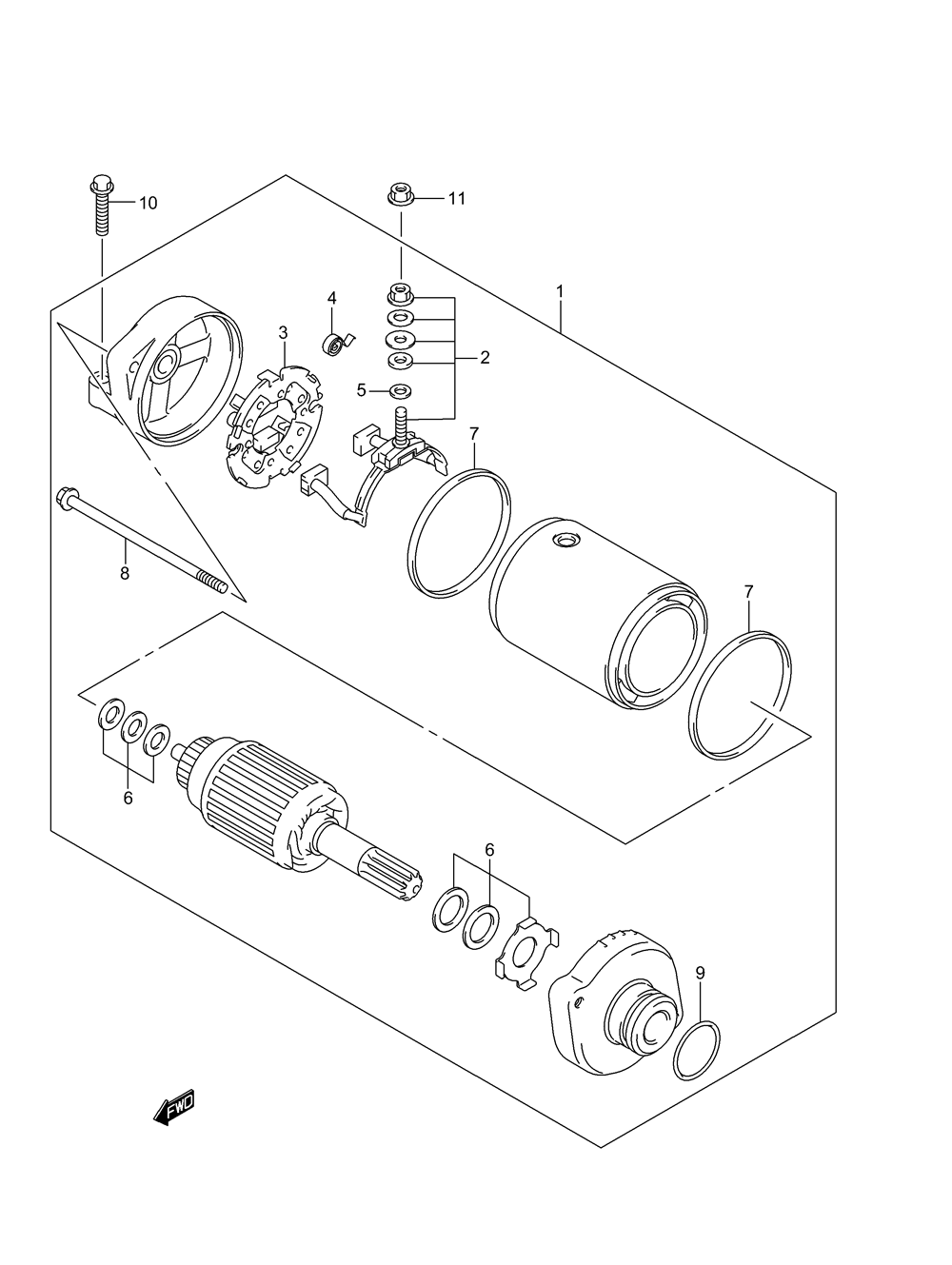

STARTING MOTOR для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
131100-31G00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-38B00 TERMINAL SET, BRUSHTERMINAL SET, BRUSH
-
331132-38B00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
431135-38B00 SPRING, BRUSHSPRING, BRUSH
-
531143-49040 O RINGO RING
-
631170-19B10 WASHER SETWASHER SET
-
731264-31300 O RINGO RING
-
831280-26D00 BOLTBOLT
-
909280-24003 O RING (D:3,ID:24.5)O RING (D:3,ID:24.5)
-
1001547-06253 BOLT, STARTING MOTORBOLT, STARTING MOTOR
-
1108361-35068 NUT, STARTING MOTORNUT, STARTING MOTOR
