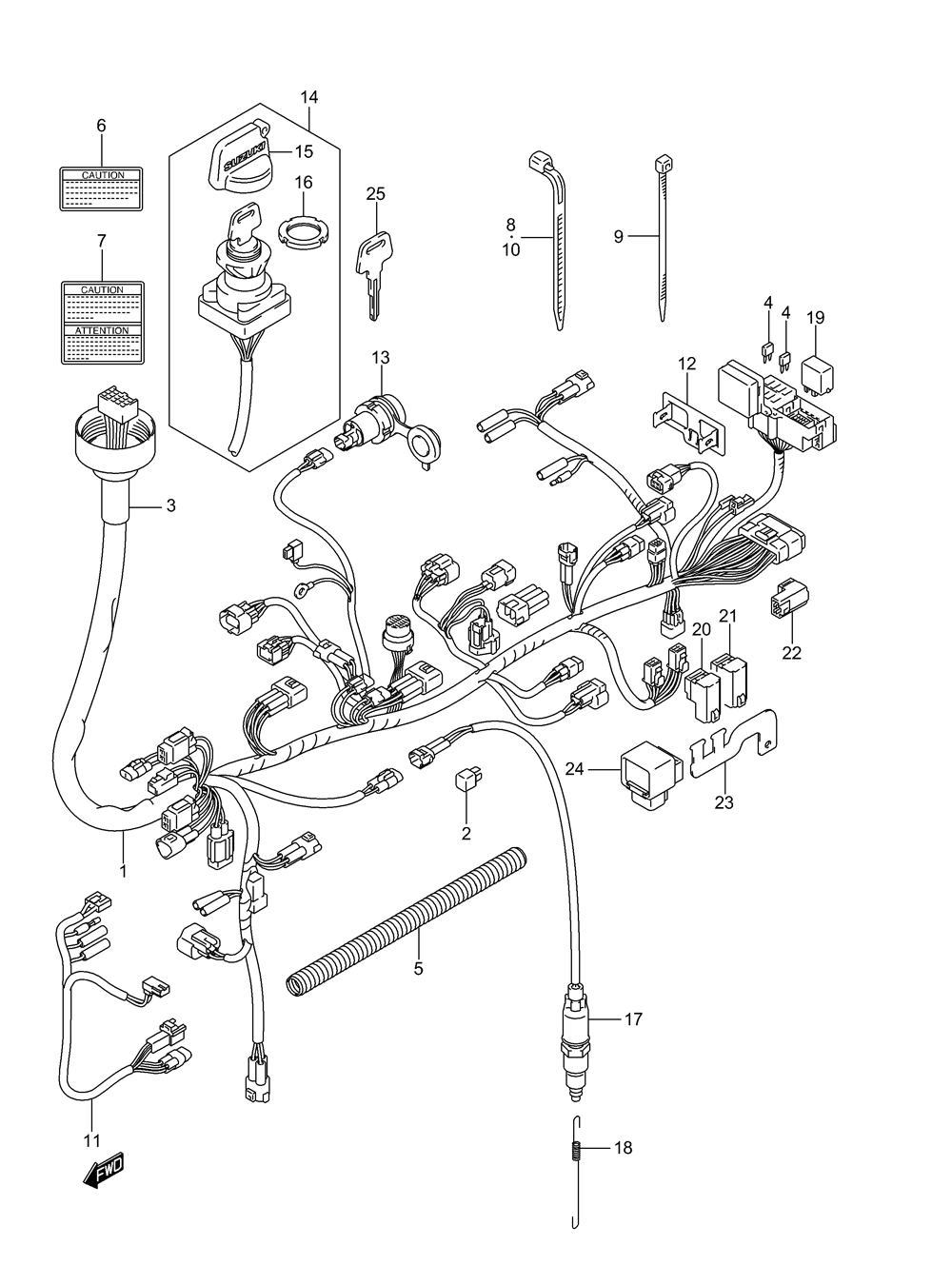

ELECTRICAL - WIRING HARNESS для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
136610-31G30 HARNESS, WIRINGHARNESS, WIRING
-
232800-16A00 RECTIFIER ASSYRECTIFIER ASSY
-
336618-31G00 COVERCOVER
-
409481-10501 FUSE (10A)FUSE (10A)
-
409481-15501 FUSE (15A)FUSE (15A)
-
536619-31G00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
638852-09F30 LABEL, CAUTION MAX AMP (ENGLISH)LABEL, CAUTION MAX AMP (ENGLISH)
-
738852-03G10 LABEL, CAUTION MAX AMP (FRENCH)LABEL, CAUTION MAX AMP (FRENCH)
-
809407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
809407-25401 CLAMP (L:235)CLAMP (L:235)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1009407-19401 CLAMP (L:190)CLAMP (L:190)
-
1136857-31G00 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1236744-31G00 BRACKET, FUSEBRACKET, FUSE
-
1338850-03G00 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1437110-31G00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1537142-19B00 MASCOT, KEYMASCOT, KEY
-
1637112-24500 NUTNUT
-
1737740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1809443-06080 SPRING, STOP LAMPSPRING, STOP LAMP
-
1938730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2038740-31G01 RELAY ASSY, NEUTRAL STARTRELAY ASSY, NEUTRAL START
-
2138740-31G01 RELAY ASSY, DEF LOCKRELAY ASSY, DEF LOCK
-
2238740-31G01 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2338741-31G10 BRACKET, RELAYBRACKET, RELAY
-
2438750-31G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2537146-19B00 KEY, BLANK TYPE (C)KEY, BLANK TYPE (C)
-
2537146-19B10 KEY, BLANK TYPE (D)KEY, BLANK TYPE (D)
-
2537146-19B20 KEY, BLANK TYPE (E)KEY, BLANK TYPE (E)
-
2537146-19B30 KEY, BLANK TYPE (F)KEY, BLANK TYPE (F)
