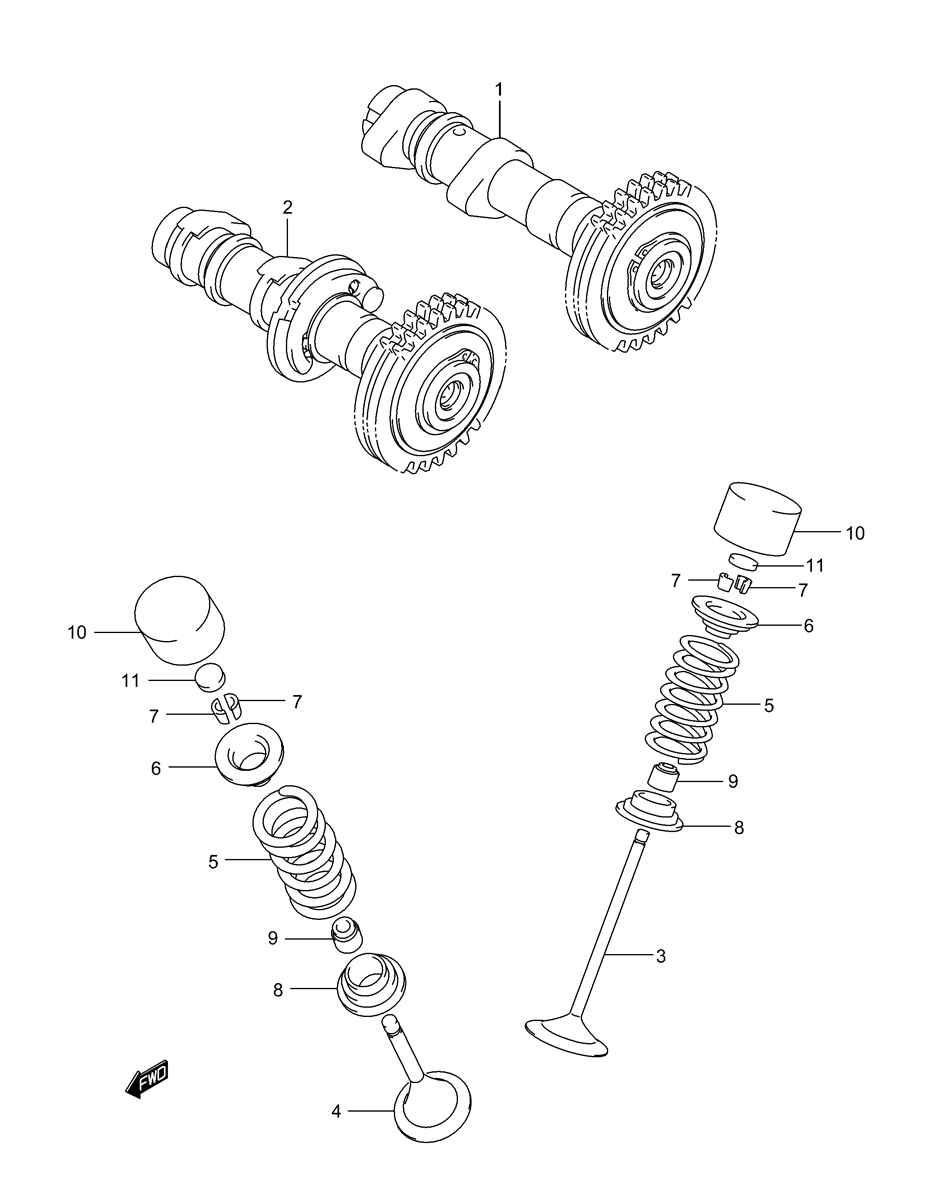

CAM SHAFT - W/ VALVES для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
112710-31G00 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
212720-31G00 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
312911-31G00 VALVE, INTAKEVALVE, INTAKE
-
412912-31G00 VALVE, EXHAUSTVALVE, EXHAUST
-
512921-31G00 SPRING, VALVESPRING, VALVE
-
612931-02F10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
712932-24400 COTTER, VALVECOTTER, VALVE
-
812933-38400 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
909289-05015 SEAL, OILSEAL, OIL
-
1012891-02F00 TAPPETTAPPET
-
1112892-41C00-230 SHIM, TAPPET,T:230SHIM, TAPPET,T:230
-
1112892-41C00-235 SHIM, TAPPET,T:235SHIM, TAPPET,T:235
-
1112892-41C00-240 SHIM, TAPPET,T:240SHIM, TAPPET,T:240
-
1112892-41C00-245 SHIM, TAPPET,T:245SHIM, TAPPET,T:245
-
1112892-41C00-250 SHIM, TAPPET,T:250SHIM, TAPPET,T:250
-
1112892-41C00-255 SHIM, TAPPET,T:255SHIM, TAPPET,T:255
-
1112892-41C00-260 SHIM, TAPPET,T:260SHIM, TAPPET,T:260
-
1112892-41C00-265 SHIM, TAPPET,T:265SHIM, TAPPET,T:265
-
1112892-41C00-270 SHIM, TAPPET,T:270SHIM, TAPPET,T:270
-
1112892-41C00-275 SHIM, TAPPET,T:275SHIM, TAPPET,T:275
-
1112892-41C00-280 SHIM, TAPPET,T:280SHIM, TAPPET,T:280
-
1112892-41C00-285 SHIM, TAPPET,T:285SHIM, TAPPET,T:285
-
1112892-41C00-290 SHIM, TAPPET,T:290SHIM, TAPPET,T:290
-
1112892-41C00-295 SHIM, TAPPET,T:295SHIM, TAPPET,T:295
-
1112892-41C00-300 SHIM, TAPPET,T:300SHIM, TAPPET,T:300
-
1112892-41C00-305 SHIM, TAPPET,T:305SHIM, TAPPET,T:305
-
1112892-41C00-310 SHIM, TAPPET,T:310SHIM, TAPPET,T:310
-
1112892-41C00-315 SHIM, TAPPET,T:315SHIM, TAPPET,T:315
-
1112892-41C00-320 SHIM, TAPPET,T:320SHIM, TAPPET,T:320
-
1112892-41C00-325 SHIM, TAPPET,T:325SHIM, TAPPET,T:325
-
1112892-41C00-330 SHIM, TAPPET,T:330SHIM, TAPPET,T:330
-
1112892-41C00-335 SHIM, TAPPET,T:335SHIM, TAPPET,T:335
-
1112892-41C00-340 SHIM, TAPPET,T:340SHIM, TAPPET,T:340
-
1112892-41C00-345 SHIM, TAPPET,T:345SHIM, TAPPET,T:345
-
1112892-41C00-350 SHIM, TAPPET,T:350SHIM, TAPPET,T:350
-
1212800-41810 SHIM SET, TAPPET (INC. REF. NO. 11) (5PCS.)SHIM SET, TAPPET (INC. REF. NO. 11) (5PCS.)
-
1399000-69471 CASE, TAPPET SHIM (NOT SHOWN)CASE, TAPPET SHIM (NOT SHOWN)
