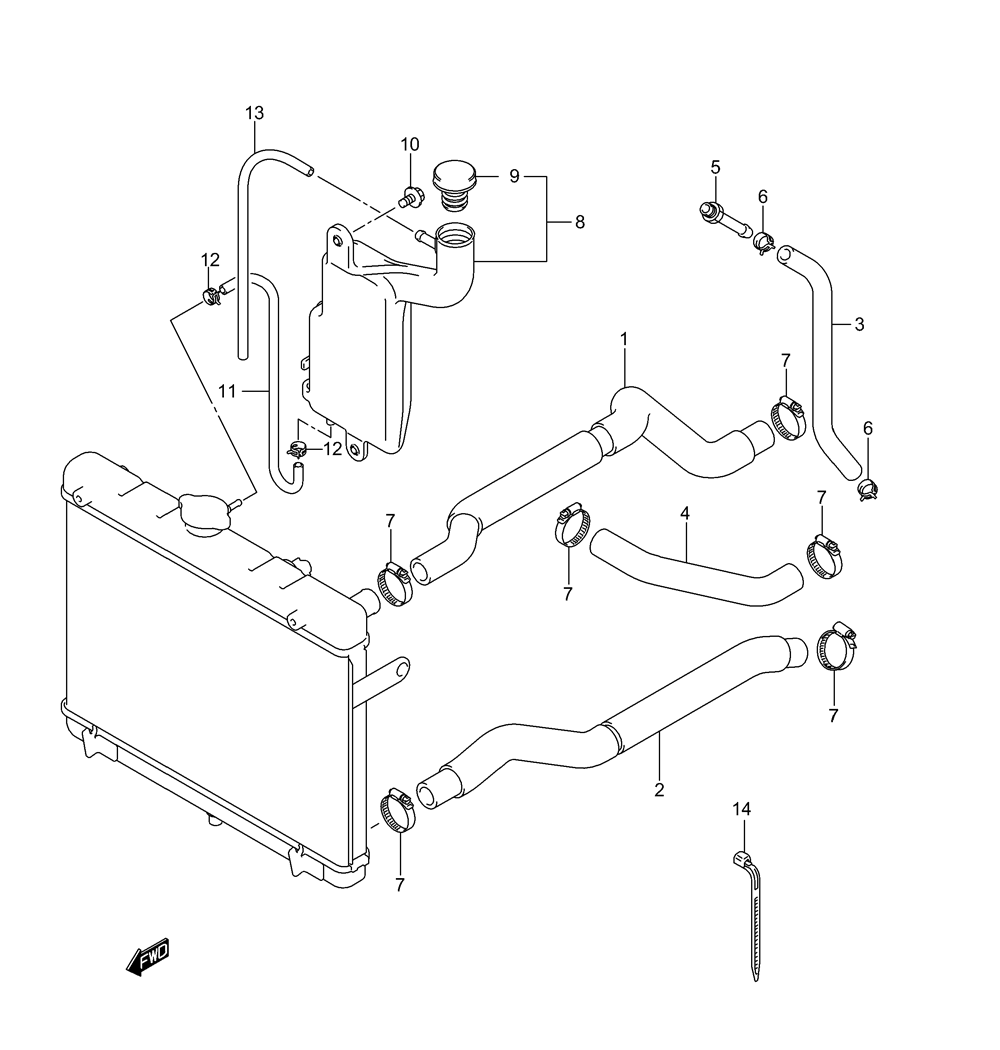

RADIATOR HOSE для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
117851-31G00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-31G00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317854-24F00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
417854-31G00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
509362-09011 UNION, BYPASSUNION, BYPASS
-
609401-12409 CLIPCLIP
-
709402-32511 CLAMPCLAMP
-
817910-31G00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
917931-02FA0 CAPCAP
-
1009116-06168 BOLT, 6X16BOLT, 6X16
-
1117982-18G00 HOSE, RSVR TANK INLETHOSE, RSVR TANK INLET
-
1209401-08411 CLIPCLIP
-
1309352-50901-600 HOSEHOSE
-
1409407-19401 CLAMPCLAMP
