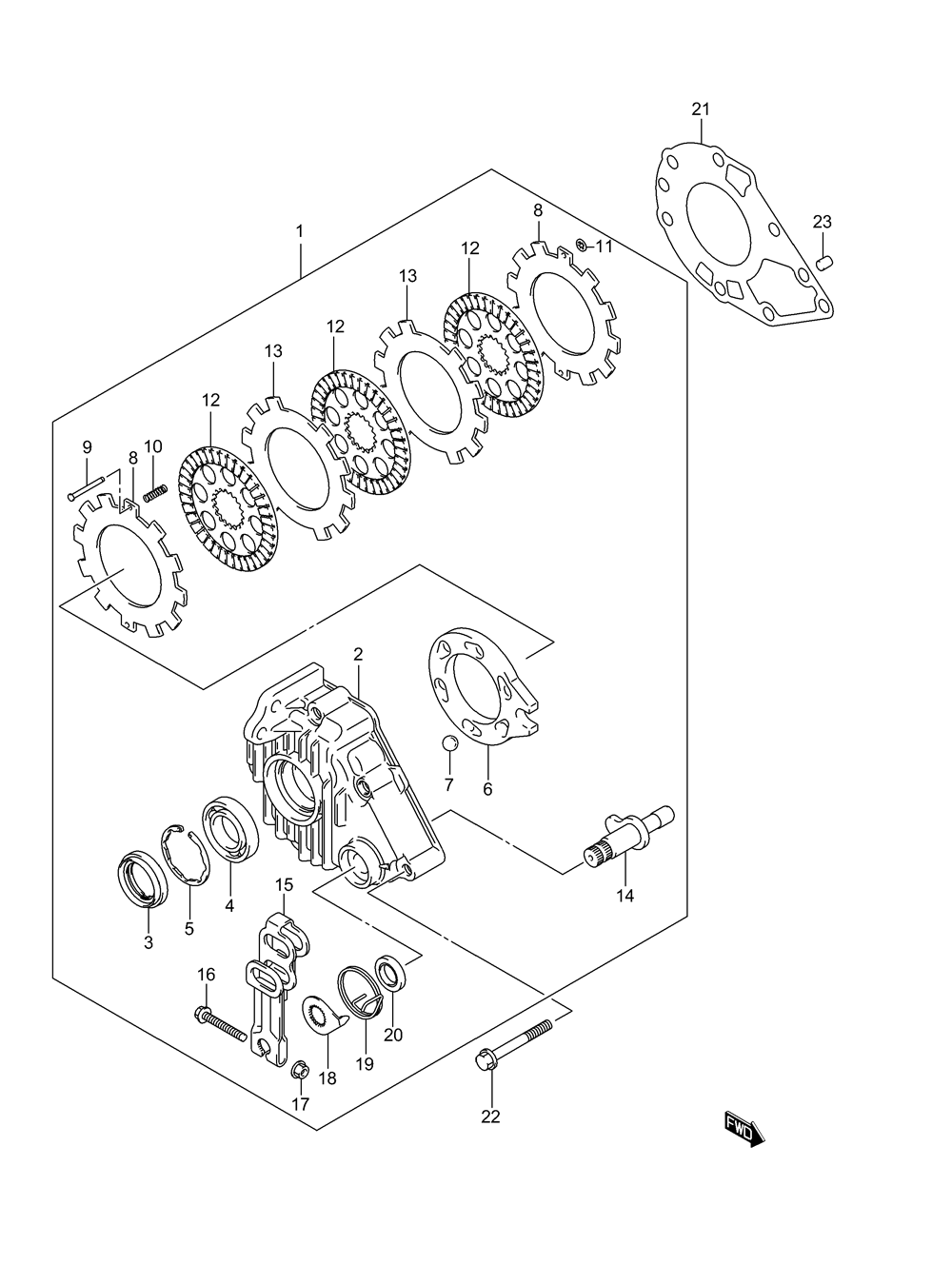

BRAKE - REAR для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
164200-31G10 BRAKE ASSY, REARBRAKE ASSY, REAR
-
264290-31G00 CASE, REAR BRAKECASE, REAR BRAKE
-
309283-34008 SEAL, REAR BRAKE CASESEAL, REAR BRAKE CASE
-
408113-60050 BEARINGBEARING
-
564215-31G00 CIRCLIP, REAR BRAKE CASECIRCLIP, REAR BRAKE CASE
-
664292-31G00 PLATE, PRESSUREPLATE, PRESSURE
-
764295-31G00 BALLBALL
-
864293-31G00 PLATE, SIDEPLATE, SIDE
-
964297-31G00 PIN, SIDE PLATEPIN, SIDE PLATE
-
1064296-31G00 SPRING, SIDE PLATESPRING, SIDE PLATE
-
1164298-31G00 NUT, SIDE PLATENUT, SIDE PLATE
-
1264420-31G00 PLATE, FRICTIONPLATE, FRICTION
-
1364294-31G00 PLATE, SEPARATORPLATE, SEPARATOR
-
1464440-31G00 CAM, REAR BRAKECAM, REAR BRAKE
-
1564451-31G00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1664455-31G00 BOLT, REAR BRAKE CAM LEVERBOLT, REAR BRAKE CAM LEVER
-
1764456-31G00 NUT, REAR BRAKE CAM LEVERNUT, REAR BRAKE CAM LEVER
-
1864492-31G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
1964484-31G00 SPRING, REAR BRAKE CAM LEVERSPRING, REAR BRAKE CAM LEVER
-
2064443-31G00 SEAL, REAR BRAKE CAMSEAL, REAR BRAKE CAM
-
2164124-31G00 GASKET, REAR BRAKE CASEGASKET, REAR BRAKE CASE
-
2209103-08332 BOLT, REAR BRAKE CASEBOLT, REAR BRAKE CASE
-
2309261-09002 PIN, REAR BRAKE CASE KNOCKPIN, REAR BRAKE CASE KNOCK
