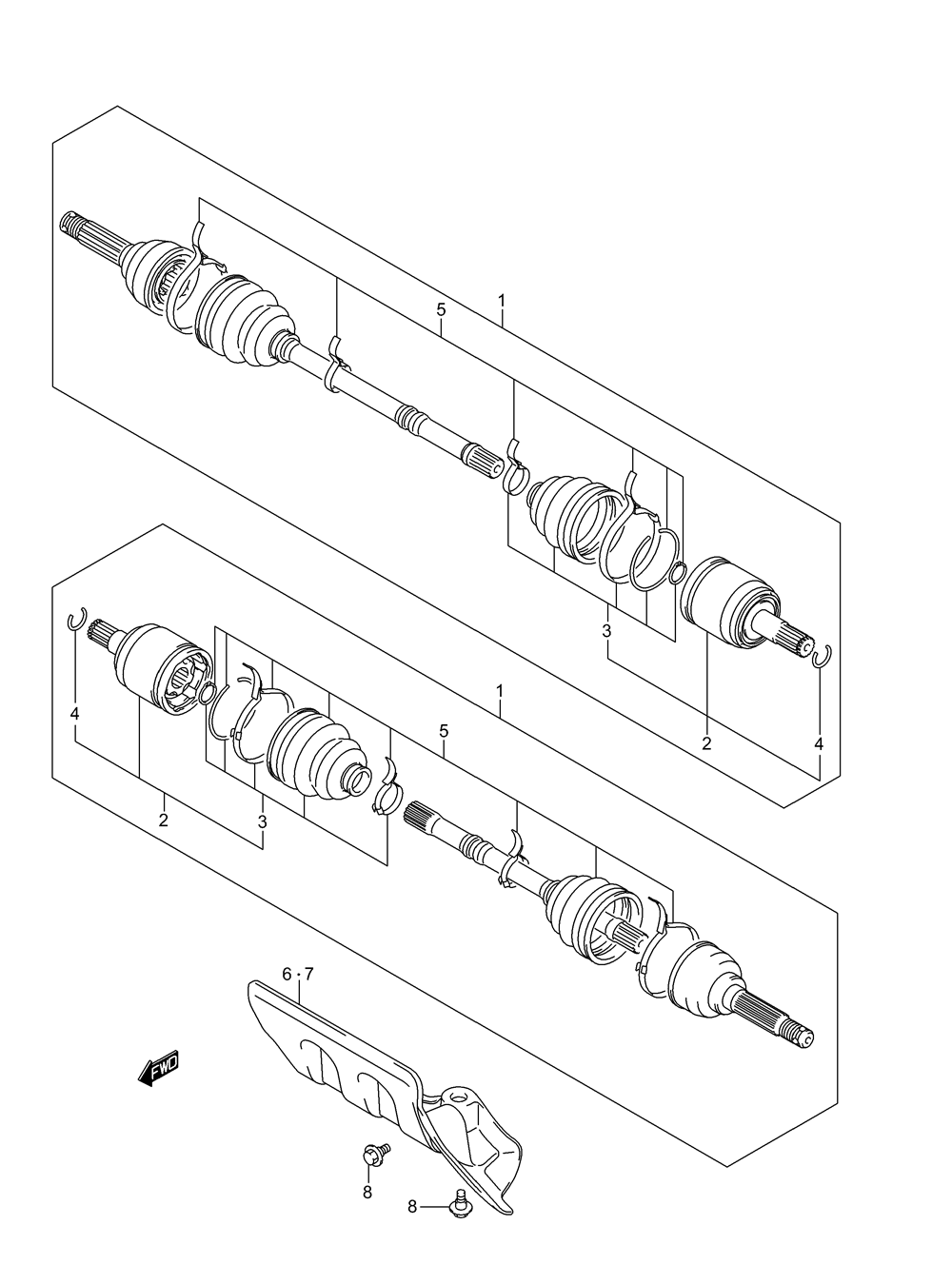

DRIVE SHAFT - FRONT для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
154901-31G12 SHAFT ASSY, FRONT DRIVESHAFT ASSY, FRONT DRIVE
-
254933-31G10 JOINT SETJOINT SET
-
354931-31G10 BOOT SET, INNERBOOT SET, INNER
-
454925-19B00 CIRCLIPCIRCLIP
-
554930-31G10 BOOT SET, OUTERBOOT SET, OUTER
-
654903-31G00 PROTECTOR, DRIVE SHAFT RIGHT HANDPROTECTOR, DRIVE SHAFT RIGHT HAND
-
754904-31G00 PROTECTOR, DRIVE SHAFT LEFT HANDPROTECTOR, DRIVE SHAFT LEFT HAND
-
809111-06063 BOLTBOLT
