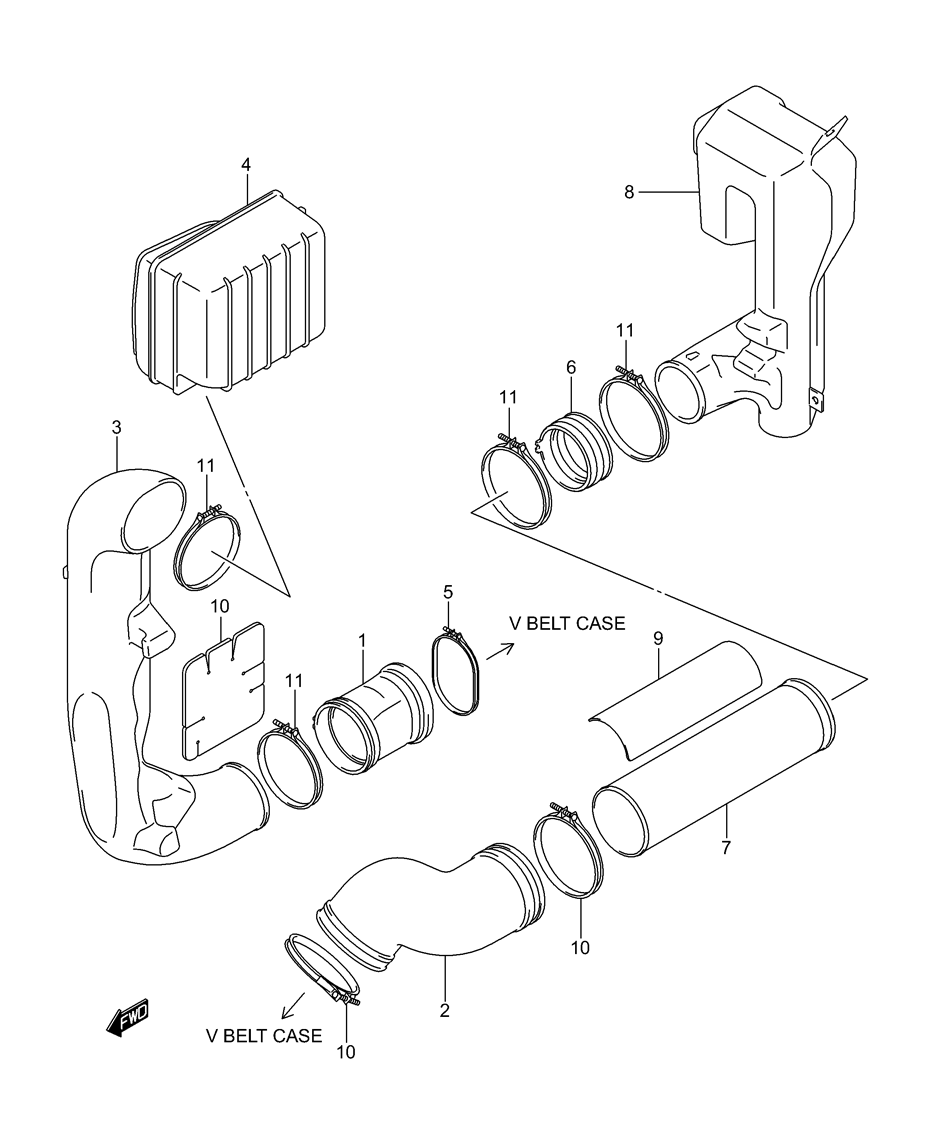

COOLING DUCTS для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска
-
№АртикулНазвание
-
111385-31G00 CONNECTOR, COOLING DUCT FRONTCONNECTOR, COOLING DUCT FRONT
-
211386-31G00 CONNECTOR, COOLING DUCT REARCONNECTOR, COOLING DUCT REAR
-
311387-31G00 DUCT, BELT COOLING FR NO.1DUCT, BELT COOLING FR NO.1
-
411388-31G00 DUCT, BELT COOLING FR NO.2DUCT, BELT COOLING FR NO.2
-
511389-09F50 CLAMP, BELT COOLING DUCT FRONTCLAMP, BELT COOLING DUCT FRONT
-
611397-31G00 CONNECTOR, COOLING DUCT REARCONNECTOR, COOLING DUCT REAR
-
711398-31G00 DUCT, BELT COOLING RR NO.1DUCT, BELT COOLING RR NO.1
-
811399-31G00 DUCT, BELT COOLING RR NO.2DUCT, BELT COOLING RR NO.2
-
911487-31G00 SHIELD, BELT COOLING DUCT REARSHIELD, BELT COOLING DUCT REAR
-
1011488-31G00 SHIELD, BELT COOLING DUCT FRONTSHIELD, BELT COOLING DUCT FRONT
-
1109402-82202 CLAMPCLAMP
