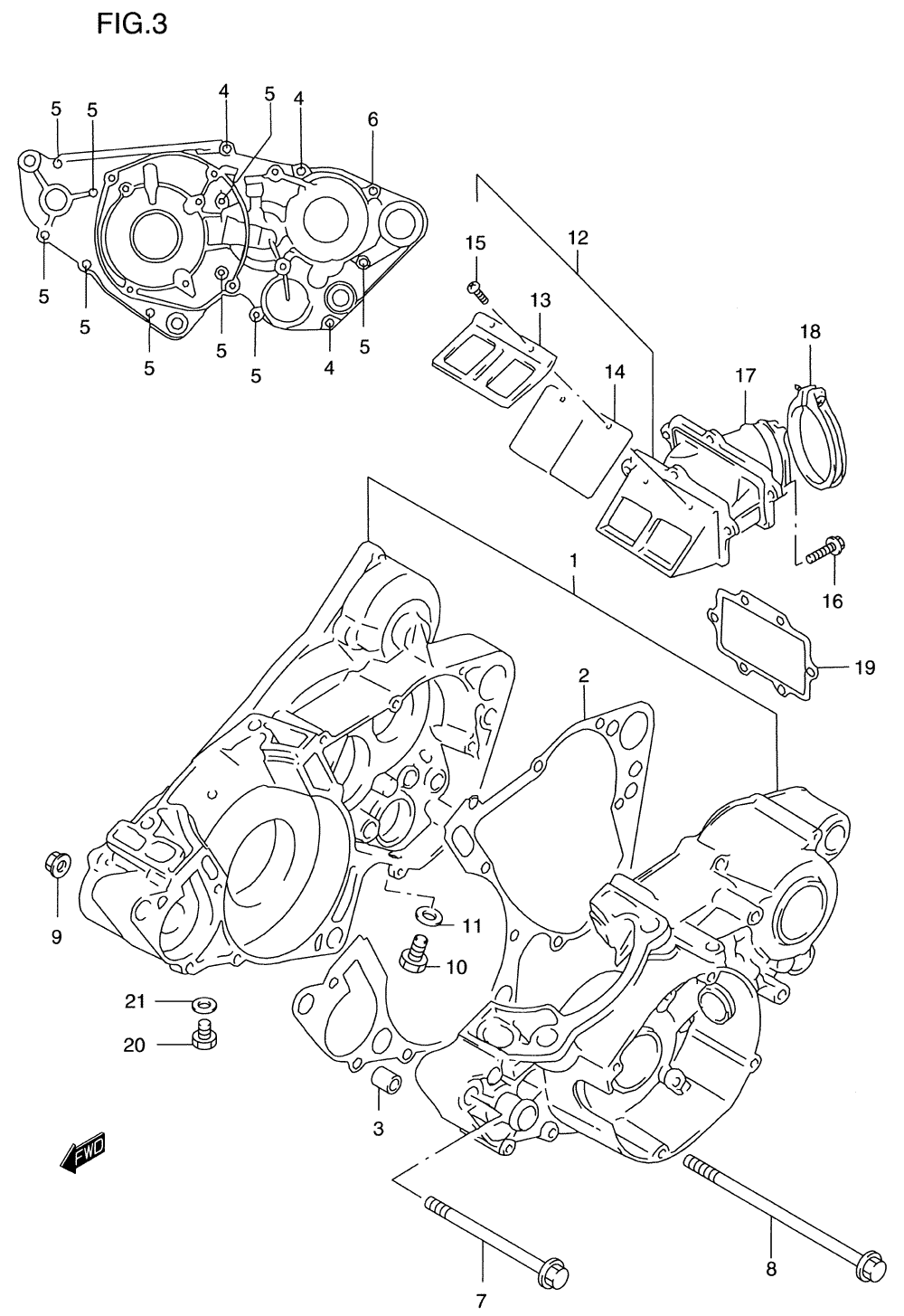

CRANKCASE для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-511300-37840 CRANKCASE SETCRANKCASE SET
-
2-211481-37E30 ...GASKET, CRANKCASE...GASKET, CRANKCASE
-
309206-13017 ...PIN...PIN
-
401547-06403 ...BOLT...BOLT
-
501547-06503 ...BOLT...BOLT
-
601547-06653 ...BOLT...BOLT
-
709103-10087 BOLT (10X105)BOLT (10X105)
-
809103-10119 BOLT (10X140)BOLT (10X140)
-
909159-10060 NUTNUT
-
1001500-12163 PLUG, DRAINPLUG, DRAIN
-
1109168-12002 GASKETGASKET
-
12-213150-37E10 VALVE ASSY, REEDVALVE ASSY, REED
-
13-213152-37E10 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
1413153-37E00 ...VALVE, REED...VALVE, REED
-
1502112-33083 ...SCREW...SCREW
-
16-201547-06203 BOLTBOLT
-
17-213110-37E20 PIPE, INTAKEPIPE, INTAKE
-
18-209402-56208 CLAMPCLAMP
-
1913156-37E10 GASKET, REED VALVEGASKET, REED VALVE
-
2017415-20920 BOLT, WATER PUMP DRAINBOLT, WATER PUMP DRAIN
-
2109168-08008 GASKETGASKET
