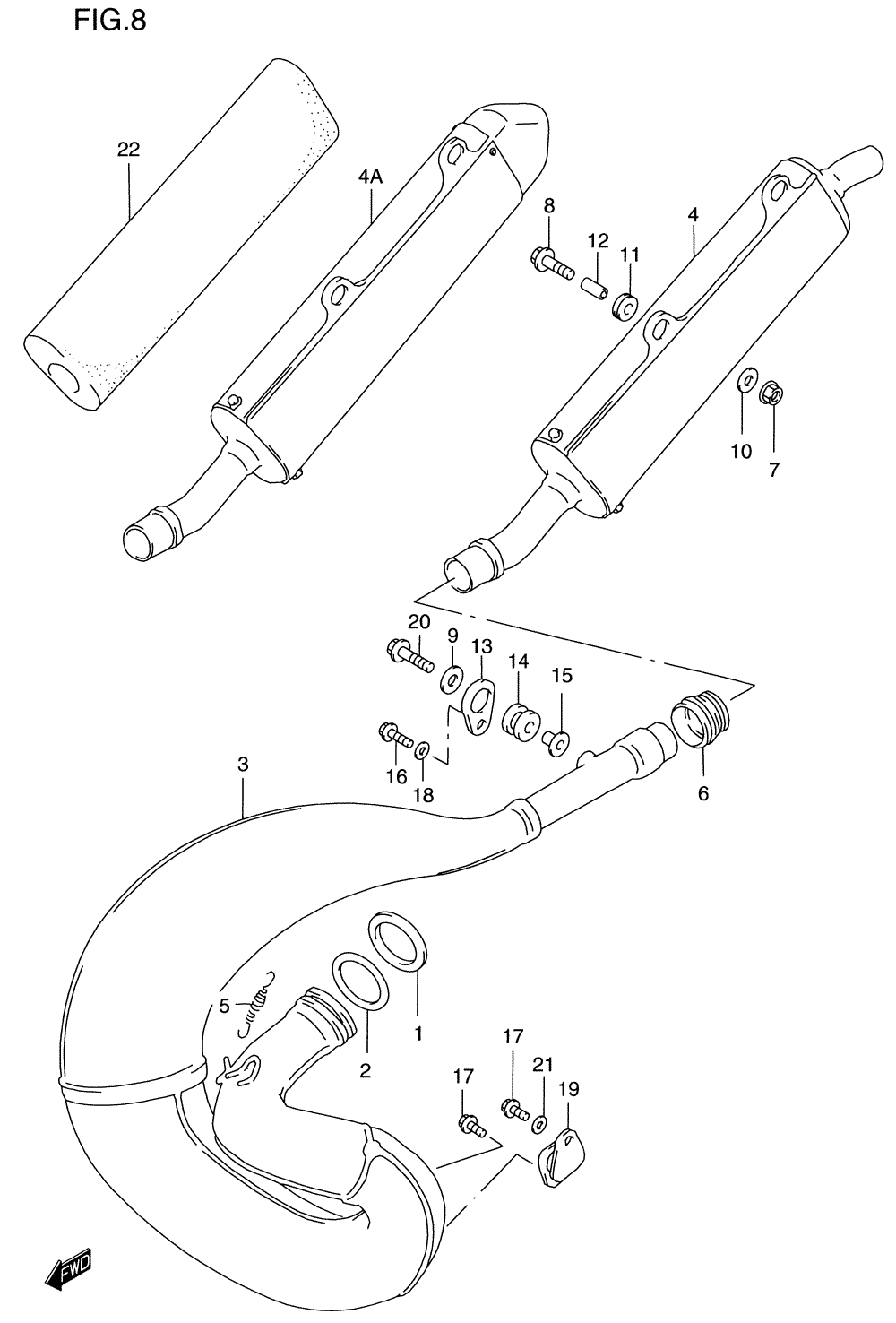

MUFFLER для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-314172-28C30 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
214171-28C30 O RING, EXHAUST PIPEO RING, EXHAUST PIPE
-
3-414310-37E30 MUFFLER, 1STMUFFLER, 1ST
-
4A-114330-37E31 MUFFLER, 2ND (US)MUFFLER, 2ND (US)
-
4A-214330-37E20 MUFFLER, 2ND (CANADA)MUFFLER, 2ND (CANADA)
-
509443-12042 SPRINGSPRING
-
614771-28C02 CONNECTOR, 2ND MUFFLERCONNECTOR, 2ND MUFFLER
-
708319-31067 NUTNUT
-
801547-06303 BOLTBOLT
-
9-209160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
10-209160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
11-209320-11015 CUSHIONCUSHION
-
1209180-06120 SPACER (6.5X11.5X12)SPACER (6.5X11.5X12)
-
1314761-27C00 PLATE, MOUNTINGPLATE, MOUNTING
-
1414762-01B01 CUSHIONCUSHION
-
1514763-36E00 SPACERSPACER
-
1601547-06253 BOLTBOLT
-
1701547-06123 BOLTBOLT
-
18-209160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1914770-20400 DAMPER, MUFFLERDAMPER, MUFFLER
-
2001547-06163 BOLTBOLT
-
21-209160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
22-214351-37E30 SILENCER, MUFFLER (OPT) (CALIFORNIA ONLY)SILENCER, MUFFLER (OPT) (CALIFORNIA ONLY)
-
22-314351-37E00 SILENCER, MUFFLER (OPT) (CANADA)SILENCER, MUFFLER (OPT) (CANADA)
