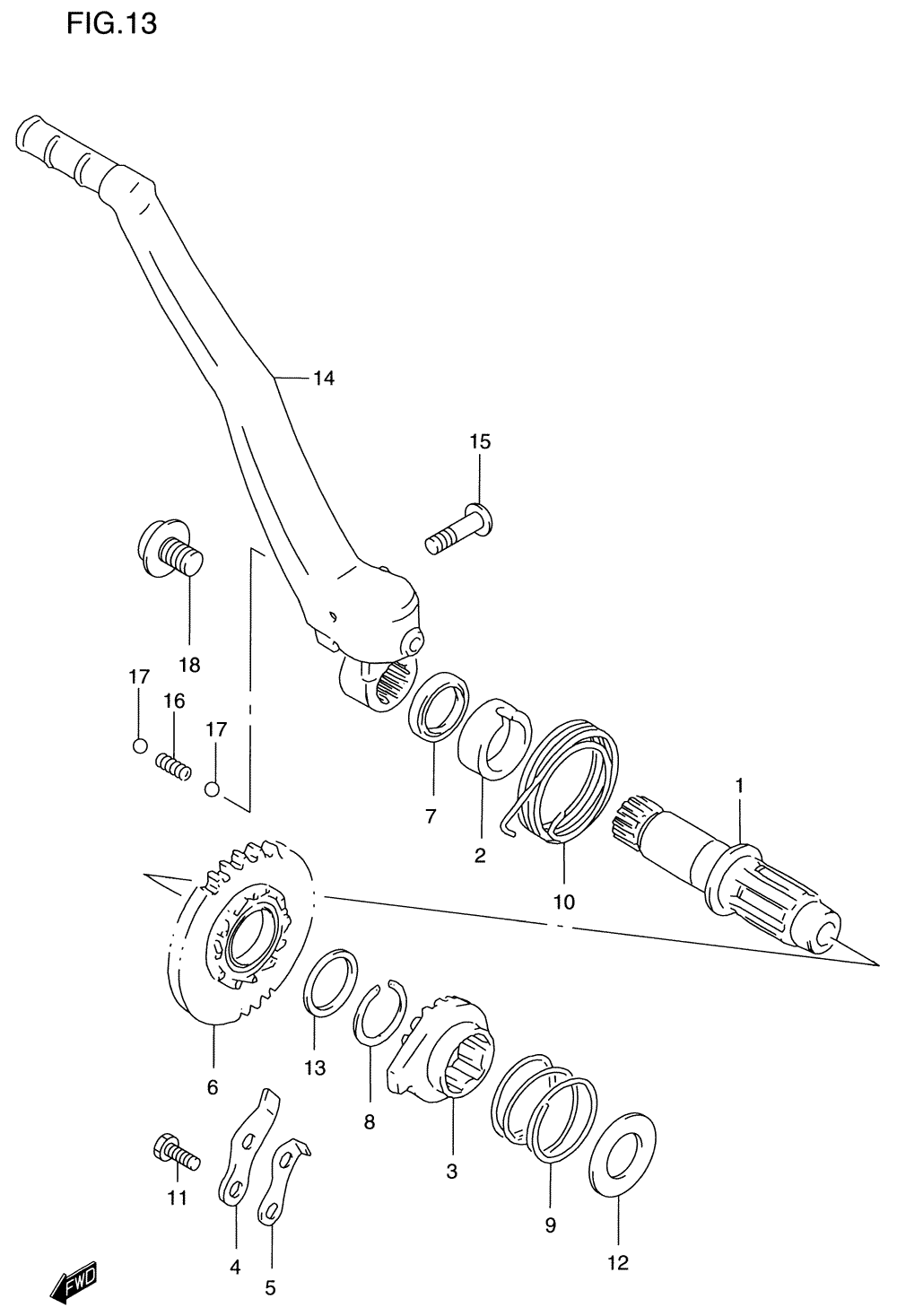

STARTER - KICK для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
126211-05D02 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-01B00 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
3-226231-28E21 STARTER, KICKSTARTER, KICK
-
426232-40200 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
5-226233-40201 STOPPER, KICK STARTERSTOPPER, KICK STARTER
-
626240-37E00 GEAR, KICK STARTER DRIVE (NT:28)GEAR, KICK STARTER DRIVE (NT:28)
-
709283-20031 SEAL, KICK SHAFT OIL (20X27X5)SEAL, KICK SHAFT OIL (20X27X5)
-
809380-22006 CIRCLIP, KICK GEARCIRCLIP, KICK GEAR
-
909440-32002 SPRING, KICK STOPPERSPRING, KICK STOPPER
-
1009448-48012 SPRING, KICK STARTER SHAFTSPRING, KICK STARTER SHAFT
-
1101500-06123 BOLT, KICK STOPPERBOLT, KICK STOPPER
-
1208211-17341 PLATE, KICK SPRINGPLATE, KICK SPRING
-
13-209181-22139 WASHER, KICK DRIVE GEAR (22X28X1.0)WASHER, KICK DRIVE GEAR (22X28X1.0)
-
14-226300-37E10 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1509127-06016 ...SCREW, KICK STARTER LEVER (6X27.5)...SCREW, KICK STARTER LEVER (6X27.5)
-
1609440-05031 ...SPRING, KICK STARTER LEVER...SPRING, KICK STARTER LEVER
-
1706111-07004 ...BALL, KICK STARTER LEVER...BALL, KICK STARTER LEVER
-
1809103-08340 BOLT, KICK STARTER LEVERBOLT, KICK STARTER LEVER
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER ASSY.
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER ASSY.
- BRAKE - REAR MASTER CYLINDER ASSY.
- BRAKE - REAR PEDAL
- CARBURETOR
- CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER W/ WATER PUMP
- CRANKSHAFT W/ PISTONS
- CYLINDER
- ELECTRICAL
- EXHAUST VALVE ASSY.
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL COCK
- FUEL TANK
- GEAR SHIFTING
- HANDLEBAR - LEVERS
- HANDLEBAR W/ CABLES
- MAGNETO
- MUFFLER
- OPTIONAL EQUIPMENT
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- RADIATOR ASSY.
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- • STARTER - KICK
- STEERING STEM
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- WHEEL - FRONT ASSY.
- WHEEL - REAR ASSY.
