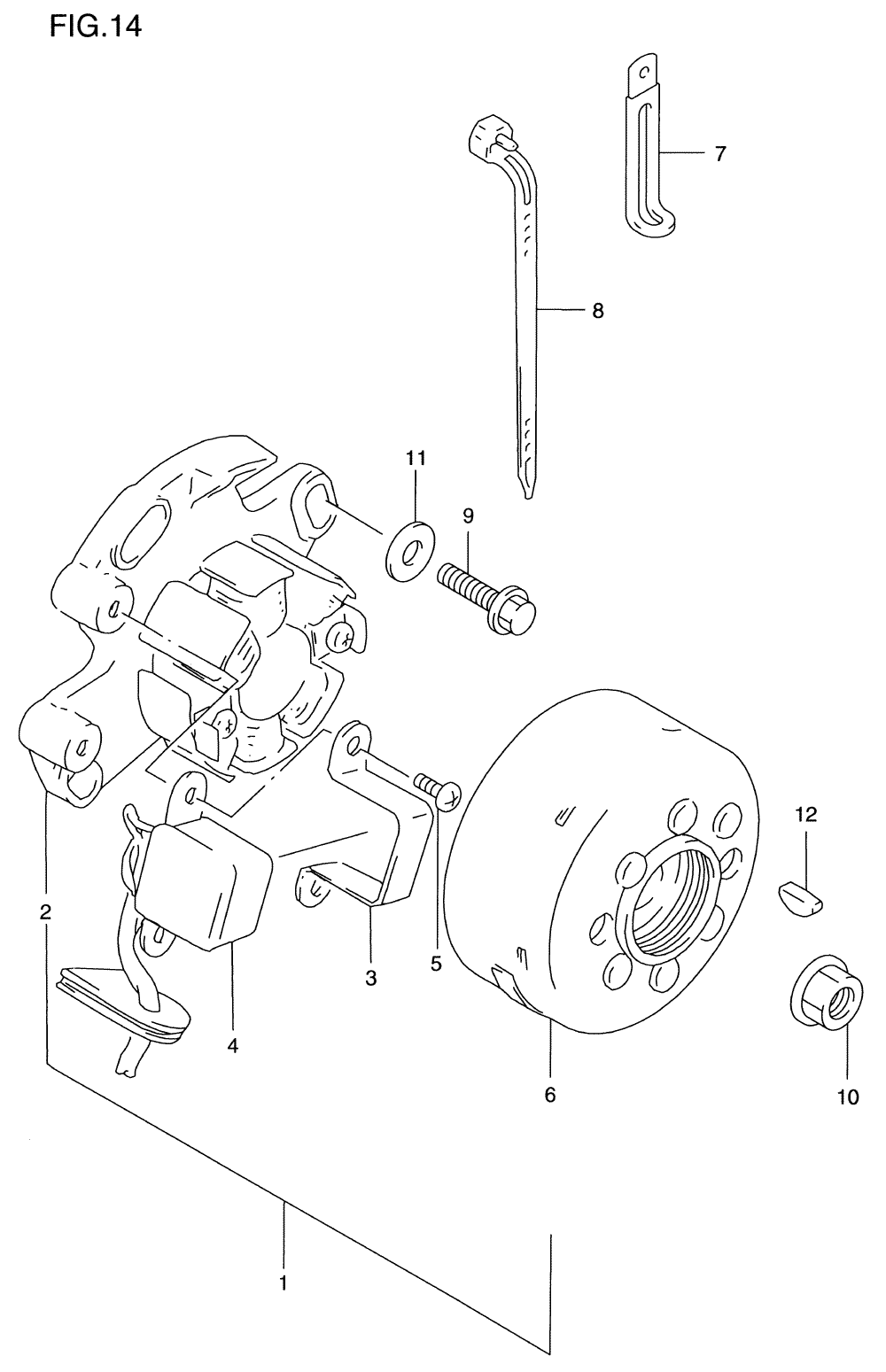

MAGNETO для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-532100-37E40 MAGNETO ASSYMAGNETO ASSY
-
2-532101-37E40 ...STATOR ASSY...STATOR ASSY
-
332157-27C01 ......HOLDER, PICK UP......HOLDER, PICK UP
-
432150-05D00 ......COIL, PICK UP......COIL, PICK UP
-
502112-75163 ......SCREW......SCREW
-
6-232102-37E10 ...ROTOR...ROTOR
-
709404-06431 CLAMP (L:65)CLAMP (L:65)
-
8-109407-18402 CLAMP (L:165)CLAMP (L:165)
-
8-209407-25401 CLAMP (L:235)CLAMP (L:235)
-
901547-06203 SCREW, MAG STATORSCREW, MAG STATOR
-
1008316-10123 NUT, MAG ROTORNUT, MAG ROTOR
-
1108322-01063 WASHERWASHER
-
1208341-31039 KEY, MAGKEY, MAG
