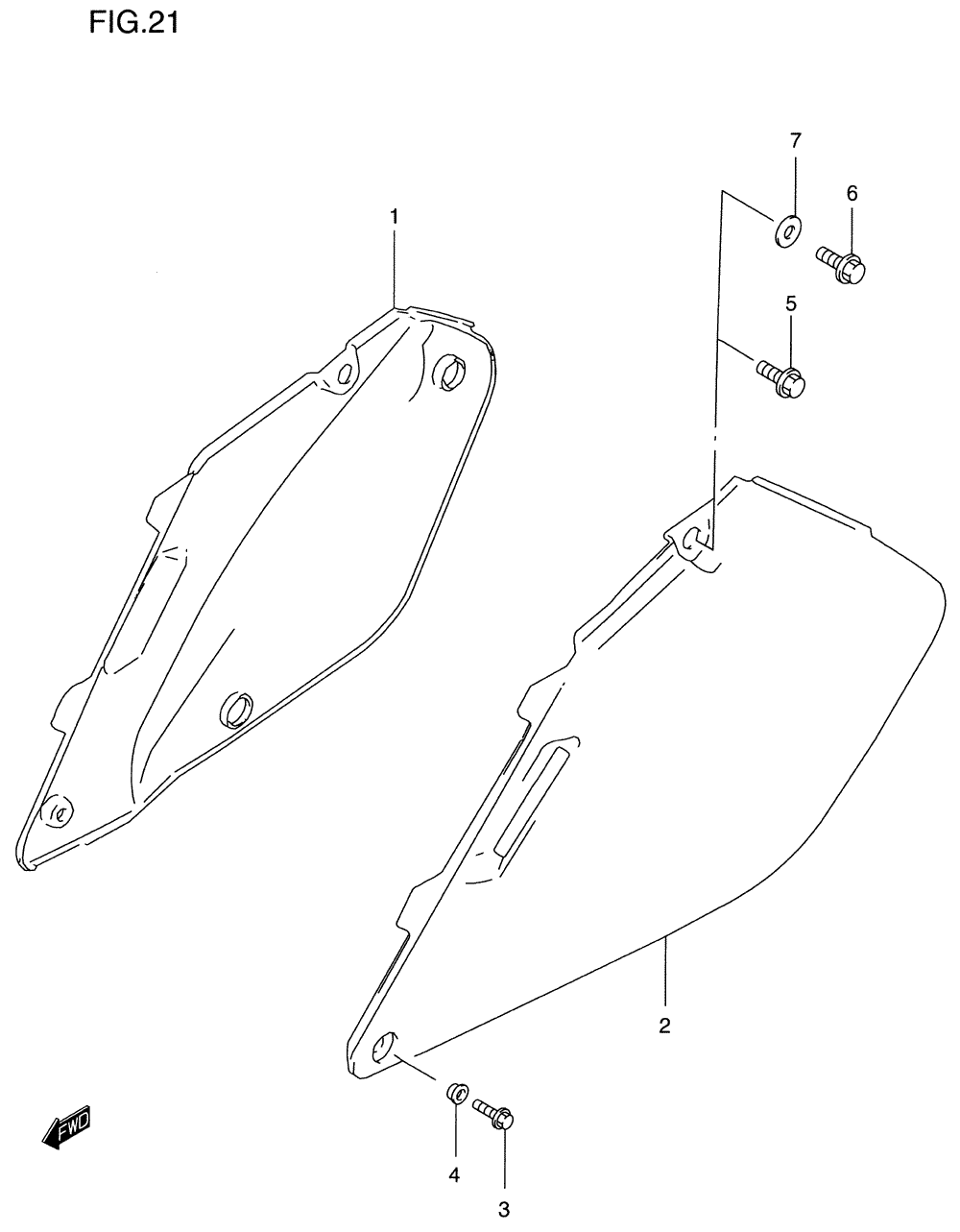

SIDE COVER для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-247111-36E01-30H COVER, FRAME (RIGHT/WHITE)COVER, FRAME (RIGHT/WHITE)
-
2-247211-36E01-30H COVER, FRAME (LEFT/WHITE)COVER, FRAME (LEFT/WHITE)
-
301547-06123 BOLT (FRONT)BOLT (FRONT)
-
409169-06054 WASHERWASHER
-
601547-06163 BOLT (REAR)BOLT (REAR)
-
709160-06124 WASHERWASHER
