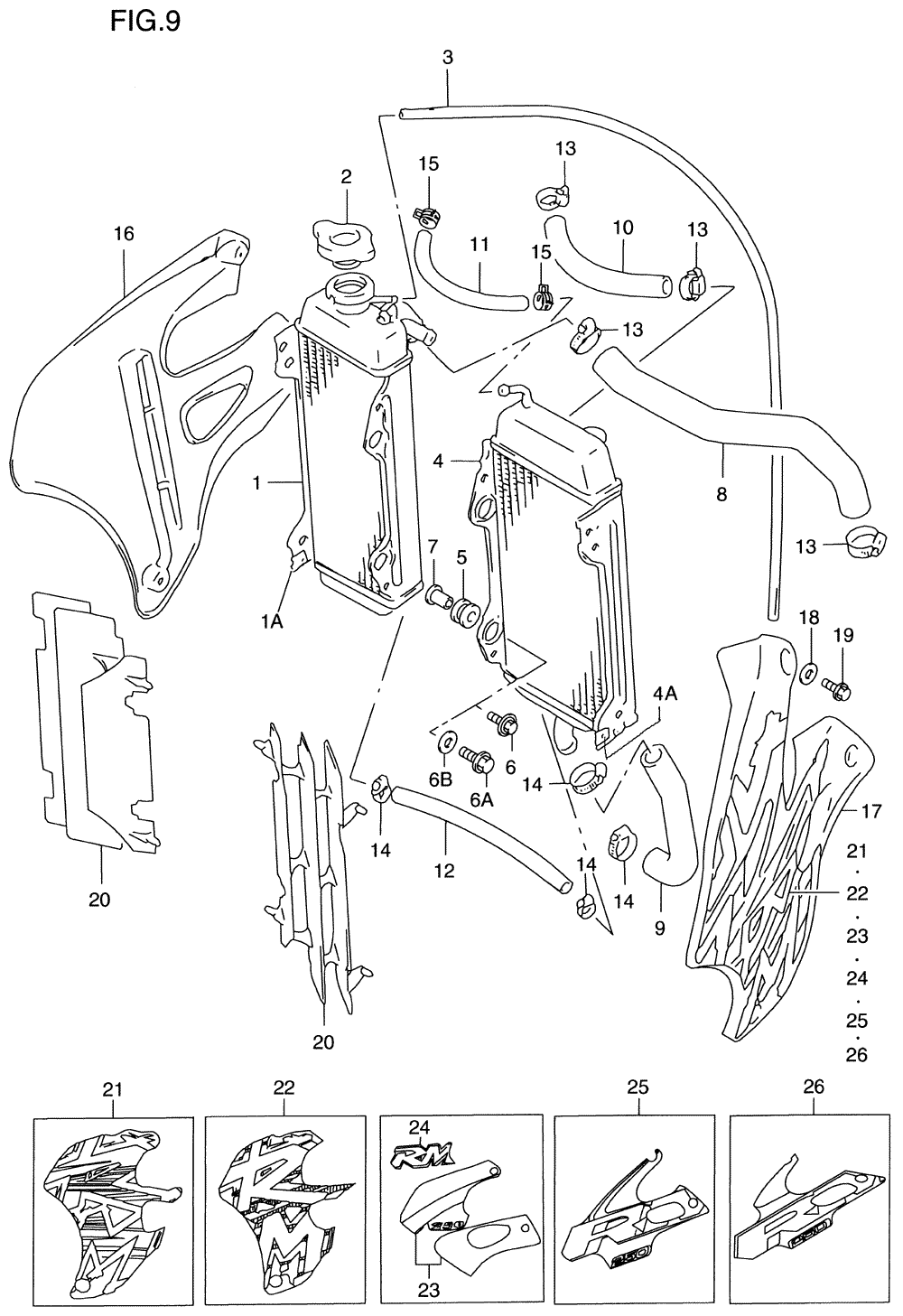

RADIATOR ASSY. для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-A09148-06015 ...NUT...NUT
-
309351-50803-00B HOSE, OVER FLOW (L:2000?650)HOSE, OVER FLOW (L:2000?650)
-
4-A09148-06015 ...NUT...NUT
-
4-217720-37E10 RADIATOR (LEFT)RADIATOR (LEFT)
-
517787-19A00 CUSHION, SUPPORTCUSHION, SUPPORT
-
6A01547-06253 BOLTBOLT
-
6B09160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
709180-06243 SPACERSPACER
-
817851-37E00 HOSE, INLETHOSE, INLET
-
917852-37E00 HOSE, OUTLETHOSE, OUTLET
-
10-217853-44E00 HOSE, JOINT NO.1HOSE, JOINT NO.1
-
1217854-37E00 HOSE, JOINT NO.2HOSE, JOINT NO.2
-
1309402-28511 CLAMPCLAMP
-
1409402-22511 CLAMPCLAMP
-
16-517761-36E11-25Y COVER, RADIATOR (RIGHT/YELLOW)COVER, RADIATOR (RIGHT/YELLOW)
-
17-517762-36E11-25Y COVER, RADIATOR (LEFT/YELLOW)COVER, RADIATOR (LEFT/YELLOW)
-
1809169-06054 WASHER, RADIATOR COVERWASHER, RADIATOR COVER
-
1901547-06123 BOLTBOLT
-
20-217831-37E11 LOUVER, RADIATORLOUVER, RADIATOR
-
26-168660-37E40-N8J TAPE, RADIATOR COVER (RIGHT)TAPE, RADIATOR COVER (RIGHT)
-
26-268670-37E40-N8J TAPE, RADIATOR COVER (LEFT)TAPE, RADIATOR COVER (LEFT)
