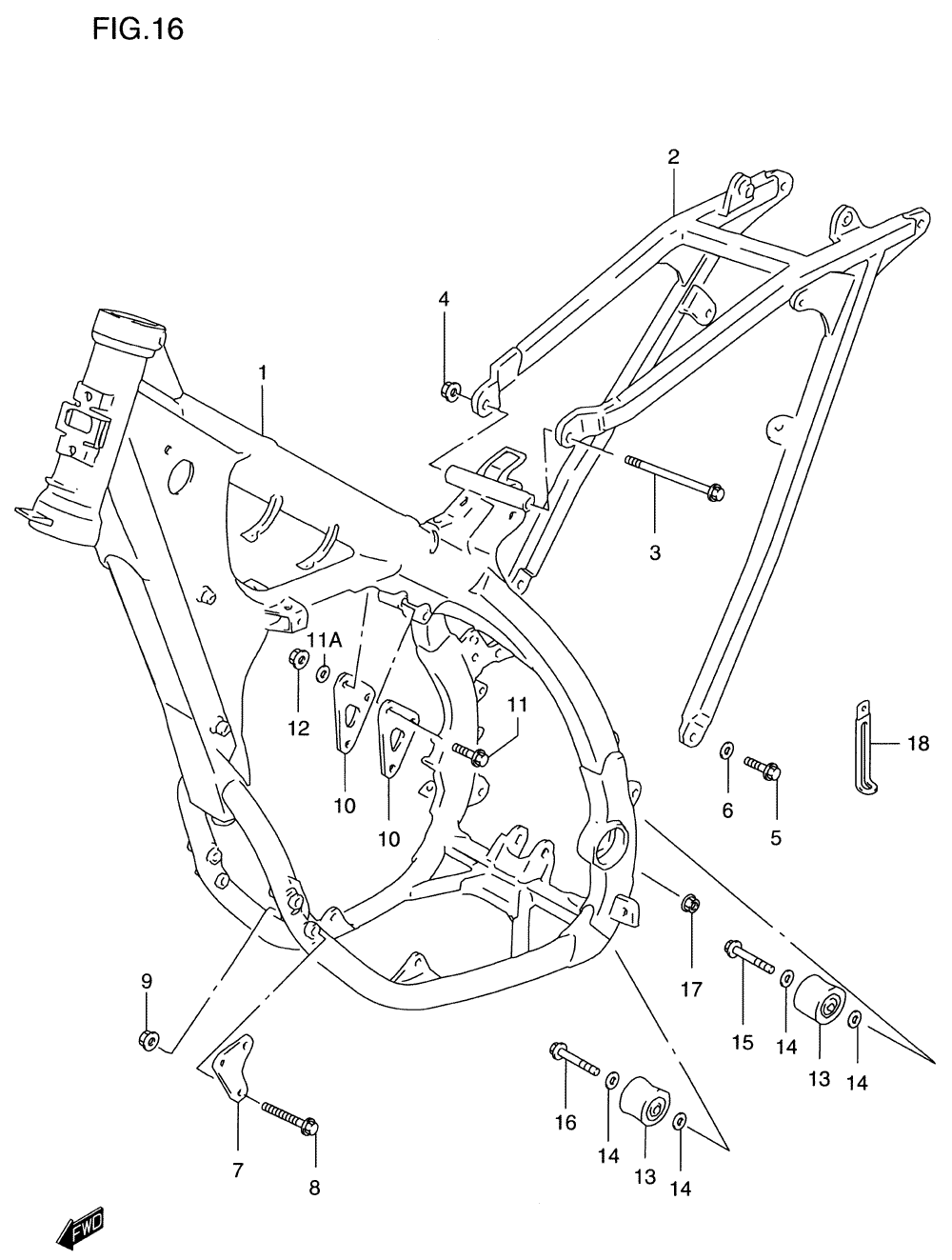

FRAME для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-541100-37E40-24K FRAME (CHARCOAL)FRAME (CHARCOAL)
-
241200-36E00 RAIL, SEATRAIL, SEAT
-
309103-08109 BOLT (UPPER)BOLT (UPPER)
-
409159-08034 NUTNUT
-
509104-08019 BOLT (LOWER)BOLT (LOWER)
-
6-209160-08122 WASHERWASHER
-
741991-37E00 PLATE, ENGINE MOUNT (FRONT)PLATE, ENGINE MOUNT (FRONT)
-
809103-08170 BOLTBOLT
-
9-209159-08067 NUTNUT
-
1041993-37E00 PLATE, ENGINE MOUNT (UPPER)PLATE, ENGINE MOUNT (UPPER)
-
1109103-08043 BOLTBOLT
-
11A09164-08011 WASHERWASHER
-
1209159-08067 NUTNUT
-
1343910-27C11 ROLLER, CHAIN CONTROLROLLER, CHAIN CONTROL
-
14-209181-08111 WASHERWASHER
-
1509103-08083 BOLT (UPPER)BOLT (UPPER)
-
1609103-08043 BOLT (LOWER)BOLT (LOWER)
-
1708319-31087 NUT (LOWER)NUT (LOWER)
-
18-209404-08206 CLAMPCLAMP
