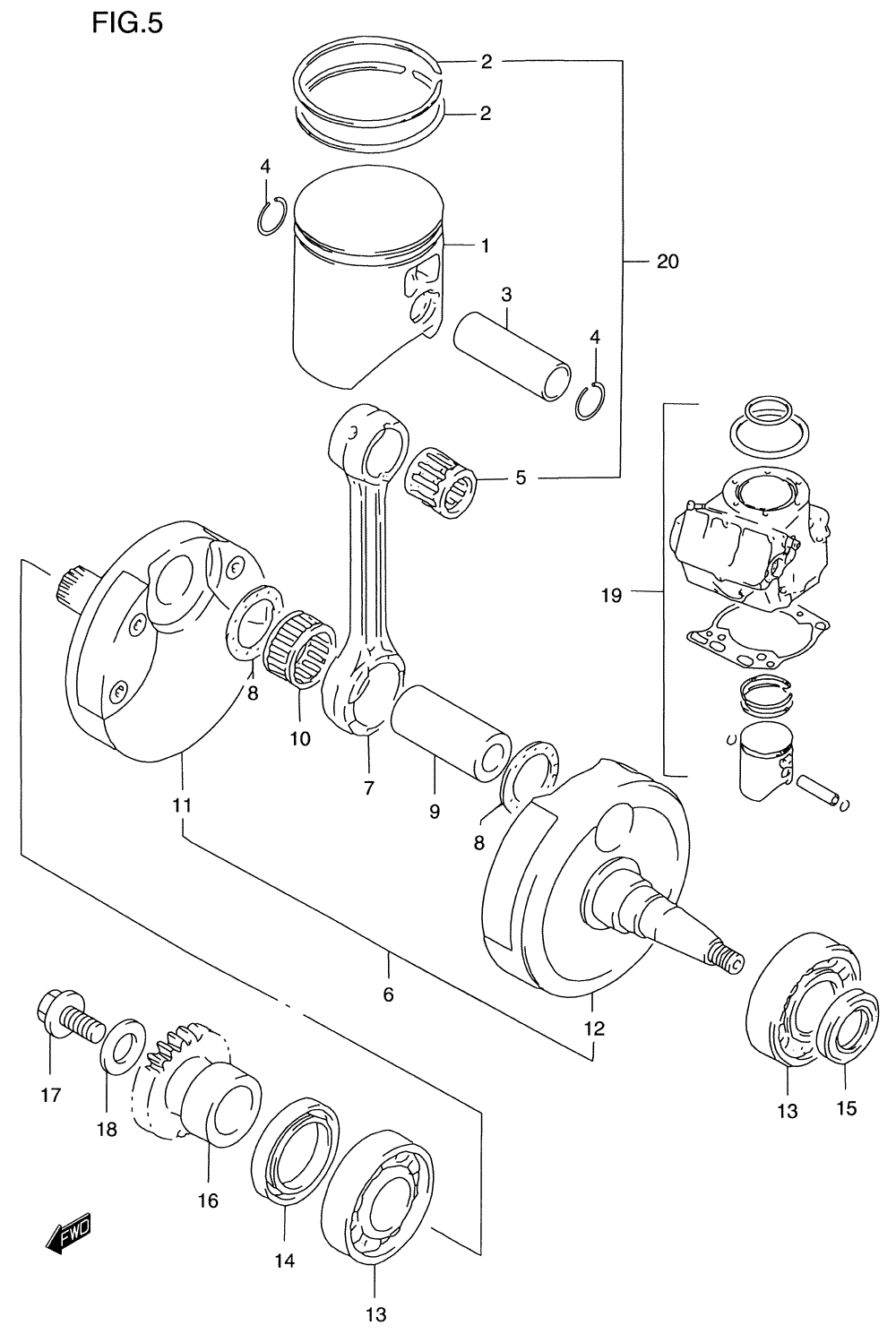

CRANKSHAFT W/ PISTONS для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
1-512110-37E40-0F0 PISTONPISTON
-
2-212141-37E01 RING, PISTONRING, PISTON
-
312151-28C00 PIN, PISTONPIN, PISTON
-
409381-18002 CIRCLIPCIRCLIP
-
509263-18016 BEARING (18X23X22)BEARING (18X23X22)
-
6-412200-37E40 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
712161-37E00 ...ROD, CONNECTING...ROD, CONNECTING
-
809160-24027 ...WASHER...WASHER
-
912211-05D00 ...PIN, CRANK...PIN, CRANK
-
1009263-24026 ...BEARING (24X30X20)...BEARING (24X30X20)
-
11-412220-37E40 ...CRANKSHAFT (RIGHT)...CRANKSHAFT (RIGHT)
-
12-412260-37E40 ...CRANKSHAFT (LEFT)...CRANKSHAFT (LEFT)
-
1309262-28027 BEARING (28X68X18)BEARING (28X68X18)
-
1409283-38021 OIL SEAL (RIGHT) (38X52X8)OIL SEAL (RIGHT) (38X52X8)
-
1509283-25099 OIL SEAL (LEFT) (25X37X6)OIL SEAL (LEFT) (25X37X6)
-
16-221111-37E02 GEAR, PRIMARY DRIVE (NT:21)GEAR, PRIMARY DRIVE (NT:21)
-
1721141-27C11 BOLT, PRIMARY DRIVE GEARBOLT, PRIMARY DRIVE GEAR
-
1809164-11004 WASHERWASHER
-
19-512101-37870 TOP END KIT, ENGINE (OPT) (US)TOP END KIT, ENGINE (OPT) (US)
-
20-512101-37880 PISTON KIT (OPT) (CANADA)PISTON KIT (OPT) (CANADA)
