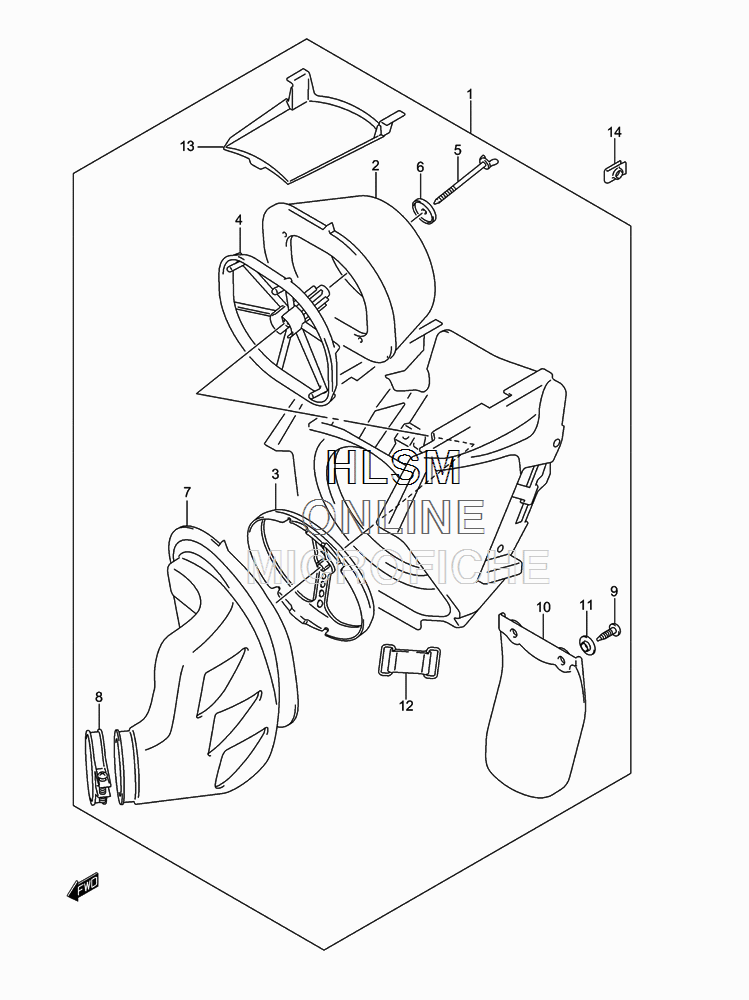

AIR CLEANER для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
113700-37F01 CLEANER ASSY, AIR (INCL. 2-13)CLEANER ASSY, AIR (INCL. 2-13)
-
213780-36E20 FILTER ASSYFILTER ASSY
-
313790-36E00 BASE, FILTERBASE, FILTER
-
413791-36E00 HOLDER, FILTERHOLDER, FILTER
-
513831-37E20 BOLT, WINGBOLT, WING
-
613792-13A01 WASHERWASHER
-
713881-37F00 TUBE, OUTLETTUBE, OUTLET
-
809402-70203 CLAMPCLAMP
-
913831-35F00 SCREW, TAPPINGSCREW, TAPPING
-
1013738-36E01 MUD GUARDMUD GUARD
-
1113838-02B00 COLLAR, MUD GUARDCOLLAR, MUD GUARD
-
1232942-14111 BAND, CDI UNITBAND, CDI UNIT
-
1313741-37F02 CAP, CLEANERCAP, CLEANER
-
1471812-82010 NUT, CLEANERNUT, CLEANER
