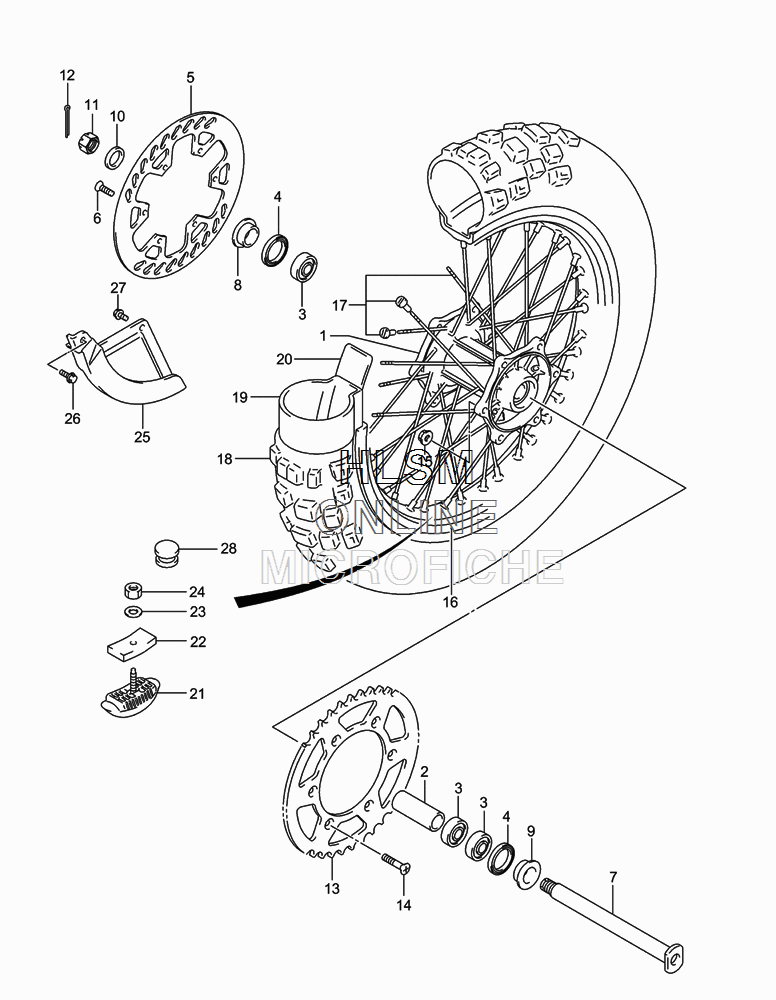

WHEEL - REAR для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
164111-36E00 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-36E00 SPACER, BEARING (22.5X30X102)SPACER, BEARING (22.5X30X102)
-
309262-22033 BEARING (22X44X12)BEARING (22X44X12)
-
409283-30023 SEAL, DUST (30X44X7)SEAL, DUST (30X44X7)
-
569211-37F00 DISC, REAR BRAKEDISC, REAR BRAKE
-
609120-06011 SCREW (6X17.5)SCREW (6X17.5)
-
764711-37F10 AXLE, REARAXLE, REAR
-
864751-36E00 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
964751-36E00 SPACER, LEFT HANDSPACER, LEFT HAND
-
1009160-19022 WASHERWASHER
-
1108314-40183 NUTNUT
-
1204111-40308 PIN, COTTERPIN, COTTER
-
1364511-28E00 SPROCKET, REAR (NT:49)SPROCKET, REAR (NT:49)
-
1364511-36E00 SPROCKET, REAR (NT:50) (OPT)SPROCKET, REAR (NT:50) (OPT)
-
1364511-37E00 SPROCKET, REAR (NT:48) (OPT)SPROCKET, REAR (NT:48) (OPT)
-
1364511-40261 SPROCKET, REAR (NT:51) (OPT)SPROCKET, REAR (NT:51) (OPT)
-
1409120-08010 SCREW (8X30.5)SCREW (8X30.5)
-
1509159-08067 NUTNUT
-
1665311-37E00 RIM, REAR WHEEL (2.15X19)RIM, REAR WHEEL (2.15X19)
-
1765320-37F00 SPOKE SET, WHEELSPOKE SET, WHEEL
-
1865110-37E10 TIRE, REAR (110/90-19) (BRIDGESTONE)TIRE, REAR (110/90-19) (BRIDGESTONE)
-
1965200-28C20 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2065261-28C20 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2165270-28E00 STOPPER, BEADSTOPPER, BEAD
-
2265271-27C00 CUSHION, BEAD STOPPERCUSHION, BEAD STOPPER
-
2308322-01083 WASHERWASHER
-
2408310-00083 NUTNUT
-
2569231-36E00 COVER, REAR DISCCOVER, REAR DISC
-
2601550-06203 BOLT, FRONTBOLT, FRONT
-
2701550-06123 BOLT, REARBOLT, REAR
-
2809250-08013 CAPCAP
