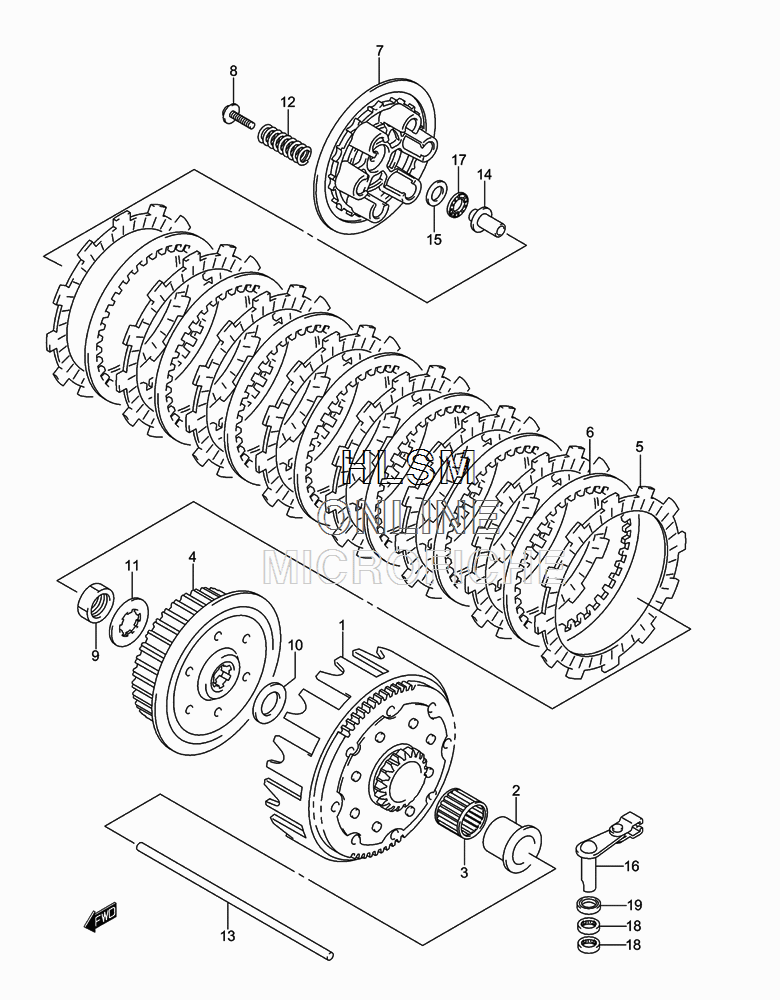

CLUTCH для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
121200-37E02 GEAR ASSY, PRIMARY DRIVEN NT:63/21GEAR ASSY, PRIMARY DRIVEN NT:63/21
-
221251-37E00 SPACER, PRIMARY DRIVEN GEARSPACER, PRIMARY DRIVEN GEAR
-
309263-29009 BEARING, PRIMARY DRIVEN 29X34X27BEARING, PRIMARY DRIVEN 29X34X27
-
421410-37E10 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521441-37E20 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
621451-37F00 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
721462-37E02 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
809116-05019 BOLT, CLUTCH (5X25)BOLT, CLUTCH (5X25)
-
909140-18013 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1009160-22067 WASHER, CLUTCH HUB THR 22X38X2WASHER, CLUTCH HUB THR 22X38X2
-
1109167-22021 WASHER, CLUTCH HUB THR 22X42X0.8WASHER, CLUTCH HUB THR 22X42X0.8
-
1209440-18030 SPRING, CLUTCHSPRING, CLUTCH
-
1323110-37F00 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1423121-37F00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1509181-10186 SHIM (10X20X0.50)SHIM (10X20X0.50)
-
1623200-37E01 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
1709263-10002 BEARING, CLUTCH RELEASE 10.1X22X2.8BEARING, CLUTCH RELEASE 10.1X22X2.8
-
1809263-12024 BEARING, NO.2BEARING, NO.2
-
1909285-12004 SEAL, CL RELEASE CAMSHAFT 12X19X5SEAL, CL RELEASE CAMSHAFT 12X19X5
